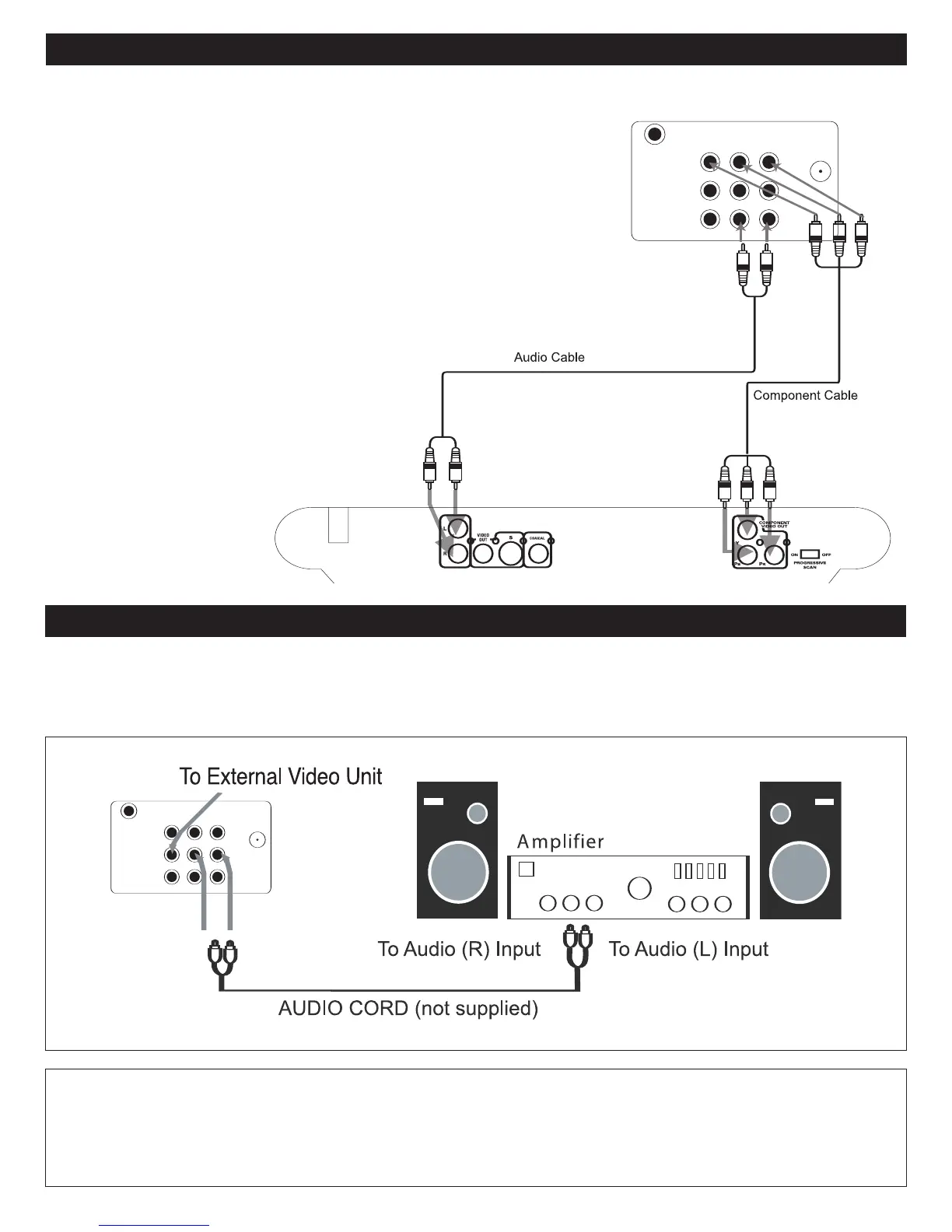

CONNECTION USING THE COMPONENT Y/CB/CR JACKS
1
. Connect the cable, satellite or incoming antenna
to the VHF/UHF IN jack on the rear of the
external unit, such as a VCR or a second DVD
player.
2. Connect the left and right audio cable from the
external unit’s Audio OUT jacks to this unit’s
AUDIO 2 IN jacks.
3. Connect the external unit’s Component Video
OUT jacks to this unit’s COMPONENT IN Jacks
(Y/CB/CR).
4. Press the TV/AV button until DVD appears on
the TV screen.
NOTE: Connect the DVD player to this unit with the
component in jacks for best results, otherwise use
the Video 2 in jack.
CONNECTION FROM AN EXTERNAL UNIT (CONTINUED)
CONNECTION TO AN EXTERNAL UNIT
CONNECTION USING THE AUDIO/VIDEO OUT JACKS:
Follow the instructions below to connect an external audio and video unit. This will output the sound from the unit into the
external audio unit’s speakers.
1. Connect the left and right audio cable from the Amplifier’s Audio IN jacks to this unit’s AUDIO OUT jacks.
2. If desired, connect an external unit’s video IN jack to this unit’s VIDEO OUT jack.
VCR (or second DVD)

Memorex MVD1402 Specifications

General

Brand	Memorex
Model	MVD1402
Category	TV DVD Combo
Language	English
