Memorex MVD1402 - Location of Controls; Front Panel Controls; Rear Panel Connections

1 432 5 6 7
FRONT
1. TV/DVD Button
2. Channel +/– Buttons
3. Volume +/– Buttons
4. STOP Button
5. DVD Tray OPEN/
CLOSE Button
6. MENU Button
7. PLAY Button
8. Disc Tray
9. Remote Sensor
10. AUDIO 1 Right IN
Jack
11. AUDIO 1 Left
(Mono) IN Jack
12. VIDEO 1 IN Jack
13. Headphone Jack
14. POWER Button
15. POWER Indicator
REAR
1. COAXIAL Output
Jack
2.
COMPONENT IN
Jacks (Y/CB/CR)
3. VIDEO Output Jack
4. VIDEO 2 IN Jack
5. Stereo AUDIO 2
Left/Right IN Jacks
6. AUDIO OUT Jacks
7. TV Antenna Jack
6

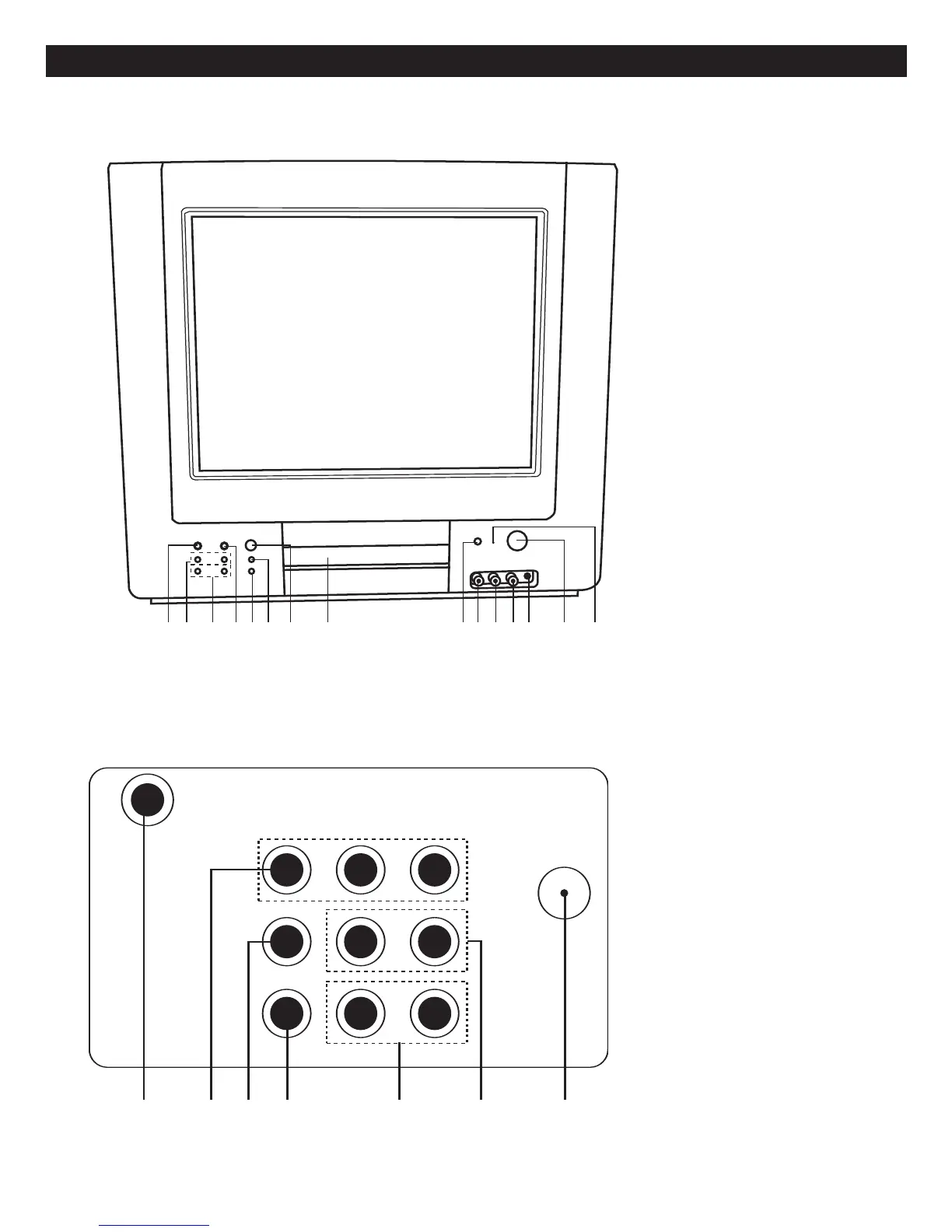

LOCATION OF CONTROLS
FRONT
321 4 5 6 7 8 9 1110 1213 14 15
REAR PANEL
