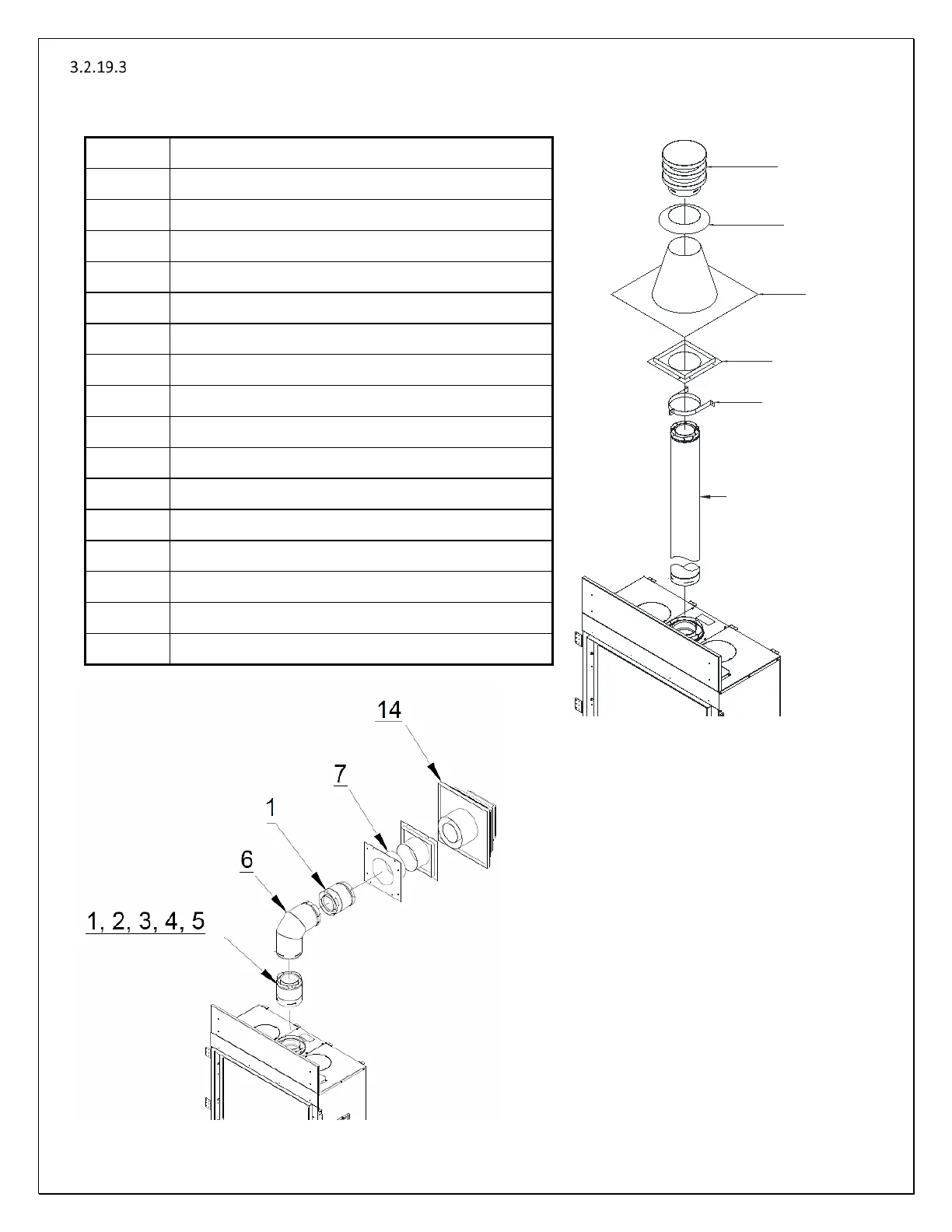

Flue Venting Components Identification Diagrams
Prior to installing at altitudes higher than 7500, please contact the Mendota technical service department for specific
venting requirements and venting restrictions.
ITEM
DESCRIPTION
1
6" or 7” PIPE (DuraVent 6”/Amerivent 7”), 9”, 12”
2
12" VENT STACK
3
24" VENT STACK
4
36" VENT STACK
5
48" VENT STACK
6
90 DEG. GALVANIZED ELBOW
6a 45 DEG. GALVANIZED ELBOW
7 ADJUSTABLE WALL THIMBLE
8 ATTIC INSULATION SHIELD 12"
9 ROOF FLASHING (0/12 TO 6/12)
10 ROOF FLASHING (7/12 TO 12/12)
11 STORM COLLAR
12
VERTICAL VENT CAP
13
SUPPORT BAND
14
HORIZONTAL VENT CAP
15
FIRE STOP SPACER
1,2,3,4,5
13
15
9,10
11
12
12” Minimum
Vertical Required
