Mendota FV48 - Page 40

85-03-01194 FV48 Page 40

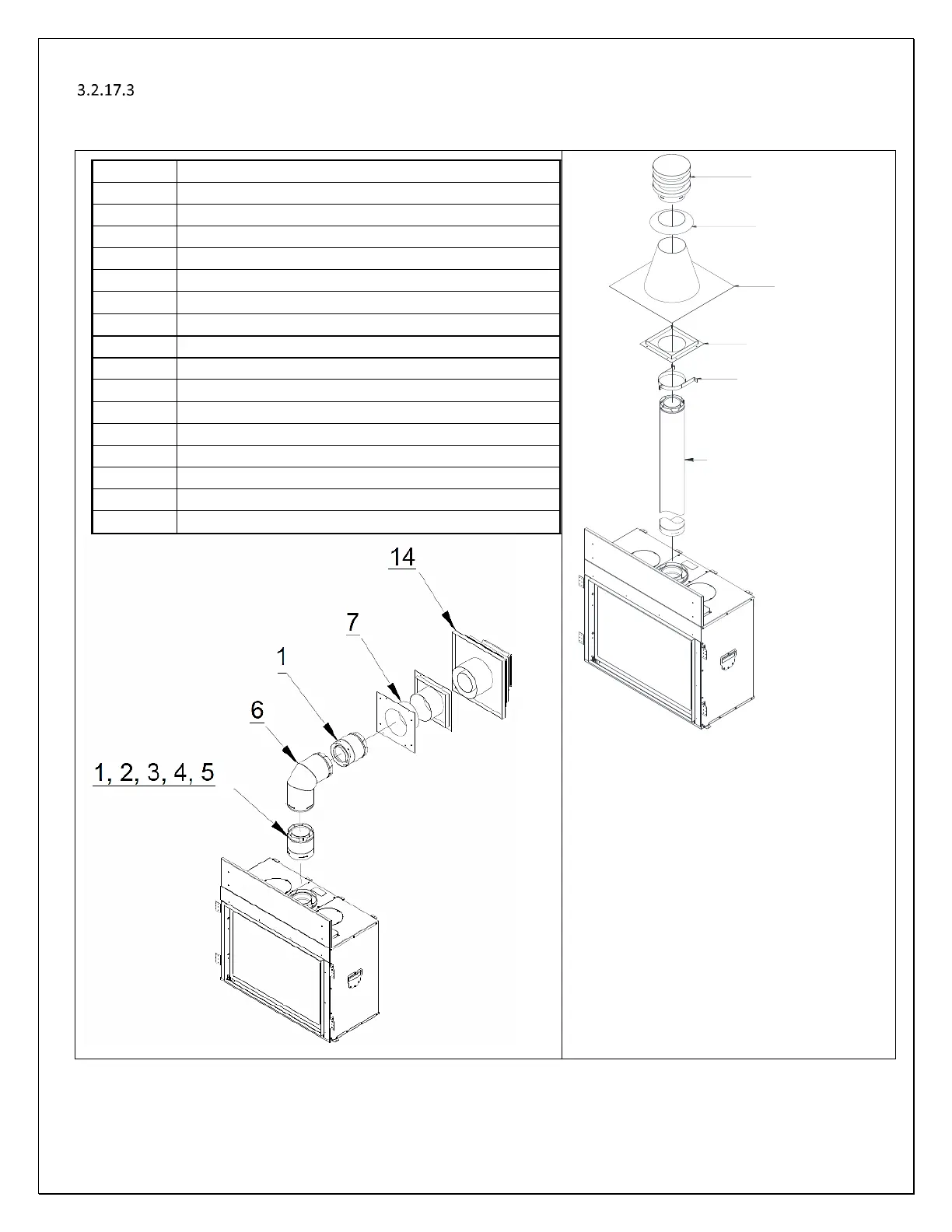

Flue Venting Components Identification Diagrams
Prior to installing at altitudes higher than 7500, please contact the Mendota technical service department for specific
venting requirements and venting restrictions.
ITEM
DESCRIPTION
1
6" or 7” PIPE (DuraVent 6”/Amerivent 7”), 9”, 12”
2
12" VENT STACK
3
24" VENT STACK
4
36" VENT STACK
5
48" VENT STACK
6
90ºGALVANIZED ELBOW
6a
45º GALVANIZED ELBOW
7
ADJUSTABLE WALL THIMBLE
8
ATTIC INSULATION SHIELD 12"
9
ROOF FLASHING (0/12 TO 6/12)
10
ROOF FLASHING (7/12 TO 12/12)
11
STORM COLLAR
12
VERTICAL VENT CAP
13
SUPPORT BAND
14
HORIZONTAL VENT CAP
15
FIRE STOP SPACER
1,2,3,4,5
13
15
9,10
11
12
