Menvier Security TS790+ - XNode Layout

System Installation TS790+ & TS900+ Installation Manual
12
A B F G
A B F G
A B C D E
AUX 12V
500mA
REMOTE
500mA
AUX 12V
AUX 12V SPEAKER
OUTPUT MODULE
REMOTE ZONE
ENABLE
SPEAKER
VOLUME
NODE I/D
JP5
JP4
ZA
ZH
ZGZF
ZE
ZC ZDZB
CIRCUIT A
CIRCUIT H
CIRCUIT G
CIRCUIT FCIRCUIT E
CIRCUIT C CIRCUIT DCIRCUIT B
TA
TH
TG
TF
TE
TC TDTB
JP5 FITTED =
NO TAMPER
Output module
connector
Fit jumper-link
to disable
tamper switch
Tamper switch
I/D selector
(1-5 for TS900+)
Programmable
detection
circuits A - D
Node type
From previous
XNode or panel
Control panel mains
power indicator:
On = mains on
Flashing = mains off
Auxiliary 12V output
(for powering detectors)
Auxiliary 12V output
Programmable outputs:
A = 100mA switched +ve
B = 100mA switched -ve
To next XNode
Programmable
detection
circuits E - H
Auxiliary 12V
fuse (500mA)
2
4
6
8
10
TS2500
TS2500
TS900
TS900
14
16
12
3
5
7
9
13
15
11
1
2431
A B
O/P
NODE
NETWORK IN
NODE
NETWORK OUT
REMOTE KEYPAD NETWORK
+
+
-
--
-
+
+

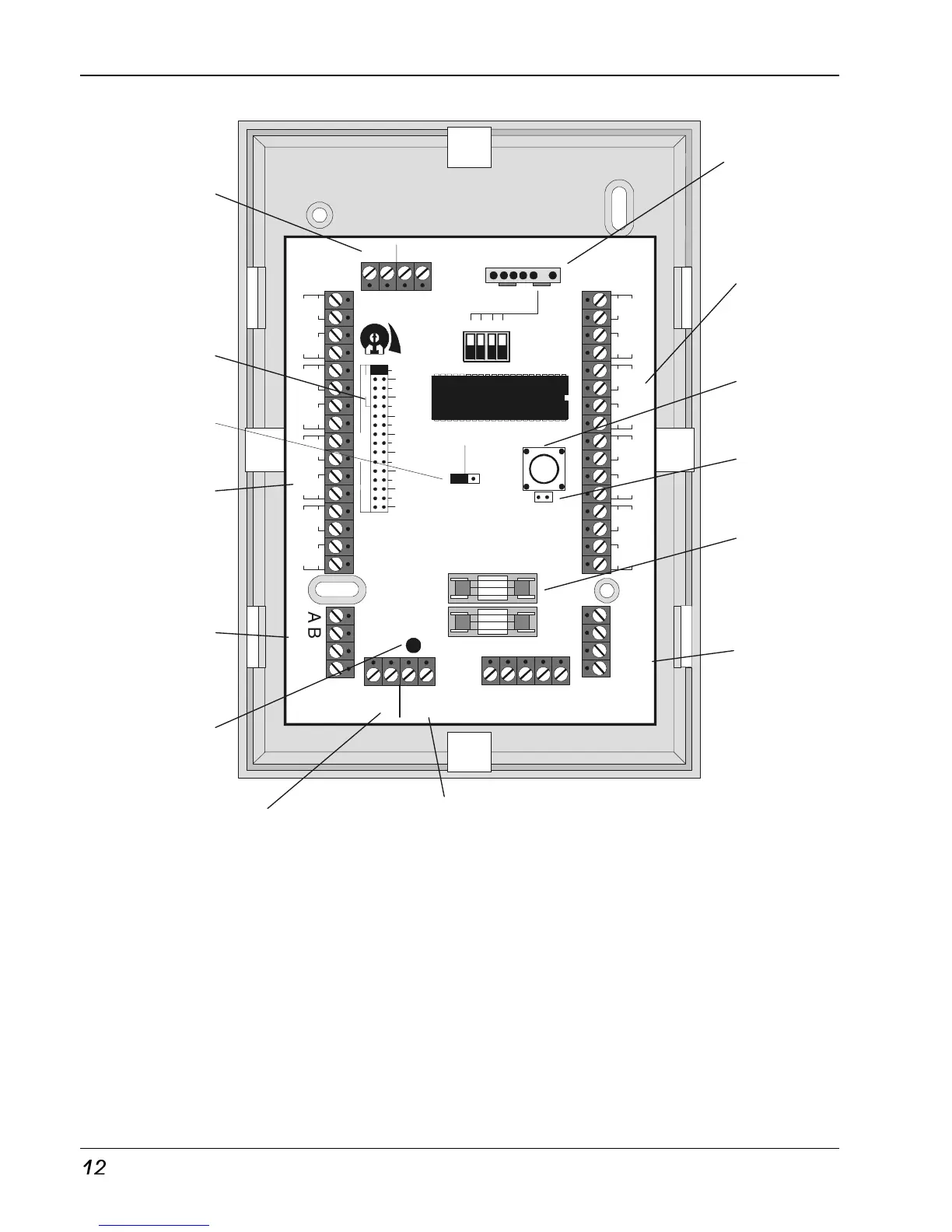

Figure 11. Xnode Layout
