System Installation TS790+ & TS900+ Installation Manual
20
Programmable Outputs
The TS790+/900+ has many programmable
outputs which can be used to drive relays, LED’s
etc. Each output can be programmed for a
different function, see "Programmable Output
Types" on page 25.

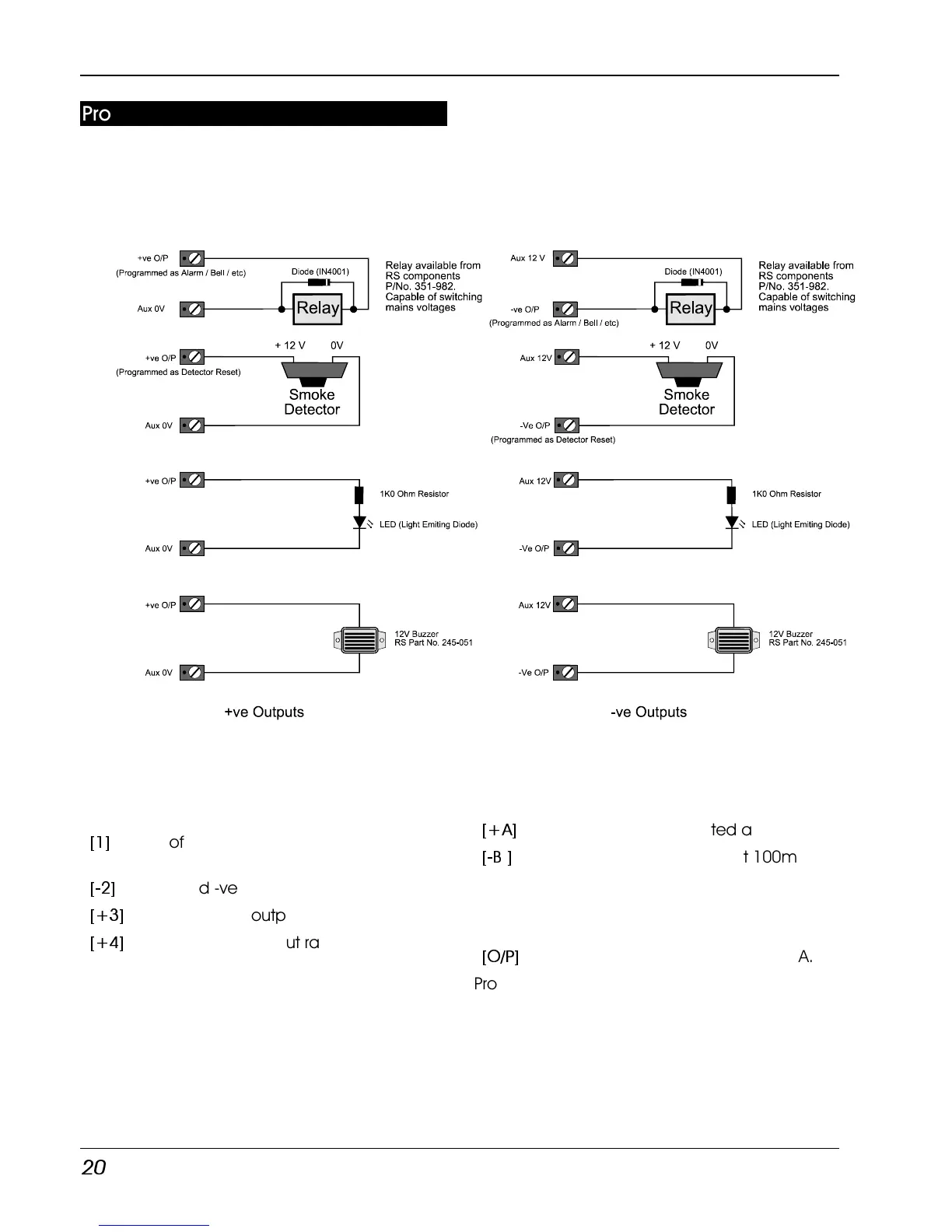

Figure 24.. Output Examples
Control Panel Outputs
The control panel has four programmable
outputs:
[1]
Set of voltage free changeover
contacts rated at 1 Amp.
[-2]
Switched -ve output rated at 500mA.
[+3]
Switched +ve output rated at 500mA.
[+4]
Switched +ve output rated at 500mA.
XNode Outputs
Each XNode has two programmable outputs:
[+A]
Switched +ve output rated at 100mA.
[-B ]
Switched -ve output rated at 100mA.
Remote Keypads & TS700.LECs
Each remote keypad and TS700 LEC has one
programmable output:
[O/P]
Switched -ve output rated at 100mA.
Program these as panel outputs 5 to 8.
