System Installation TS790+ & TS900+ Installation Manual
16

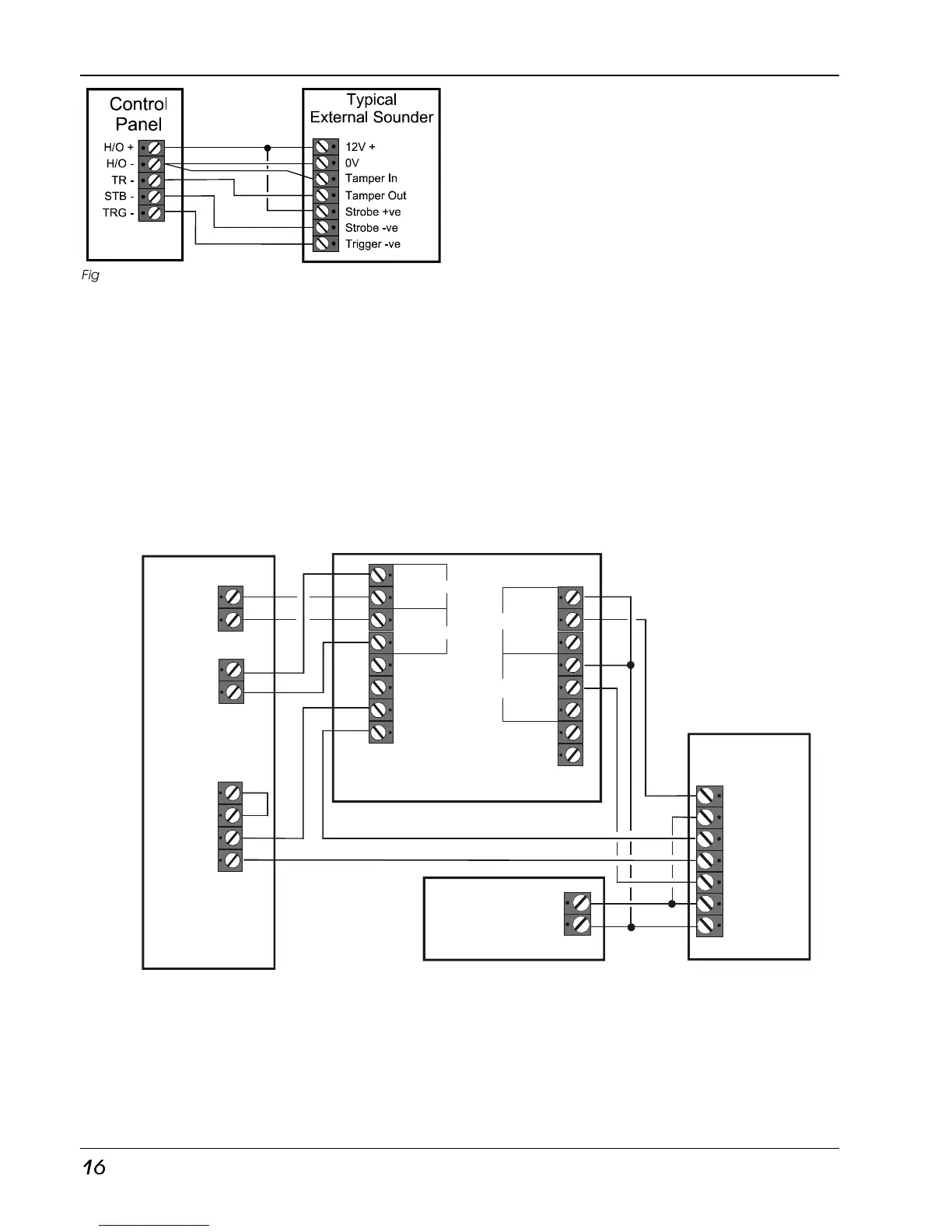

Figure 16. External Sounder Connections
Installing an External Sounder from a
XNode
The XNode has two programmable outputs,
these can be utilised to drive an external
sounder. However, it is recommended that a
remote power supply is fitted next to the XNode
in order to provide sufficient power for the
external sounder. A relay module such as the
Menvier RM3A is also required to drive the
external sounder. Figure 17 shows the
connection details.
Figure 17. External Sounders Connection -
Aux
12V
RLY 2
COIL -
COIL -
SPARE 1
SPARE 2
TAMPER
RM3A
SAB
MODULE
REMOTE
POWER
SUPPLY
XNODE
SPARE 3
SPARE 4
STROBE-
STROBE +
TAMPER OUT
TAMPER IN
TRIGGER
+12V
0V
TAMPER
CIRCUIT X
Program circuit
as: NIGHT
ZX
TX
COIL +
COIL +
RLY 2
COM
COM
N/O
N/O
N/C
N/C
RLY 1
RLY 1
12V
0V
+
-
A
+
B
-
