Merak MEP2L - TEST CALL DIAGRAM IN PROTOCOL P100; MEP2 L pick up to make test call; MEP2 L responds with its identifier in a P100 protocol type 3 frame; Test call server and MEP2 L hang up the call

22 pages

To Previous Page

MEP2L

EMERGENCY TELEPHONE FOR LIFTS

Command Manual · Voice Mode 22 de 22

TEST CALL DIAGRAM IN PROTOCOL P100

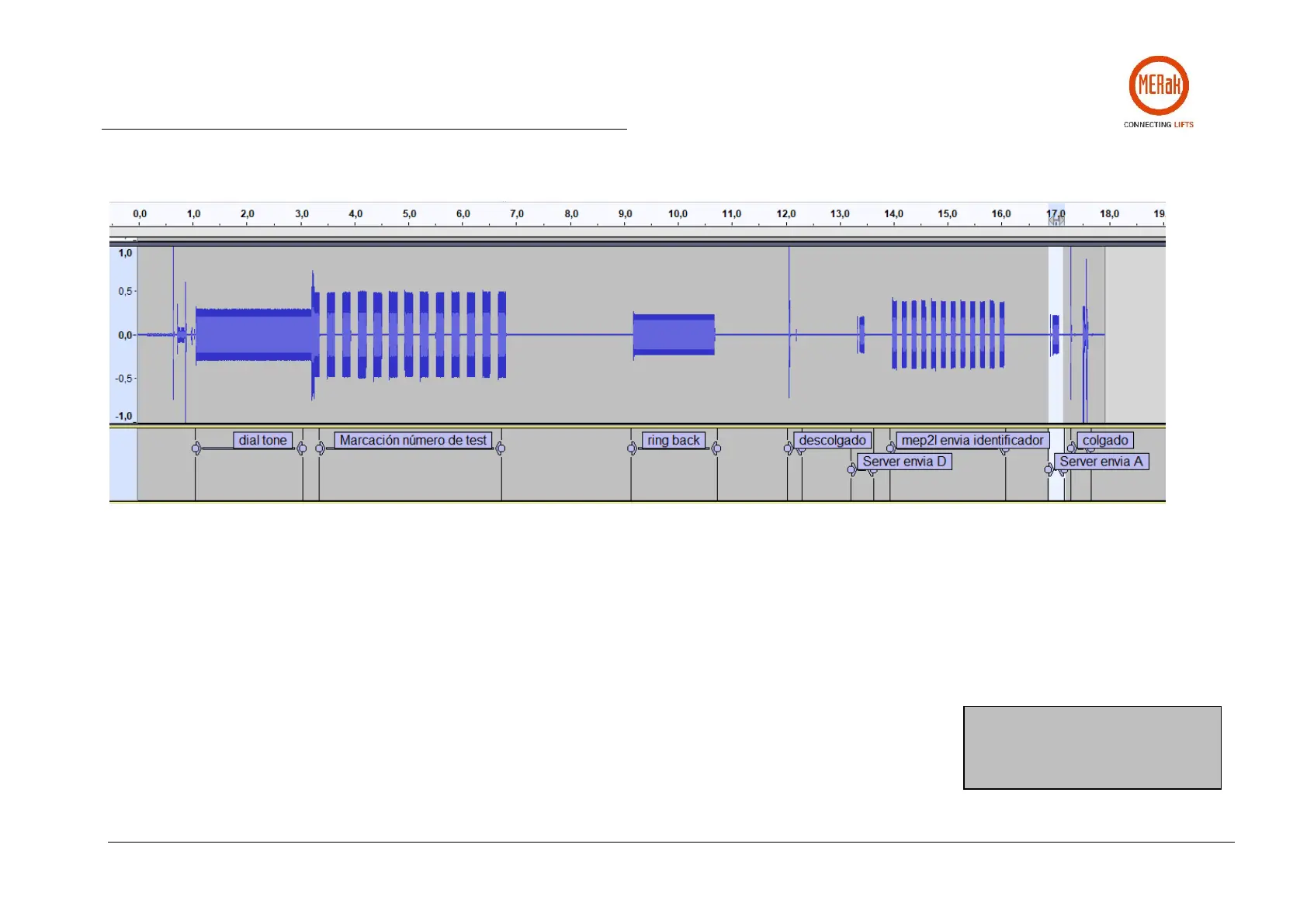

In the image you can see the test call sequence in protocol P100. This sequence is explained step by step below:

 MEP2L pick up to make test call

 MEP2L receives dial tone

 MEP2L dials the test number stored in register 06

 A ring back is heard (ringtone)

 The test server goes down

 The test server in P100 sends a "D"

 MEP2L responds with its identifier in a P100 protocol type 3 frame

 The server has successfully received the frame and responds with an "A"

 Test call server and MEP2L hang up the call
