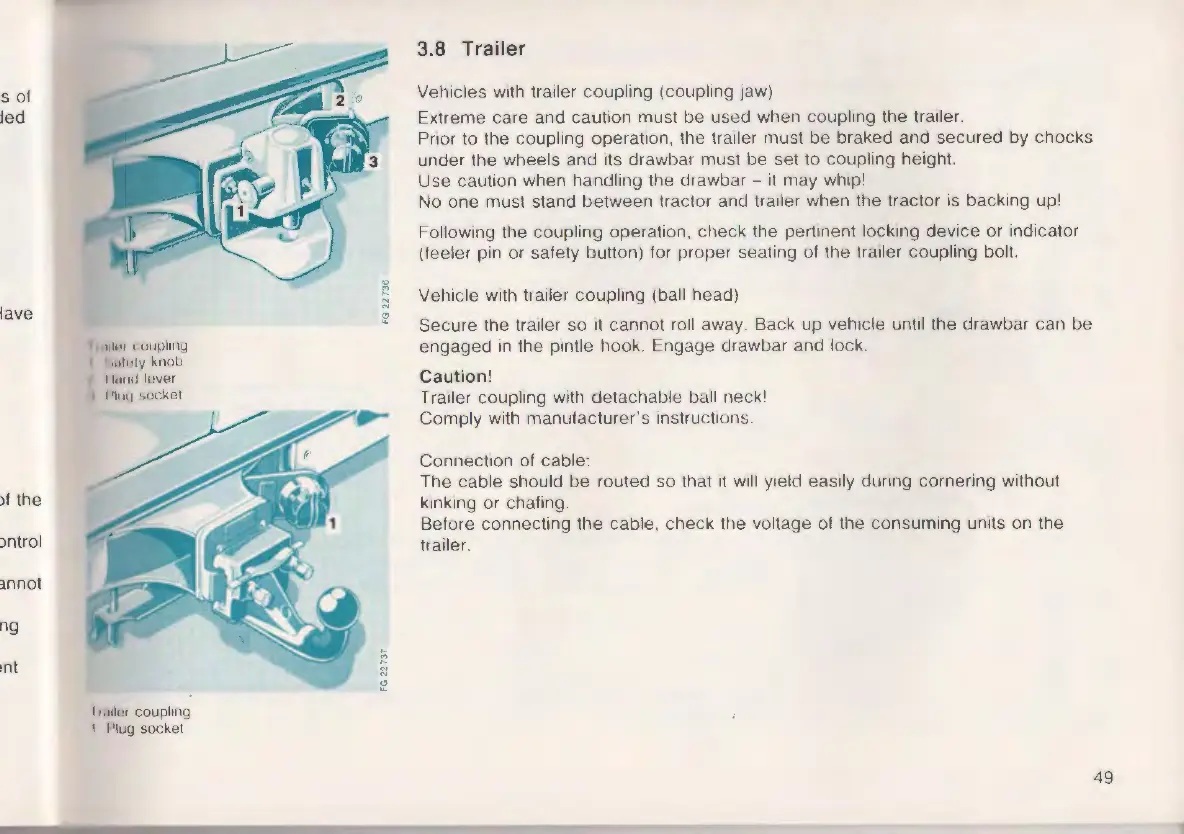

3.8 Trailer
Vehicles with trailer coupling (coupling Jaw)
Extreme care and caution must be used when coupling the trailer.
Prior to the coup ling operation, the trailer must be braked and secured by chocks
under the wheels and its drawbar must be set to coupling height.
Use caut ion when hand ling the drawbar - 1t may whip!
No one must stand between tractor and trailer when the tractor is backing up!
Following the coupli ng operation, cl1eck the pertinent locking device or indicator
(feeler pin or safety button) for proper seating of the trailer coup ling bolt.
Vehicle with trailer coupling (ball head)
Secure the trailer so it cannot roll away. Back up vehicle until the drawbar can be
engaged in the pintle hook. Engage drawbar and lock.
Caution!
Trailer coupling with detachable ball neck!
Comp ly with manufac turer's instructions.
Connection of cable:
The cable should be routed so that it will yield easily dunng cornering without
kinking or chafing.
Before connecting the cable, check the voltage of the consuming units on the
trailer.
49
