Mercedes-Benz 310 - MB Automatic Transmission

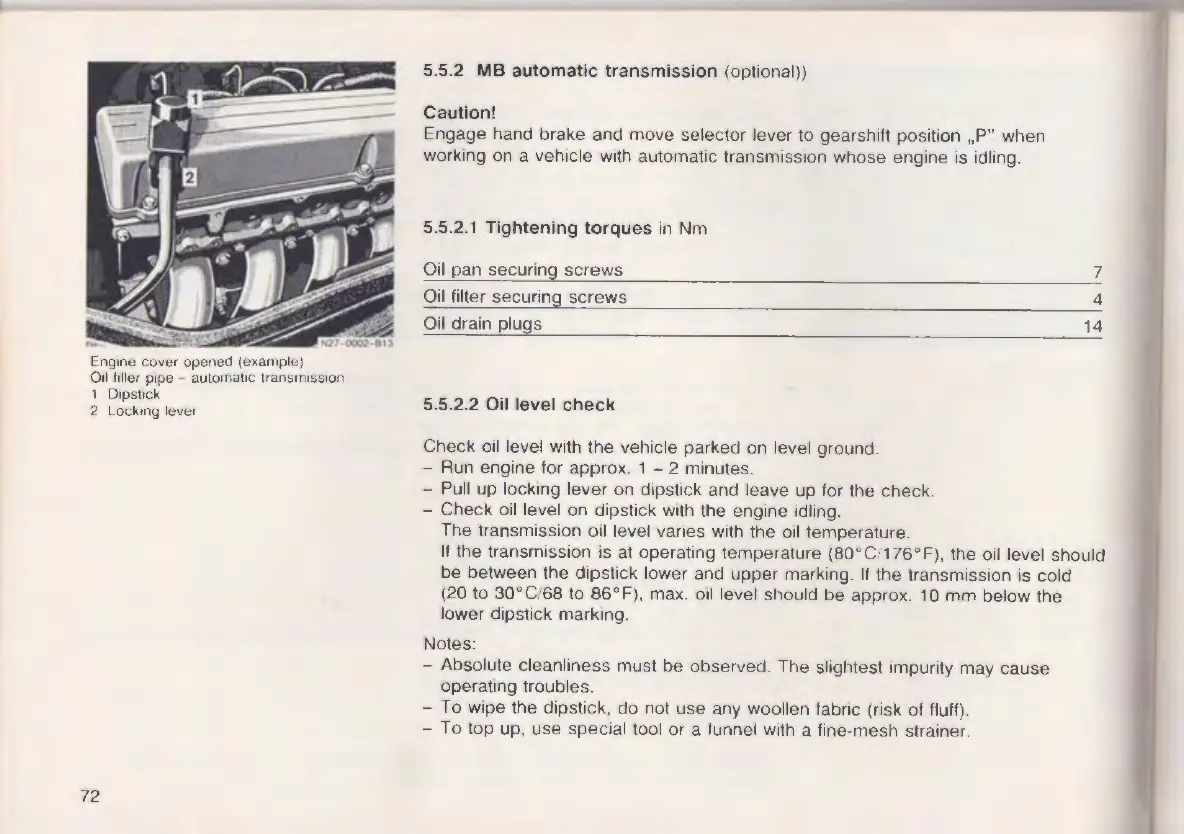

Engine cover opened (example)
011 hller pipe - automatic transm1ss1on
1 D1psllck
2 Locking lever
72
5.5.2 MB automatic transmission (optional))
Caution!
Engage hand brake and move selector lever to gearshift position ,,P" when
working on a vehicle with automatic transmission whose engine is idling.
5.5.2.1 Tightening torques in Nm
Oil pan securing screws
Oil filter securing screws
Oil drain plugs
5.5.2.2 Oil level check
Check oil level with the vehicle parked on level ground.
- Run engine for approx. 1 - 2 minutes.
- Pull up locking lever on dipstick and leave up for the check.
- Check oil level on dipstick with the engine idling.
The transmission oil level varies with the oil temperature.
7
4
14
If the transmission is at operating temperature (80°C·176°F), the oil level should
be between the dipstick lower and upper marking. If the transmission is cold
(20 to 30°C/68 to 86°F), max. oil level should be approx. 10 mm below the
lower dipstick marking.
Notes:
- Absolute cleanliness must be observed. The slightest impurity may cause
operating troubles.
- To wipe the dipstick, do not use any woollen fabric (risk of fluff).
- To top up, use special tool or a funnel with a fine-mesh strainer.
