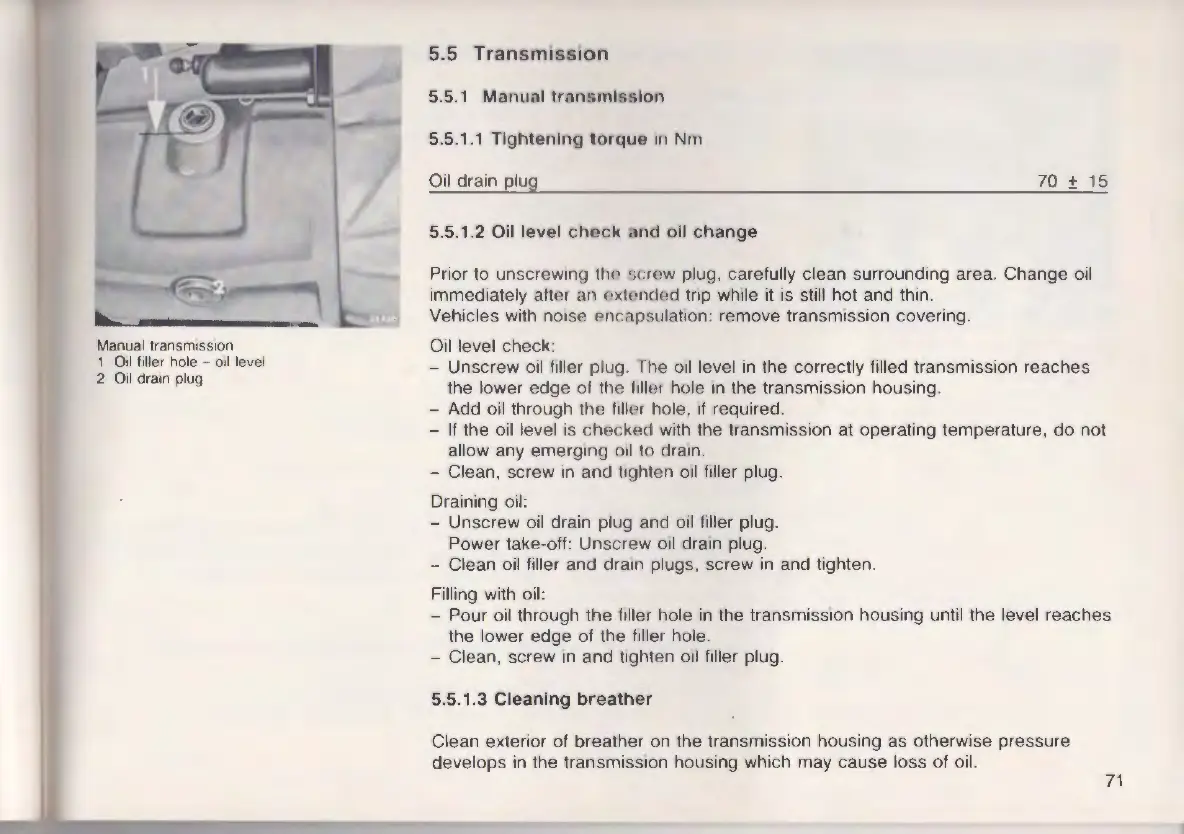

Manual transm1ss1on
1 Oil filler hole - o,I level
2 Oil drain plug
5.5 Transmission
5.5.1 Manual transmission
5.5.1.1 Tightening torque
111 Nm
Oil drain plug
70
± 15
5.5.1.2 011 level chock and oil change
Prior to unscrewing tho scrow plug, carefully clean surrounding area. Change oil
immediately after an oxtt•nded trip while it is still hot and thin.
Vehicles with noise encnpsulat1on: remove transmission covering.
Oil level check:
- Unscrew oil filler plug . fhe 011 level in the correctly filled transmission reaches
the lower edge of the filler hole in the transmission housing.
- Add oil through the filler hole, 1f required.
- If the oil level is checked with the transmission at operating temperature , do not
allow any emerging 011 to drain.
- Clean, screw in and tighten oil filler plug.
Draining oil:
- Unscrew oil drain plug and oil filler plug.
Power take-off : Unscrew oil drain plug.
- Clean oil filler and drain plugs, screw in and tighten .
Filling with oil:
- Pour oil through the filler hole in the transmission housing until the level reaches
the lower edge of the filler hole.
- Clean, screw in and lighten oil filler plug.
5.5.1.3 Cleaning breather
Clean exterior of breather on the transmission housing as otherwise pressure
deve lops in the transmission housing which may cause loss of oil.
