Mercedes-Benz 310 - 5.11.10 Wiring Diagrams

-
5.11.1 o Wiring diagrams

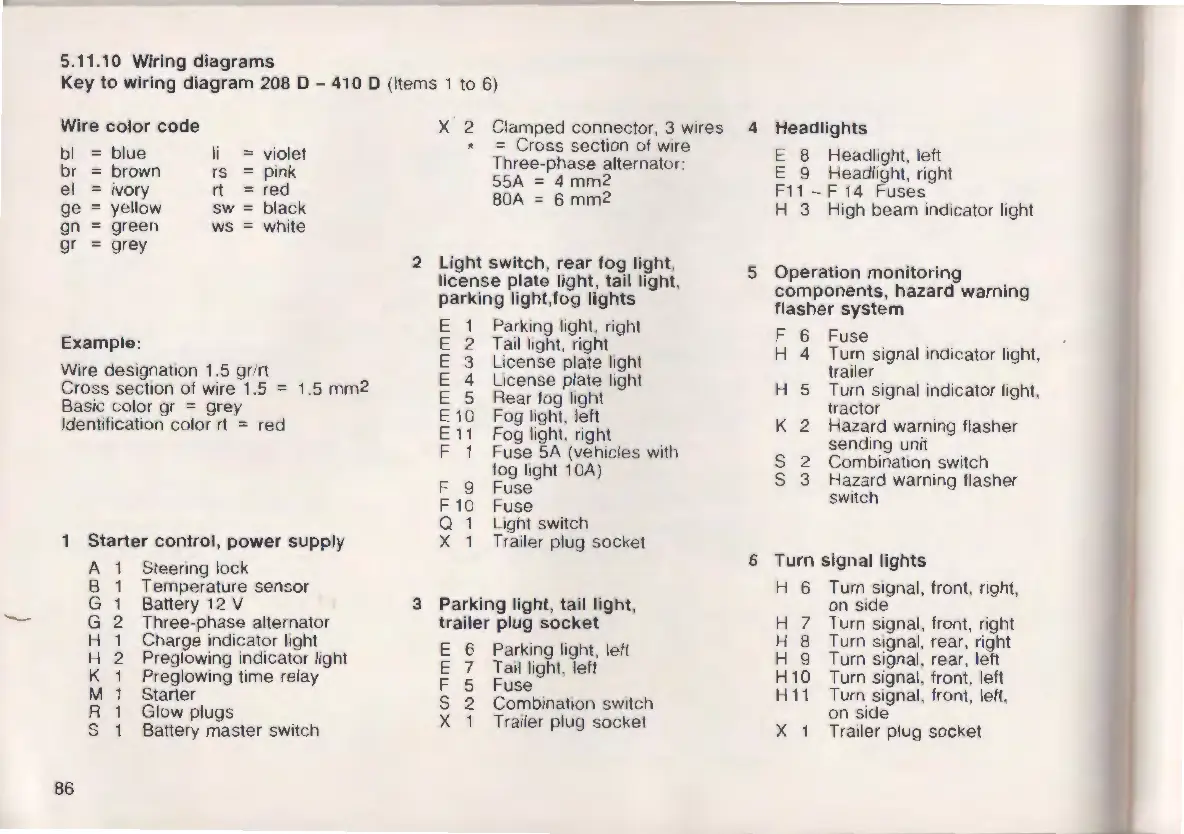

Key to wiring diagram 208 D - 410 D (Items 1 to 6)
Wire color code
bl = blue Ii = violet
rs = pink
rt = red
sw = black
ws = white
br = brown
el = ivory
ge = yellow
gn = green
gr = grey
Example:
Wire designation 1.5 gr/rt
Cross section of wire 1 .5 = 1 .5 mm2
Basic color gr = grey
Identification color rt = red
1
Starter control, power supply
A 1 Steering lock
B 1 Temperature sensor
G 1 Battery 12 V
G 2 Three-phase alternator
H 1
Charge indicator light .
H 2 Preglowing indicator hght
K 1 Preglowing time relay
M 1 Starter
R 1 Glow plugs
s 1 Battery master switch
86
2
3
X 2 Clamped connector, 3 wires
= Cross section of wire
Three-phase alternator:
55A = 4 mm2
BOA= 6 mm2
Light switch, rear fog light ,
license plate light, tall light ,
parking light ,fog lights
E 1 Parking light, right
E
2 Tail light, right
E
3 License plate light
E 4
License plate light
E 5 Rear fog light
E 10 Fog light, left
E 11 Fog light, right
F
1 Fuse 5A (vehicles with
F
9
log light 1 OA)
Fuse
F 10 Fuse
Q 1 Light switch
X 1 Trailer plug socket
Parking light, tall light ,
trailer plug socket
E
6 Parking light, left
E
7 Tail light , left
F
5
Fuse
s 2 Combination switch
X
1
Trailer plug socket
4 Headlights
5
6
E a Headlig ht, left
E 9 Head light, right
F11 - F 14 Fuses
H 3 High beam indicator light
Operation monitoring
components , hazard warning
flasher system
F
6 Fuse
H 4
Turn signal indicator light,
trailer
H
5 Turn signal indicator light,
tractor
K 2
Hazard warning flasher
send ing unit
s
2
Combinat ion switch
s 3 Hazard warning flasher
switch
Turn slgnal lights
H
6 Turn signal, front , right,
on side
H
7
Turn signal, front, ~ight
H 8 Turn signal , rear, nght
H
9 Turn signal, rear, left
H10 Turn signa l, front , left
H 11
Turn signal, front, left,
on side
X
1
Trailer plug socket
