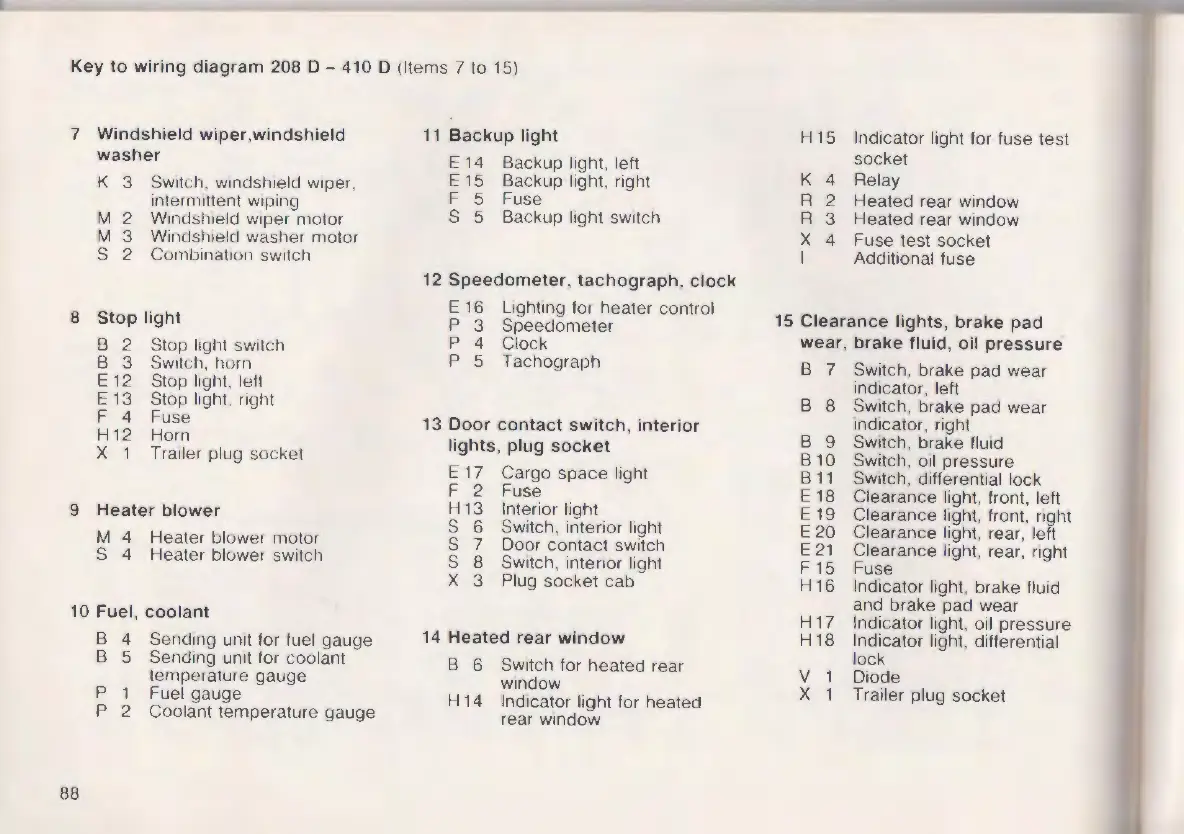

Key to wiring diagram 208 D - 410 D (Items 7 to 15)
7 Windshie ld wiper .windshield
washer
K 3 Switch, windshield wiper.
intermittent wiping
M 2 Windshield wiper motor
M 3 Windshield washer moto r
S 2 Combination switch
8 Stop light
B 2 Stop light switch
B 3 Switch, horn
E 12 Stop light, left
E 13 Stop light. right
F 4 Fuse
H 12 Horn
X 1 Trailer plug socket
9 Heater blower
M 4 Heater blower motor
S 4 Heater blower switch
10 Fuel , coo lant
88
B 4 Sending unit for fuel gauge
B 5 Sending unit for coolant
temperature gauge
P 1 Fuel gauge
P 2 Coolant temperature gauge
11 Backup light
E 14 Backup light, left
E 15 Backup light, right
F 5 Fuse
S 5 Backup light switch
12 Speedometer, tachograph, clock
E 16 Lighting for heater contro l
P 3 Speedome ter
P 4 Clock
P 5 Tachograph
13 Door contact sw itch, interior
lights, plug socket
E 17 Cargo space light
F 2 Fuse
H 13 Interior light
S 6 Switch, inter ior light
S 7 Door contact switch
S 8 Switch, interior light
X 3 Plug socket cab
14 Heated rear window
B 6 Switch for heated rear
window
H 14 Indicator light for heated
rear window
H 15 Indicator light for fuse test
socket
K 4 Relay
R 2 Heated rear window
R 3 Heated rear window
X 4 Fuse test socket
I Additional fuse
15 Clearance lights, brake pad
wear, brake fluid, oil pressure
B 7 Switch, brake pad wear
indicator, left
B 8 Switch , brake pad wear
indicator, right
B 9 Switch , brake fluid
B 10 Switch, oil pressure
B 11 Switch , differential lock
E 18 Clearance light, front, left
E 19 Clearance light, front, right
E 20 Clearance light, rear, left
E 21 Clearance light, rear, right
F 15 Fuse
H 16 Indicator light, brake fluid
and brake pad wear
H 17 Indicator light, oil pressure
H 18 Indicator light, differential
lock
V 1 Diode
X 1 Trailer plug socket
