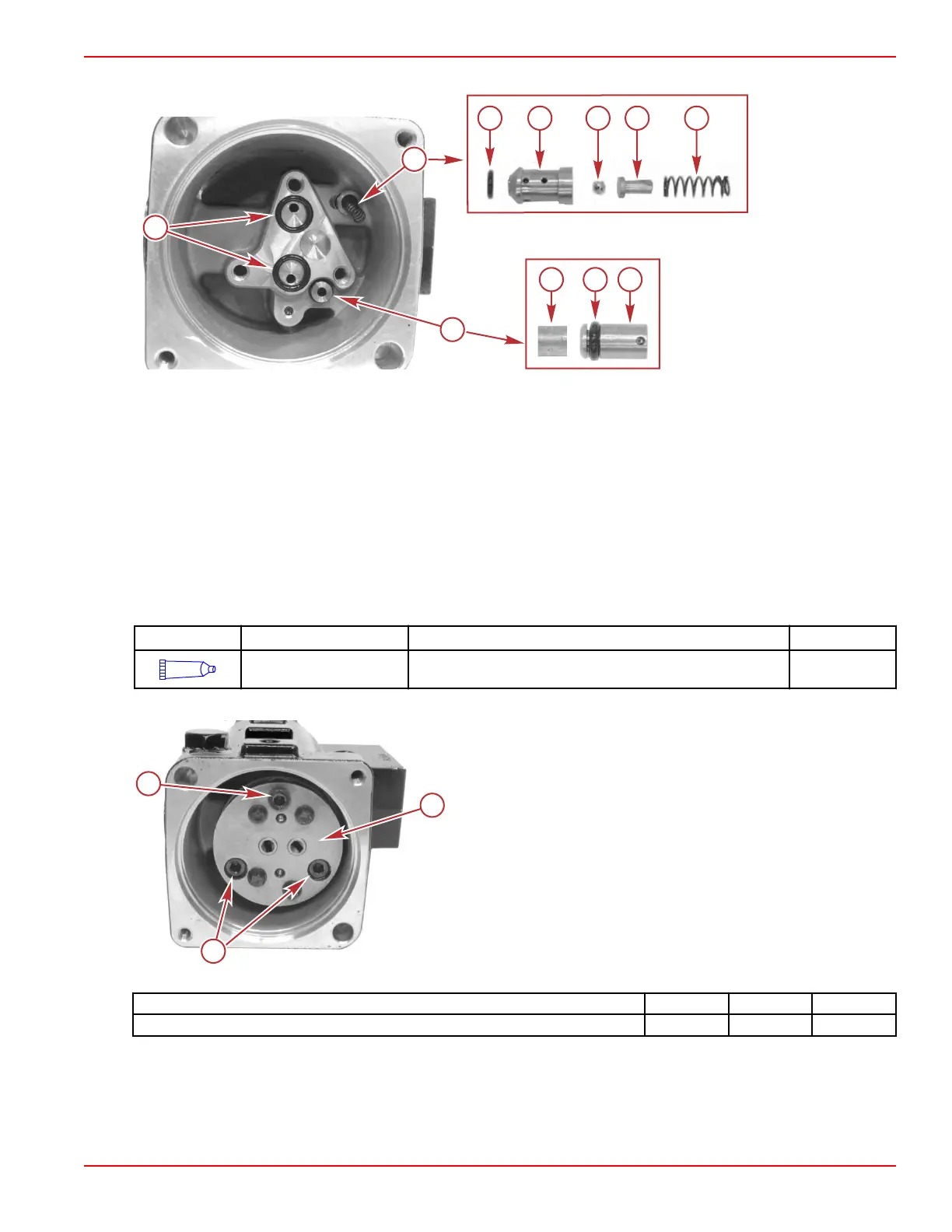

4. Install the up relief valve components in the power tilt housing.
a - Up relief valve assembly
b - O‑ring
c - Valve seat
d - Ball
e - Spring guide
f - Spring
g - Down orifice assembly
h - Filter
i - O‑ring
j - Orifice
k - O‑ring
Tube Ref No. Description Where Used Part No.
114
Power Trim and Steering
Fluid
Lubrication of power tilt O-rings 92-858074K01
5. Assemble the pump with three internal hex screws. Tighten the screws to the specified torque.
a - Power tilt pump
b - Internal hex screw (5 mm x 20)
c - Internal hex screw (5 mm x 25)
Description Nm lb. in. lb. ft.
Pump mounting screws 5.2 46
6. Install a clean pump filter.
Power Tilt
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5B-27
