The adjustment of the tilt‑in stop pins will set the vertical operating angle of
your outboard. Proper adjustment allows the boat to run stable, achieve
optimum performance, and minimize steering effort.
Power tilt models only
a - Tilt‑in stop pins
NOTE: Refer to the following lists when adjusting the operating angle of your
outboard.
The tilt‑in stop pins should be adjusted so the outboard is positioned to run
perpendicular to the water when the boat is running at full speed. This allows
the boat to be driven parallel to the water.
Arrange passengers and load in the boat so the weight is distributed evenly.

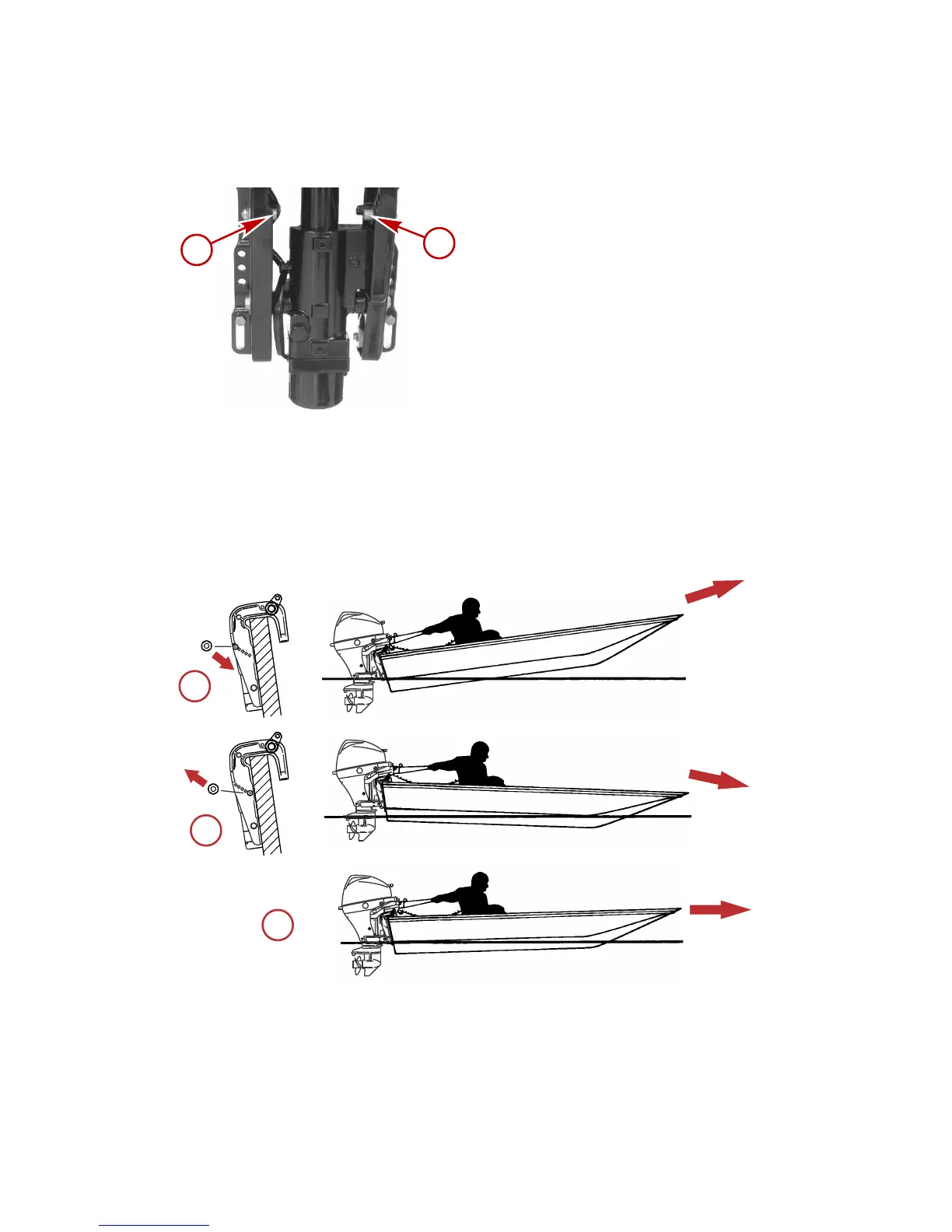

a - Too much angle (stern down ‑ bow up)
b - Not enough angle (stern up ‑ bow down)
c - Angle adjusted properly (bow slightly up)
