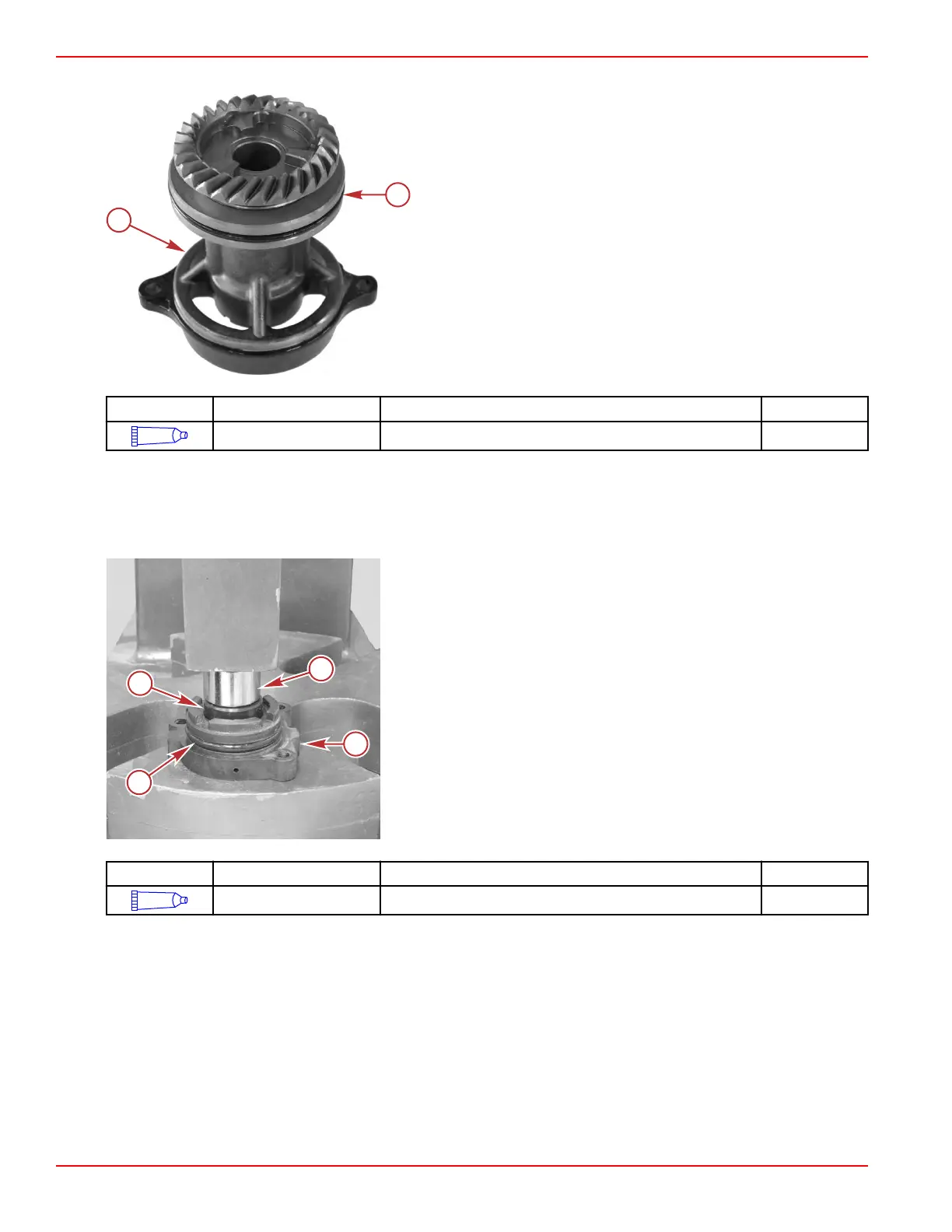

7. Apply 2‑4‑C with PTFE to the new bearing carrier O‑ring. Install the O‑ring onto the bearing carrier.
a - Bearing carrier
b - O‑ring
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Bearing carrier O-ring 92-802859A 1
Water Pump Base Assembly
1.
Using a suitable mandrel, press on the face of the water pump seal until the seal is seated in the water pump base.
2. Apply 2‑4‑C with PTFE to the seal lips.
3. Apply 2‑4‑C with PTFE onto a new O‑ring and install the O‑ring onto the water pump base.
a - Mandrel
b - Seal
c - O‑ring
d - Water pump base
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Apply to seal lips and O-rings 92-802859A 1
Gear Housing (2.15:1)
Page 6A-30 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
