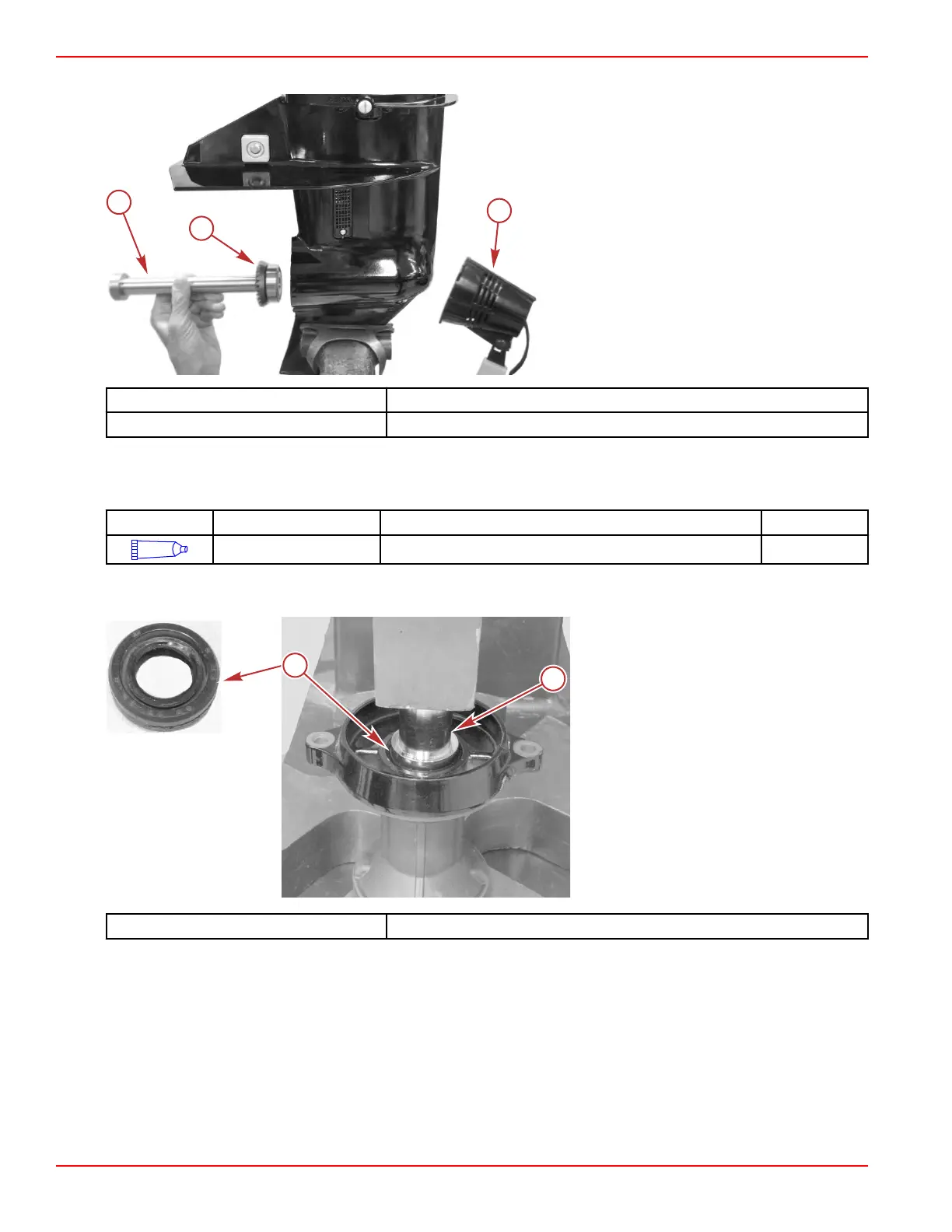

3. Use the pinion bearing tool to install the bearing and forward gear assembly into the gearcase.
a - Pinion bearing tool
b - Bearing and forward gear assembly
c - Torch lamp
Torch Lamp 91‑ 63209
Pinion Bearing Installation Tool Assembly 8M0038865
Bearing Carrier Assembly
1.
Apply 2‑4‑C with PTFE to the bearing carrier seal lips.
Tube Ref No. Description Where Used Part No.
95
2-4-C with PTFE Bearing carrier seal lips 92-802859A 1
2. Install the seal with the seal face up.
3.
Using a suitable mandrel from the bearing mandrel kit, press the seal into the bearing carrier until seated.
a - Mandrel
b - Seal (install face up)
Bearing Mandrel Kit 91‑ 83166M
Gear Housing (2.15:1)
Page 6A-28 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
