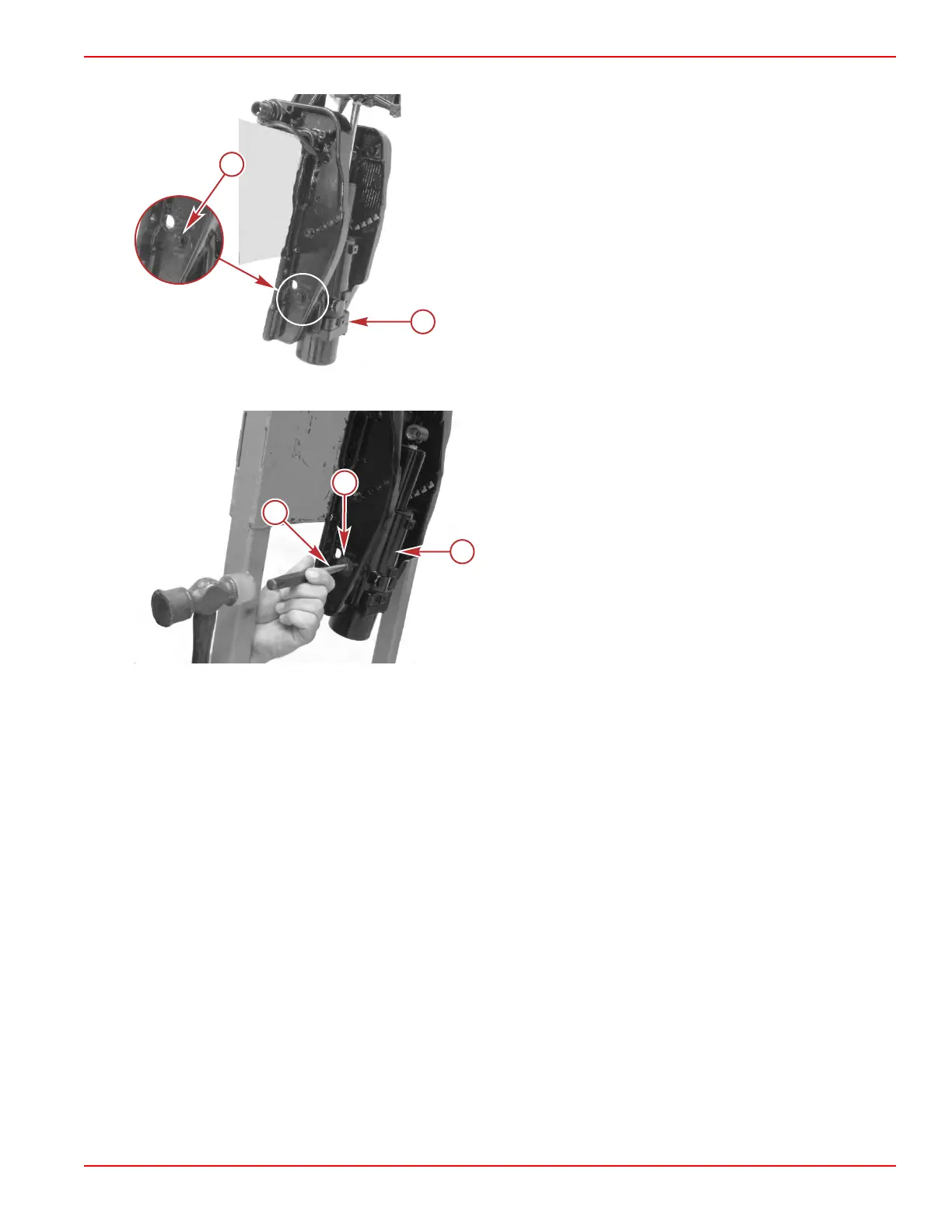

8. Remove the port side screw from the power tilt pivot pin.
a - Pivot pin retaining screw
b - Power tilt assembly
9. Using a drift punch, remove the pivot pin from the power tilt assembly.
a - Drift punch
b - Pivot pin bore
c - Power tilt assembly
10. Remove the power tilt assembly from the clamp brackets.
Manual Release Valve Removal and Repair
IMPORTANT:
The power tilt system is pressurized. The tilt cylinder rod must be fully extended in the up position prior to
removing the reservoir plug or manual release valve.
1. Extend the tilt cylinder rod to the full up position.
2. Slowly remove the power tilt reservoir fill plug.
3. Drain the power tilt fluid.
4. Remove the snap ring.
Power Tilt
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 5B-19
