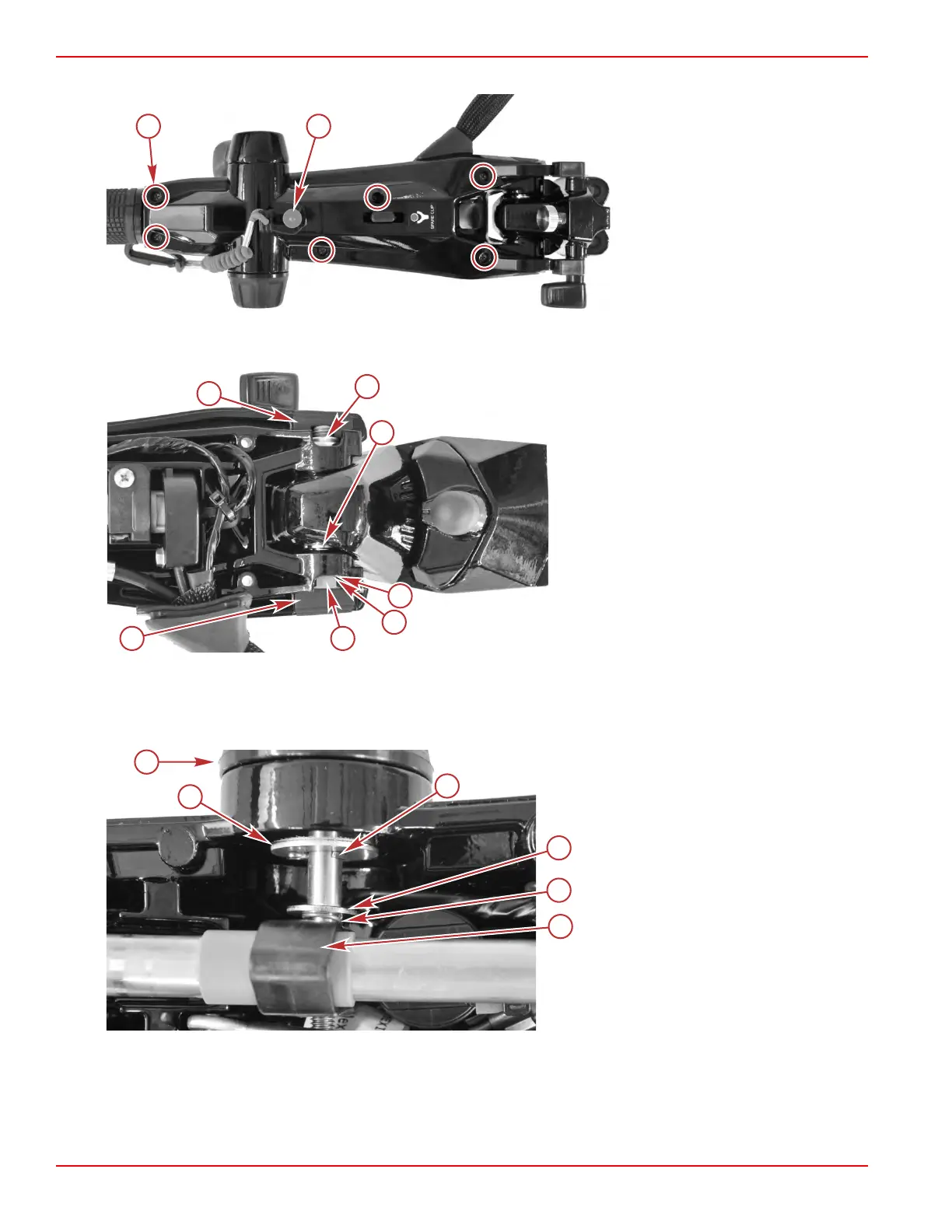

2. Remove six screws from the underside of the tiller handle, and remove the top cover.
a - Screws (6)
b - Lanyard stop switch
3. Remove the two grommets from the tiller handle, and remove the screw, Belleville washer, flat washer, flange spacer, and
locknut that secure the tiller handle mount.
a - Small grommet
b - Large grommet
c - Screw head
d - Belleville washer
e - Flat washer
f - Flange spacer
g - Locknut
NOTE: Two plastic bushings fit into the tiller handle bracket. If they are loose, remove and retain them for reuse.
4. Remove the cotter pin from the friction control knob.
5. Turn the friction control knob to remove the knob assembly from the throttle shaft clamp. Two washers and a spring will
come loose with the assembly.
a - Friction knob
b - Large washer
c - Cotter pin
d - Small washer
e - Spring
f - Throttle shaft clamp
6. Remove the screw that secures the throttle shaft bracket. Lift up to remove the bracket.
Tiller Handle
