CYLINDER BLOCK AND CRANKCASE
Page 4B–42 90-857138R1 MAY 2000

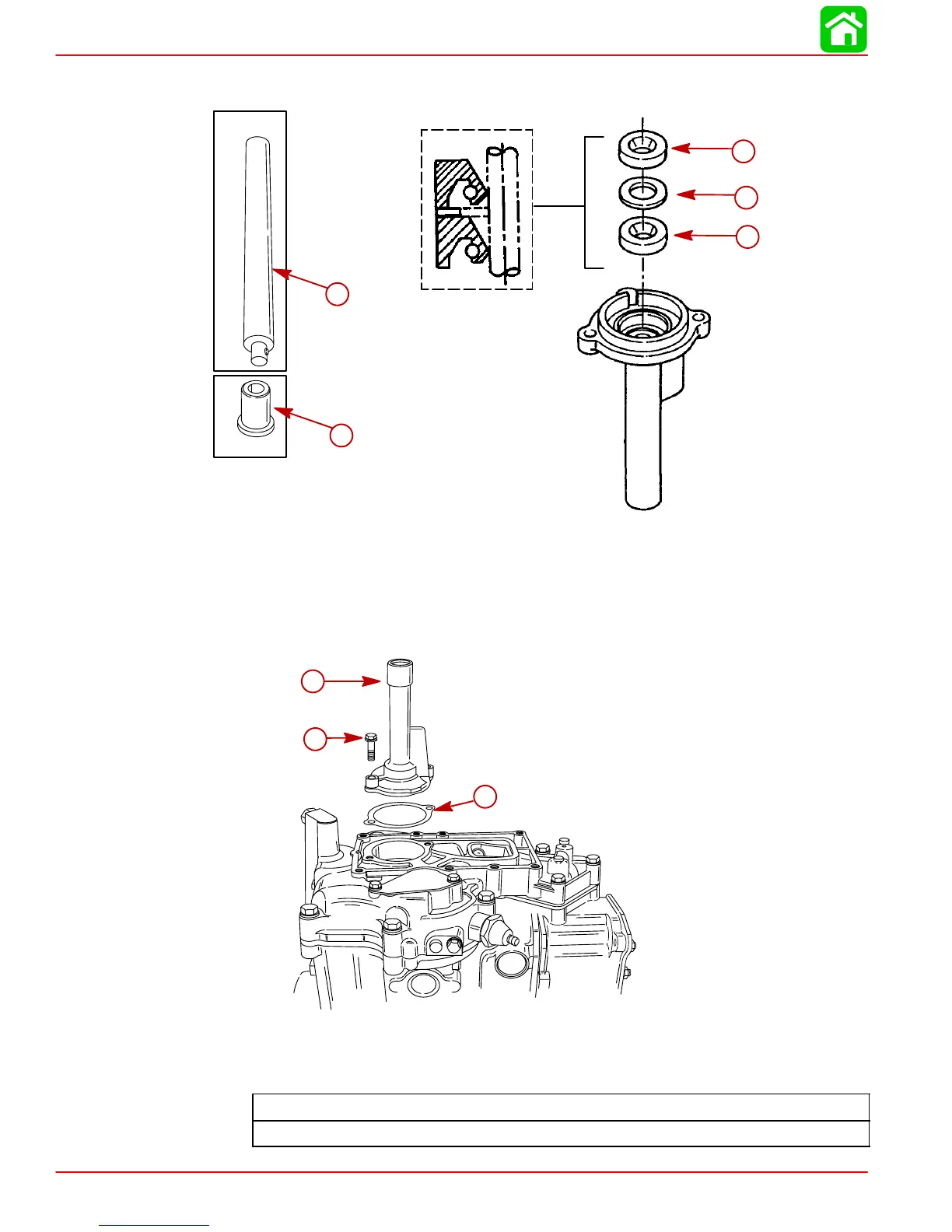

26. Support oil seal housing and install two seals and spacer. Use driver and mandrel as
shown.
9184529M
9183172M
a
c
d
a
b
a-Seal
b-Spacer
c-Driver
d-Mandrel
27. Reinstall the oil seal housing.
a
b
c
a-Oil Seal Housing
b-Bolt (2) M6 x 20 mm
c-Gasket
Oil Seal Housing Bolt Torque
70 lb-in. (8 Nm)
