Mercury 4 SERIES

WIRING DIAGRAM
Page 2D-2 90-857138R1 MAY 2000

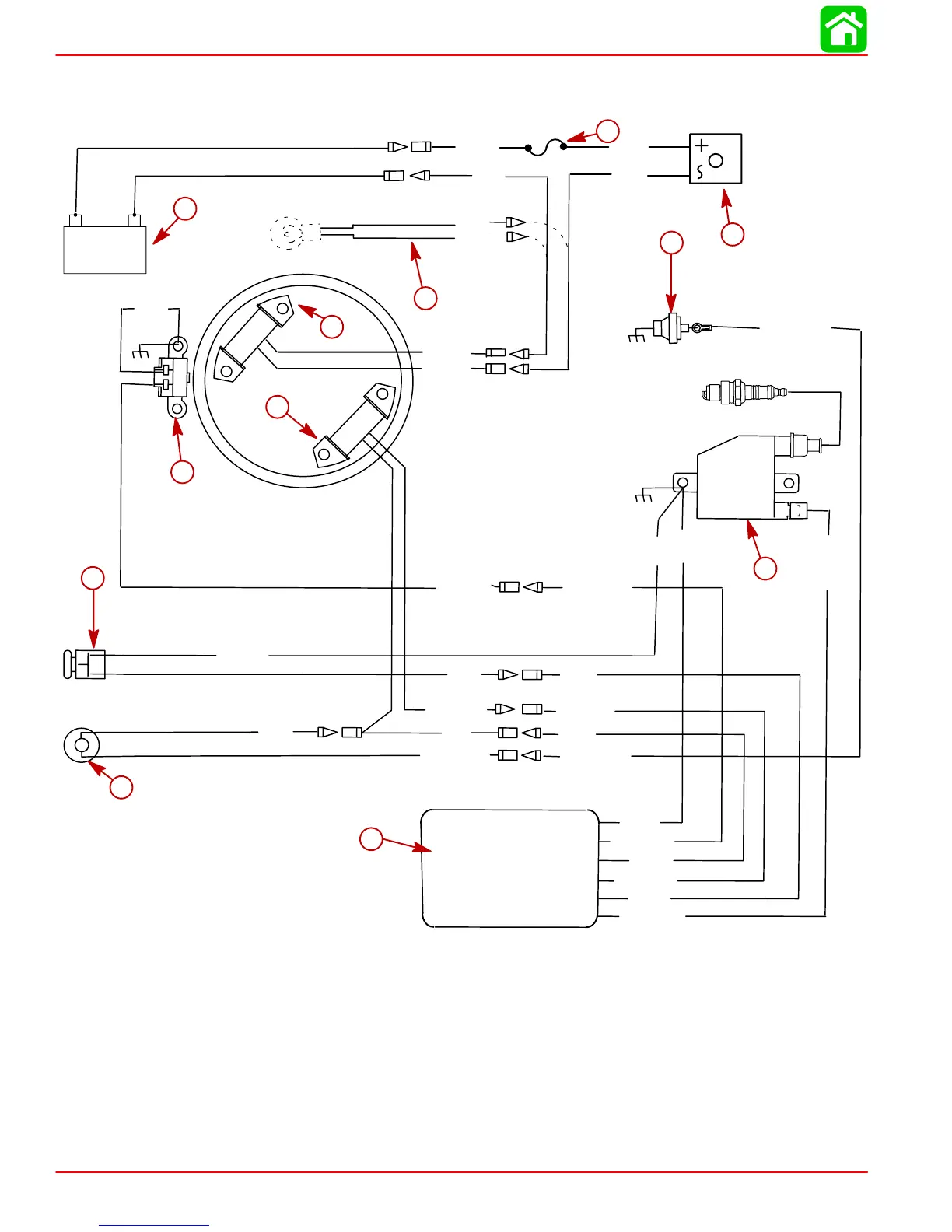

Wiring Diagram
BRN
WHT
LIGHT - GRN
BLK
BLK
RED – WHT
WHT
BLK – RED
BRN
BLK-YEL
RED – WHT
BLK
RED – WHT
WHT
BLK – RED
BRN
LIGHt – GRN
WHT
LIGHT - GRN
BLK – RED
BLK-YEL
BLK
BLK
RED
YEL
YEL
YEL -RED
YEL -RED
–
+
RED
YEL
YEL
BLK = Black
BLU = Blue
BRN = Brown
GRY = Gray
GRN = Green
ORN = Orange
PNK = Pink
PUR = Purple
RED = Red
TAN = Tan
WHT = White
YEL = Yellow
a
b
c
d
e
f
g
h
i
j
k
l
a-Crank Position Sensor
b- Ignition Charge Coil
c-Oil Pressure Switch
d- Ignition Coil
e-CDI Unit
f-Oil Lamp
g- Stop Switch
h- Lighting Coil (Optional)
i-Rectifier (Optional)
j-Fuse –10 Amp (Optional)
k-Battery
l-Light Extension Harness (Optional)
