Mercury 4 SERIES

OUTBOARD MOTOR INSTALLATION
Page 1D-6 90-857138R1 MAY 2000

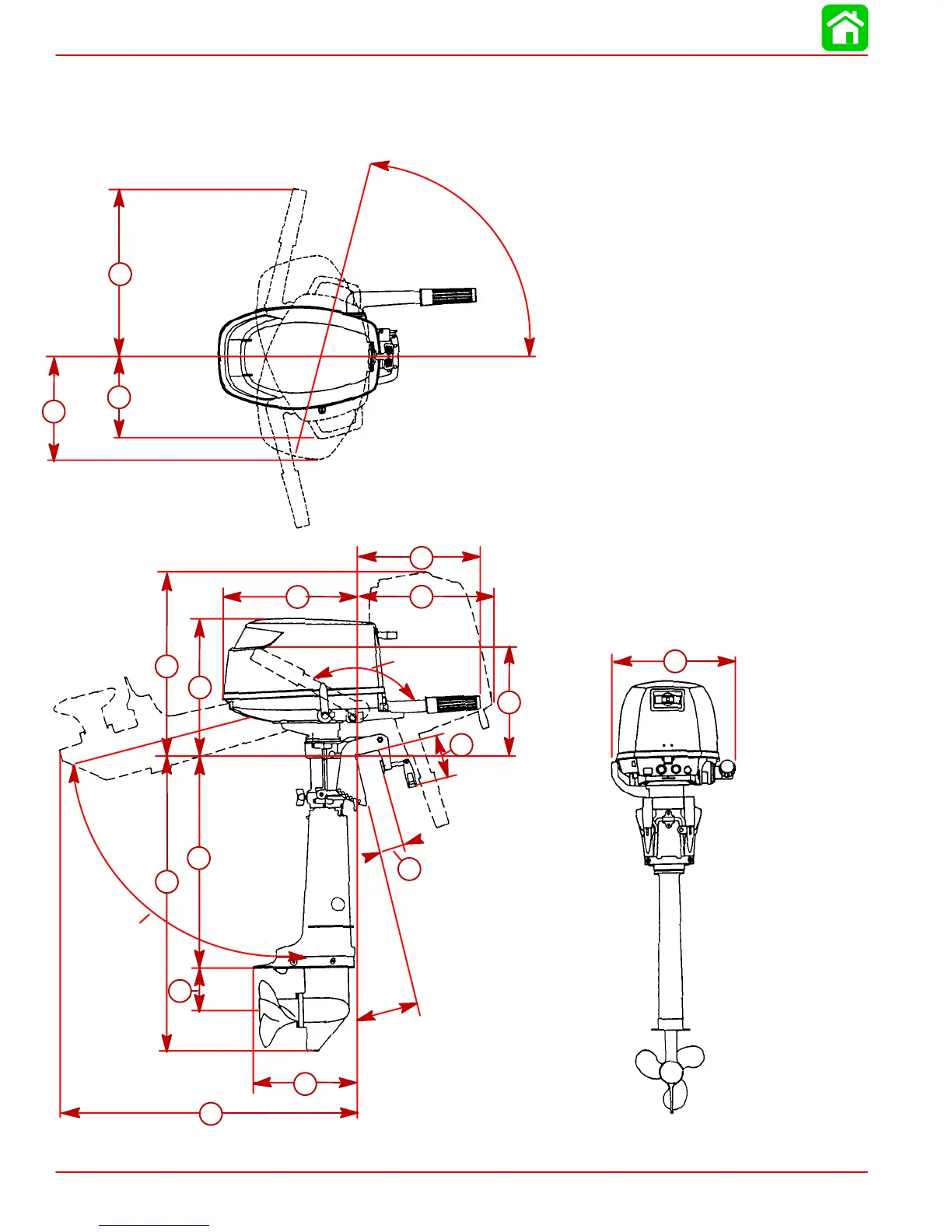

Installation Drawings
145°
12°
75°
75°
f
g
q
a
b
c
e
d
h
j
i
k
l
m
o
p
a – 17-1/2 in. (444.5 mm)
b – 8-17/64 in. (209.9 mm)
c – 10-7/16 in. (265.1 mm)
d – 12-51/64 in. (325 mm)
e – 12-63/64 in. (329.8 mm)
f – 14-11/64 in. (360 mm)
g – 13-49/64 in. (349.7 mm)
h – 19-3/32 in. (485 mm)
i – 14-3/8 in. (365.1 mm)
j – 11-5/8 in. (295.3 mm)
k – 4-5/16 in. (109.5 mm)
l – 2-1/16 in. (52.4mm)
m – Short – 17-1/8 in. (435 mm)
Long – 22-1/8 in. (562 mm)
Ultra Long – 27-1/8 in. (689 mm)
n – Short – 25-3/4 in. (654.1 mm)
o – 4-45/64 in. (119.5 mm)
Long – 30-3/4 in. (781.1 mm)
Ultra Long – 35-3/4 in. (908.1 mm
)
p – 8-17/64 in. (209.9 mm)
q – Short – 25-5/8 in. (650.9 mm)
Long – 29-9/16 in. (750.9 mm)
Ultra Long – 33-1/2 in. (850.9 mm)
n
