Mercury 4 SERIES User Manual

GEAR HOUSING
Page 6-24 90-857138R1 MAY 2000

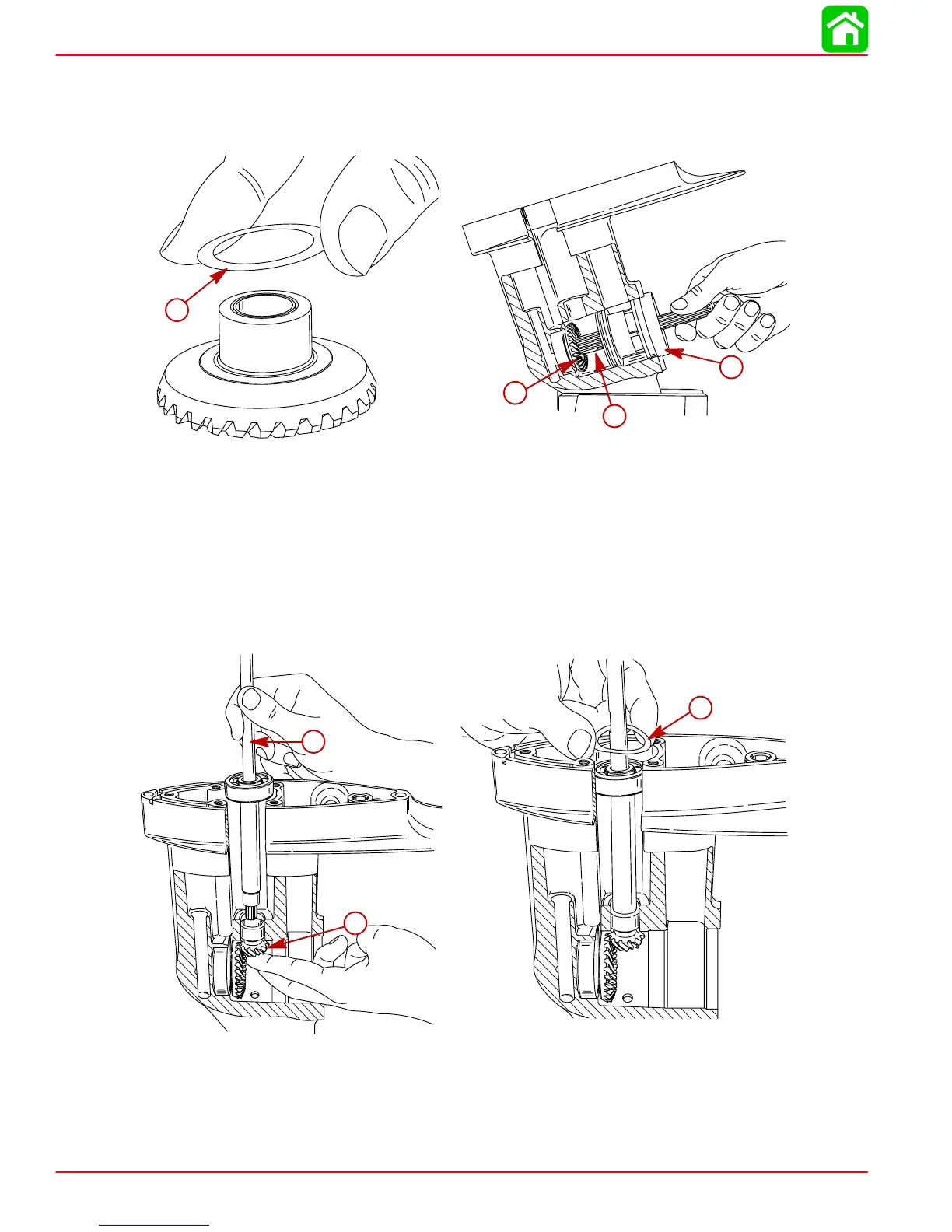

Forward Gear
1. Install shim(s) removed during disassembly on forward gear.
2. Install forward gear into bearing, using propeller shaft and bearing carrier as a guide.
a
b
c
d
56440
56441
a - Shims
b - Forward Gear
c - Propeller Shaft
d - Bearing Carrier
Pinion Gear and Drive Shaft
NOTE: Rotate drive shaft when installing to align splines with pinion gear.
1. Install drive shaft into pinion gear as shown.
a
b
c
56423 56422
a - Drive Shaft
b - Pinion Gear
c - Shims
2. Reinstall shims removed during disassembly.

Mercury 4 SERIES Specifications

General

Starting	Manual
Cylinders	1
Fuel Type	Gasoline
Steering	Tiller
Recommended Fuel	87 Octane
Warranty	3 years
Horsepower	4 HP
Full Throttle RPM	5000 - 6000 RPM
Alternator Output	Not Available
Fuel System	Carburetor
Cooling System	Water Cooled
Shaft Length	15 in
Gear Shift	Forward, Neutral
