CYLINDER BLOCK AND CRANKCASE
Page 4B–14 90-857138R1 MAY 2000
Powerhead Disassembly

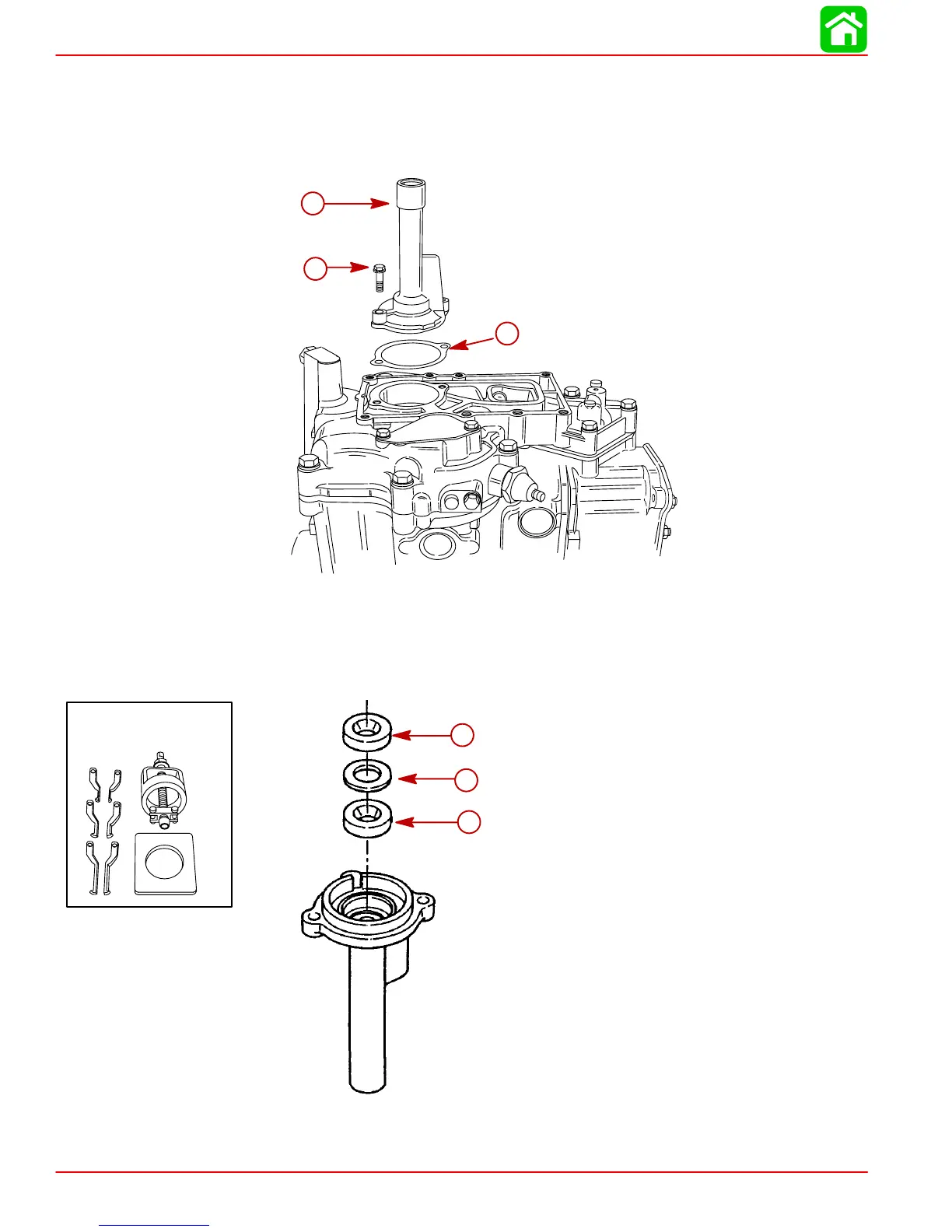

1. Remove bolts from seal housing.
2. Use soft face hammer to loosen oil seal housing.
a
b
c
a-Oil Seal Housing
b-Bolt (2) M6 x 20 mm
c-Gasket
3. Use puller 91- 83165M to remove seals from the oil seal housing.
91-83165M
a
b
a
a-Oil Seal
b-Spacer
