Mercury 4 SERIES

TILLER HANDLE
Page 7B-4 90-857138R1 MAY 2000
Removal

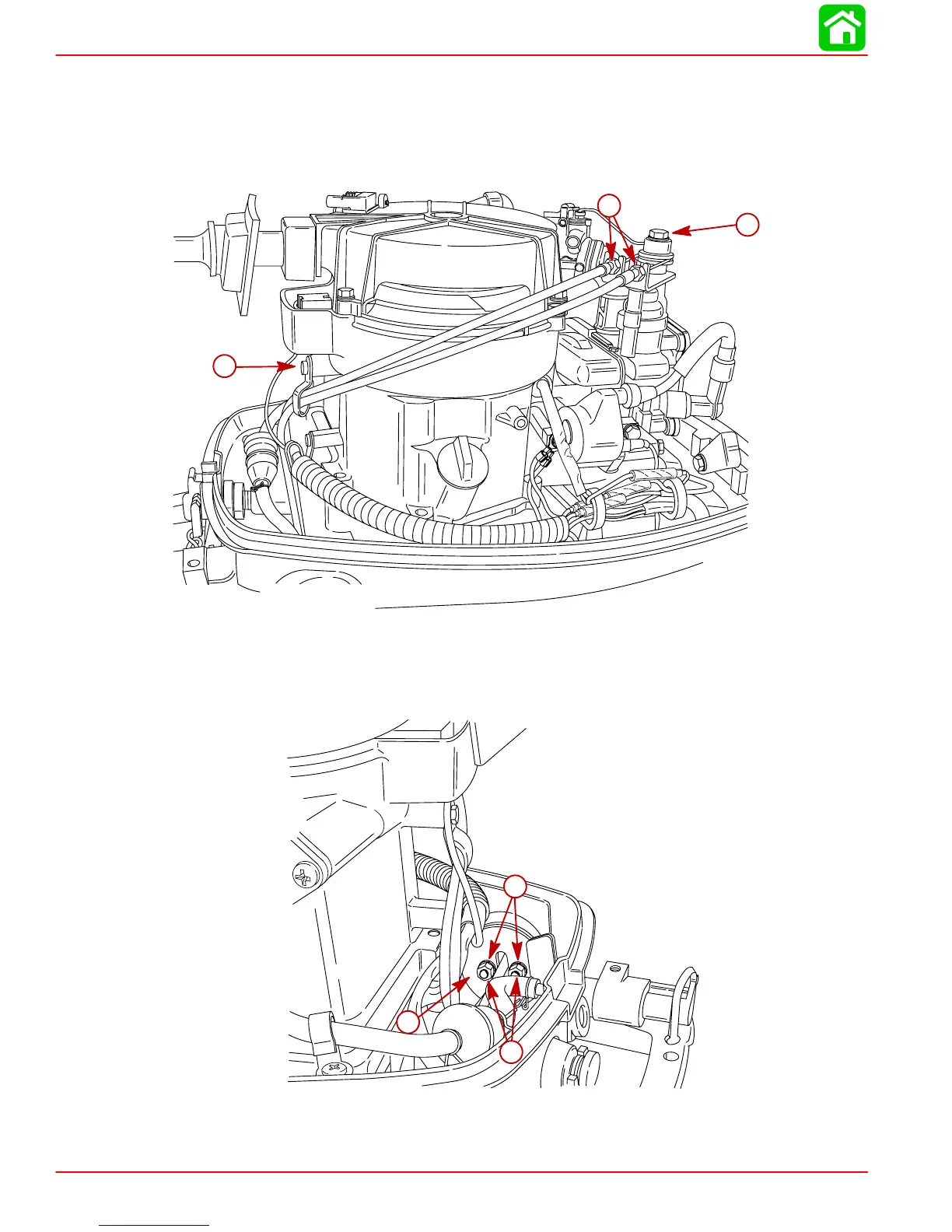

1. Remove J-Clip Screw.
2. Remove throttle drum retaining bolt.
3. Loosen throttle cable adjustment nuts and remove cables from drum.
a
b
c
57230
a-J-Clip Screw
b-Bolt
c-Nuts (2)
4. Remove 2 nuts and lockwashers securing retaining plate.
57010
a
b
c
a-Nuts (2)
b-Lockwashers (2)
c-Retaining Plate
