GEAR HOUSING
Page 6-32 90-857138R1 MAY 2000

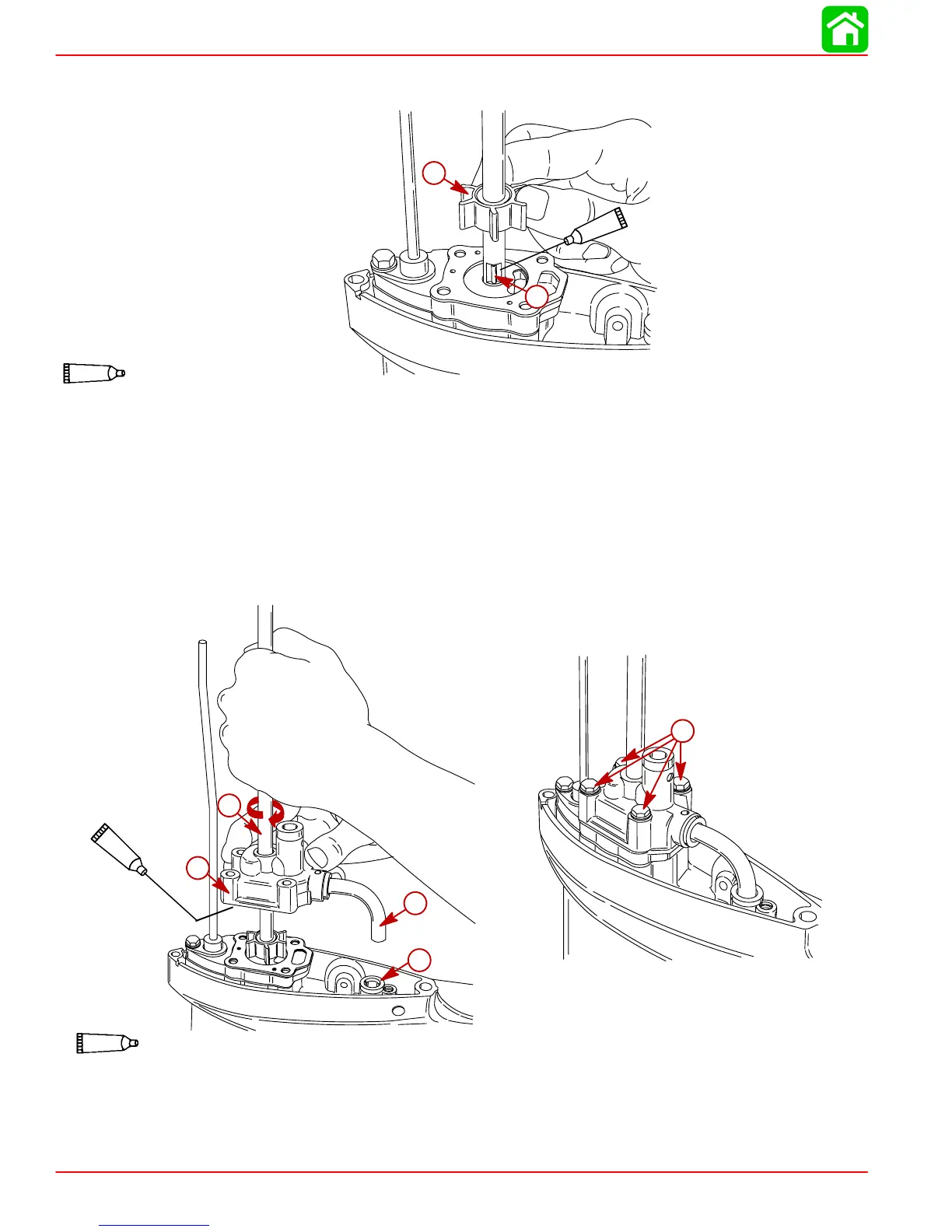

7. Lubricate drive pin with 2-4-C w/Teflon Marine Lubricant and place into flat of shaft as
shown. Install water pump impeller over drive pin.
a
b
56454
95
95
2-4-C With Teflon (92-825407A12)
a - Drive Pin
b - Water Pump Impeller
8. Apply a light coat of 2-4-C w/Teflon Marine Lubricant to the inside of the water pump im-
peller insert.
9. While rotating drive shaft clockwise, push down on water pump housing to cover impel-
ler guiding water pickup tube into seal.
10. Secure water pump housing to gear housing with four bolts and washers. Torque bolts
to 70 lb-in. (8 Nm).
a
b
c
d
e
56455
56406
95
95
2-4-C With Teflon (92-825407A12)
a - Rotate Drive Shaft Clockwise
b - Water Pump Housing
c - Water Pickup Tube
d - Seal
e - Bolts/Washers (4)
