Mercury 4 SERIES User Manual

TILLER HANDLE
Page 7B-6 90-857138R1 MAY 2000

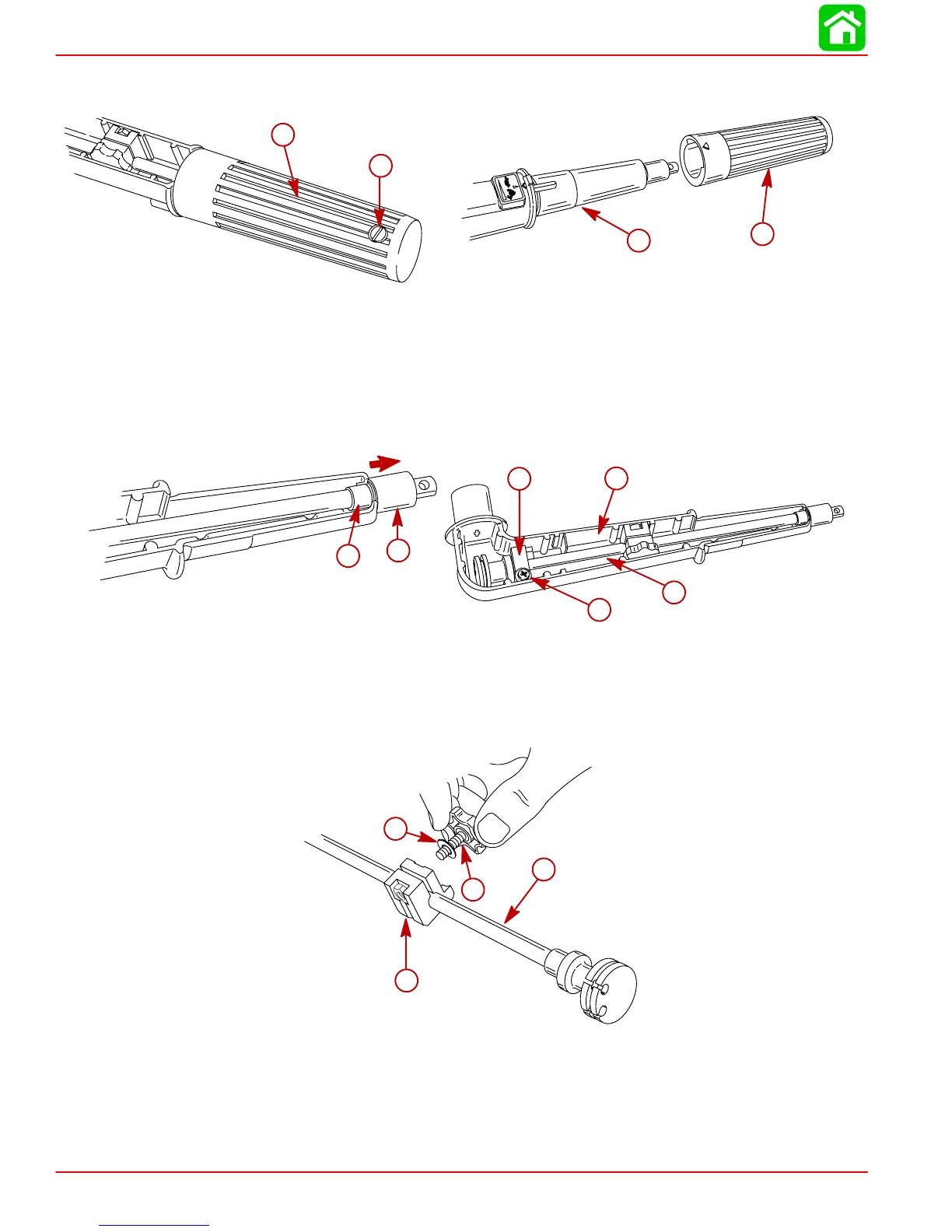

2. Remove screw from handle grip.
3. Remove handle grip from handle.
a
b
56614
56613
c
b
a-Screw
b-Handle Grip
c-Handle
4. Remove rubber spacer and nylon bushing from throttle shaft.
5. Remove screw and plate from handle. Then pull throttle shaft from handle.
a
b
c
d
e
f
56615
56616
a-Rubber Spacer
b-Nylon Bushing
c-Screw
d-Plate
e-Handle
f-Throttle Shaft
6. Remove adjusting screw and washer from friction block. Then slide block off shaft.
a
c
56617
b
d
a-Adjusting Screw
b-Washer
c-Friction Block
d-Throttle Shaft

Mercury 4 SERIES Specifications

General

Starting	Manual
Cylinders	1
Fuel Type	Gasoline
Steering	Tiller
Recommended Fuel	87 Octane
Warranty	3 years
Horsepower	4 HP
Full Throttle RPM	5000 - 6000 RPM
Alternator Output	Not Available
Fuel System	Carburetor
Cooling System	Water Cooled
Shaft Length	15 in
Gear Shift	Forward, Neutral
