Mercury 4 SERIES

TILLER HANDLE
Page 7B-10 90-857138R1 MAY 2000

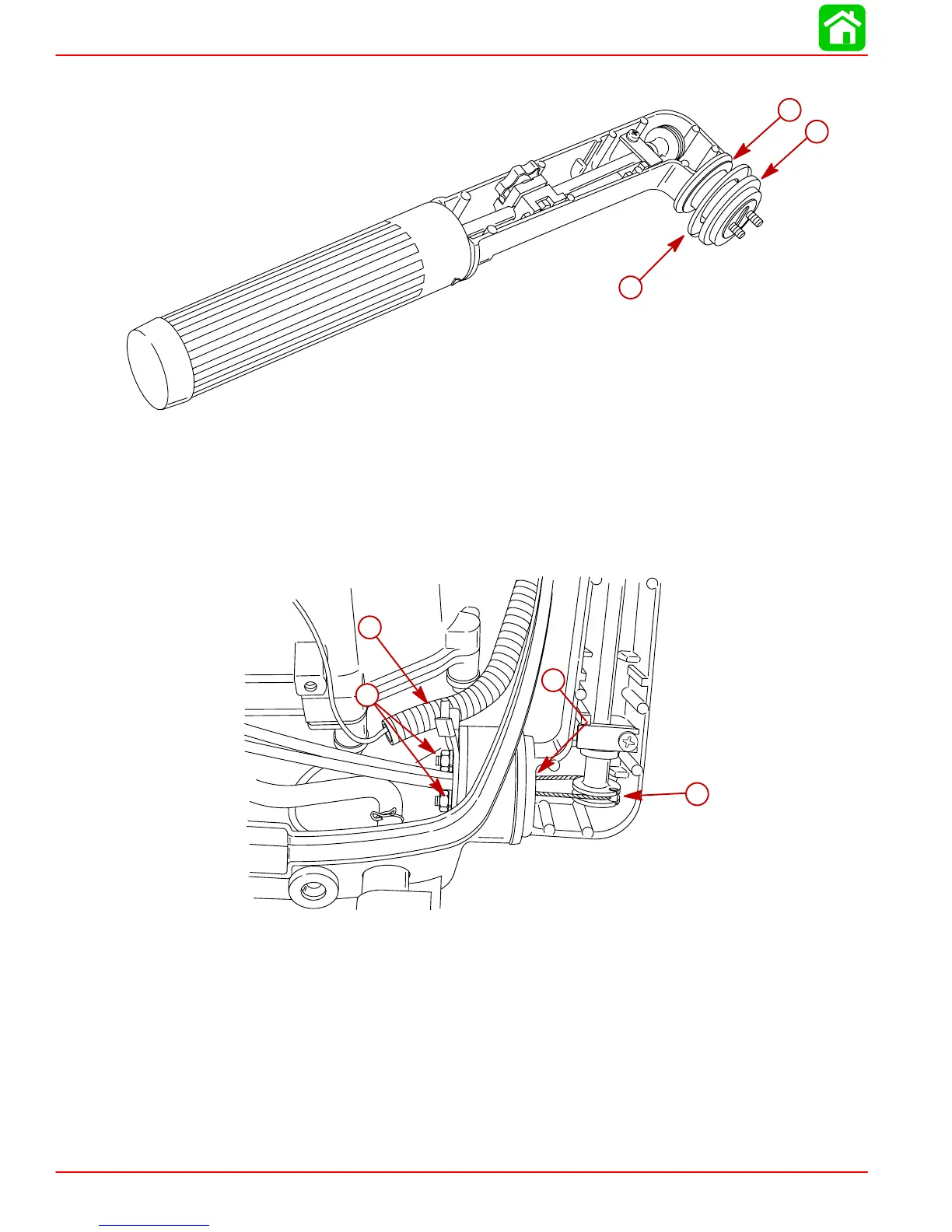

3. Install nylon washer, spacer and outer bushing onto tiller handle.
57502
a
b
c
a-Nylon Washer
b-Spacer
c-Outer Bushing
4. Connect throttle cables to cable drum in tiller handle and (while keeping throttle cables
in their respective locating pockets) install tiller handle assembly onto bottom cowl. Se-
cure tiller arm with 2 nuts and lockwashers. Torque nuts to 70 lb-in. (8 Nm).
57501
c
b
a
d
a-Cable Drum
b-Locating Pockets (hidden)
c-Nuts and Lockwashers [Torque to 70 lb-in. (8 Nm)]
d-Verify wire harness is clear of retainer plate stop when tiller handle is tilted up
