IGNITION SYSTEM
Page 2A-8 90-857138R1 MAY 2000

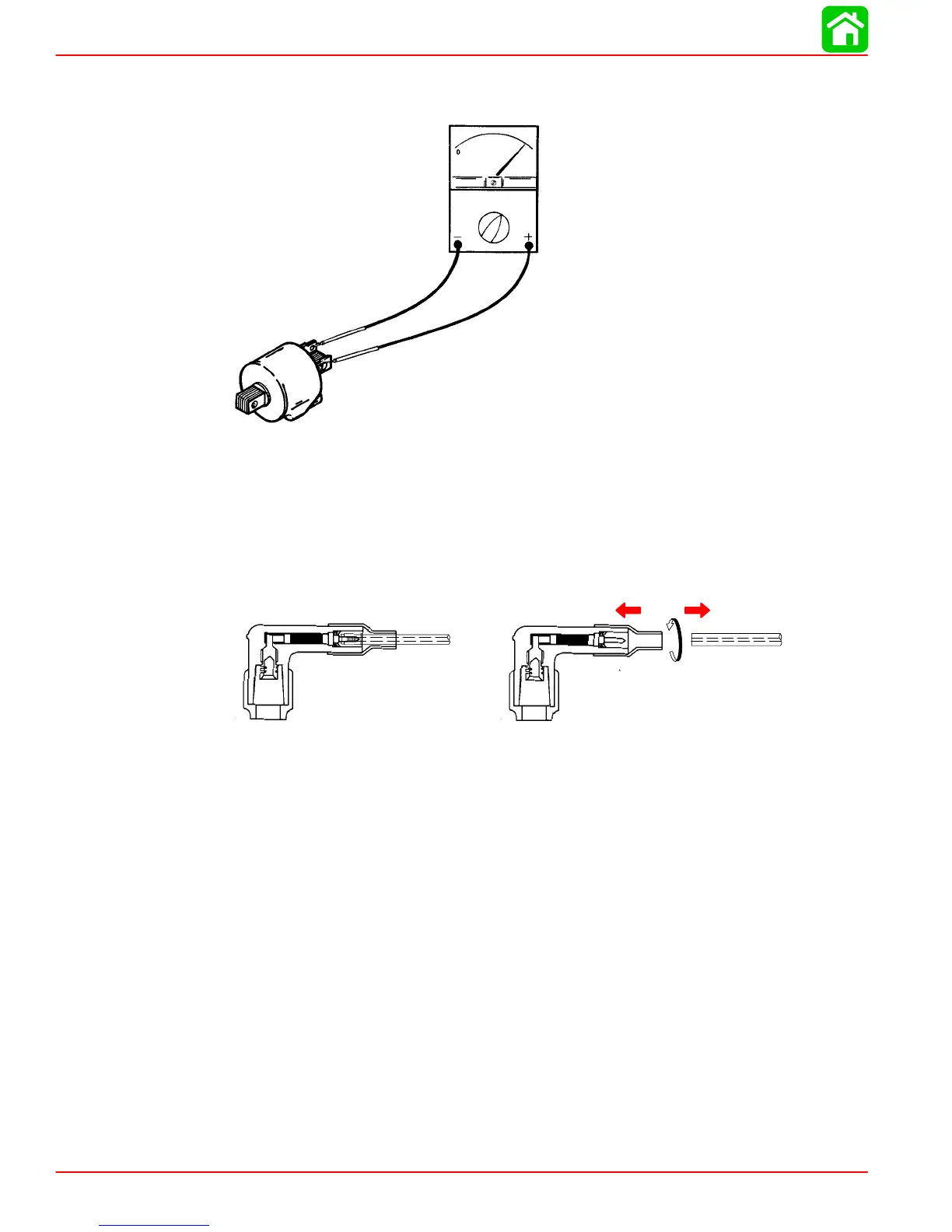

B. RESISTANCE TEST
1. Use an ohmmeter to perform the following primary winding test.
0.02-0.38Ω
2. Use an ohmmeter to perform the following secondary winding test.
NOTE: High tension cables must have spark plug cap removed before testing. Cap contains
5k ohm resistor.
IMPORTANT: To remove spark plug cap from high tension leads, turn cap counter-
clockwise while applying slight outward pressure. DO NOT PULL HARD or lead may
be damaged. To install cap, turn cap clockwise threading cap onto high tension lead.
55852
