IGNITION SYSTEM
90-857138R1 MAY 2000 Page 2A-13

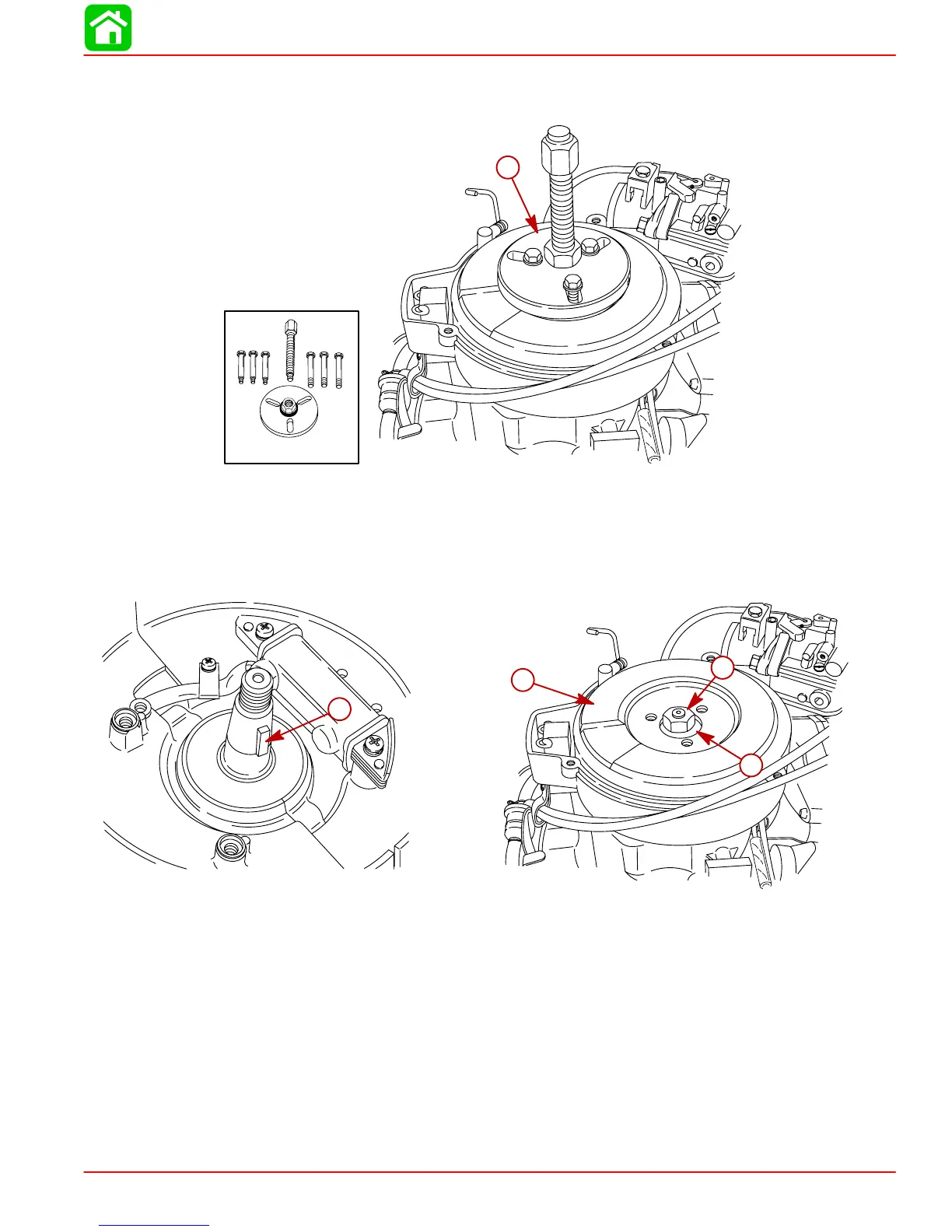

3. Use puller to pull flywheel.
4. Remove puller, flywheel nut, washer, flywheel and key.
91-83164M
57524
a
a-Puller
INSTALLATION
1. Install flywheel key.
2. Install flywheel, washer and nut onto end of crankshaft.
a
56280
57522
b
c
d
a-Flywheel Key
b-Flywheel
c-Washer
d-Nut
