Mercury Optimax 150 User Manual

WIRING DIAGRAMS
90-855347R1 JANUARY 1999 Page 2D-21
ENGINE OVER-SPEED PROTECTION SYSTEM
a
a

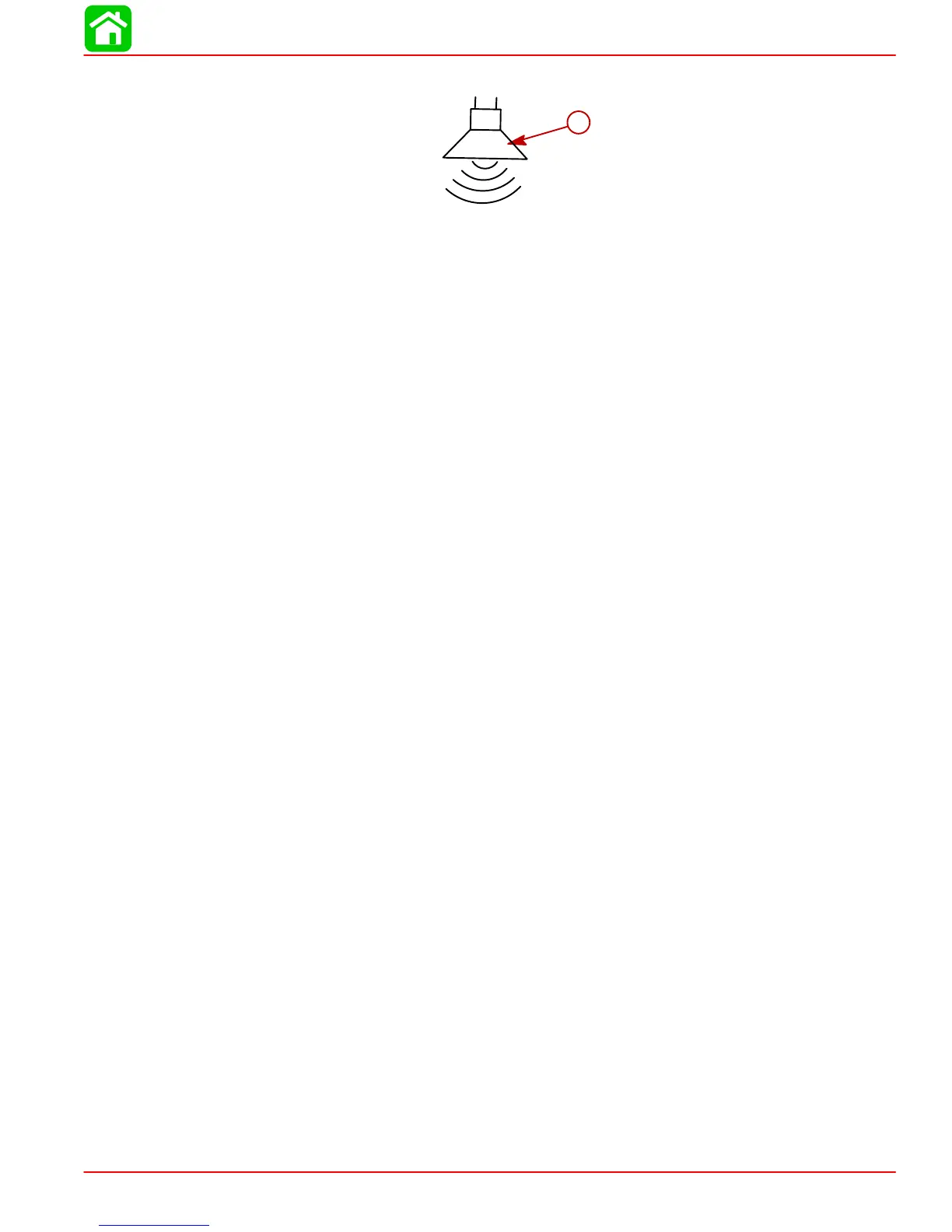

The system is activated when the engine speed exceeds the maximum allowable RPM.
Anytime the engine over-speed system is activated, the warning horn (a) begins to sound
continuously. The system will automatically reduce the engine speed to within the allow-
able limit.
NOTE: Engine speed should never reach the maximum limit to activate the system unless
the propeller is ventilating, an incorrect propeller is being used, or the propeller is faulty.

Mercury Optimax 150 Specifications

General

Horsepower	150 HP
Engine Type	V6
Alternator Output	60 amp / 756 watt
Starting	Electric
Steering	Remote
Displacement	2.5 L
Fuel Induction System	2-Stage Direct Fuel Injection (DFI)
Shaft Length	20", 25"
Dry Weight	431 lbs (20 in), 439 lbs (25 in)
