POWER TRIM
Page 5B-44 90-855347R1 JANUARY 1999
Reassembly
IMPORTANT: Components must be clean. Any debris in power trim system can
cause system to malfunction.

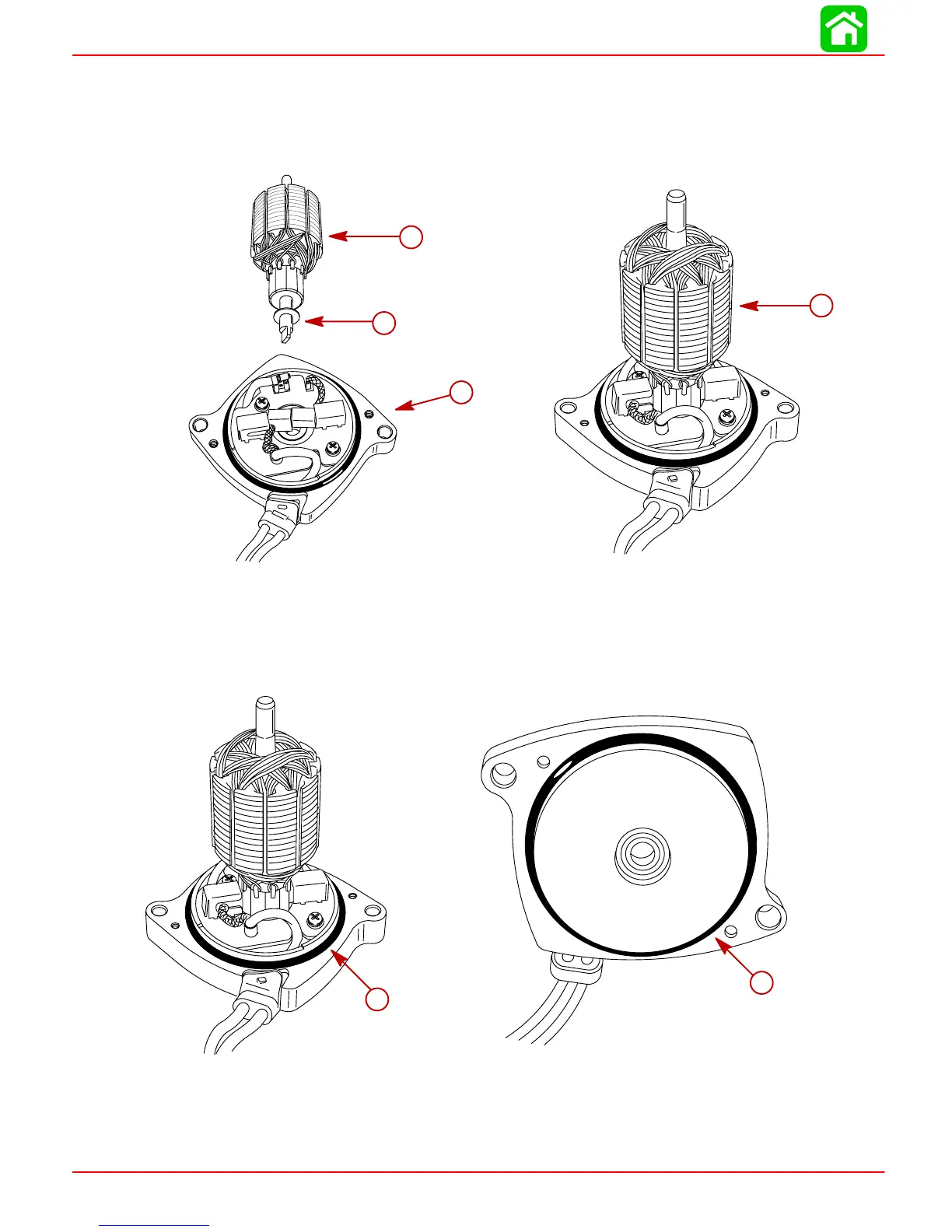

1. Install armature into end cap/brush card assembly.
53779
53784
a
b
c
d
a-Armature
b-Shim
c-End Cap Assembly
d-Armature (Spread brushes to install armature into end cap)
2. Install O-rings in end cap.
53784
53783
a
a
a-O-rings

Mercury Optimax 150 Specifications

General

Horsepower	150 HP
Engine Type	V6
Alternator Output	60 amp / 756 watt
Starting	Electric
Steering	Remote
Displacement	2.5 L
Fuel Induction System	2-Stage Direct Fuel Injection (DFI)
Shaft Length	20", 25"
Dry Weight	431 lbs (20 in), 439 lbs (25 in)
