OUTBOARD MOTOR INSTALLATION
Page 1D-6 90-855347R1 JANUARY 1999
Electrical, Hoses and Control Cables
IMPORTANT: Warning Horn Requirement – The remote control or key switch as-
sembly must be wired with a warning horn. This warning horn is used with the en-
gine warning system.
Installation Note
Open the front clamp assembly.
Remote Wiring Harness

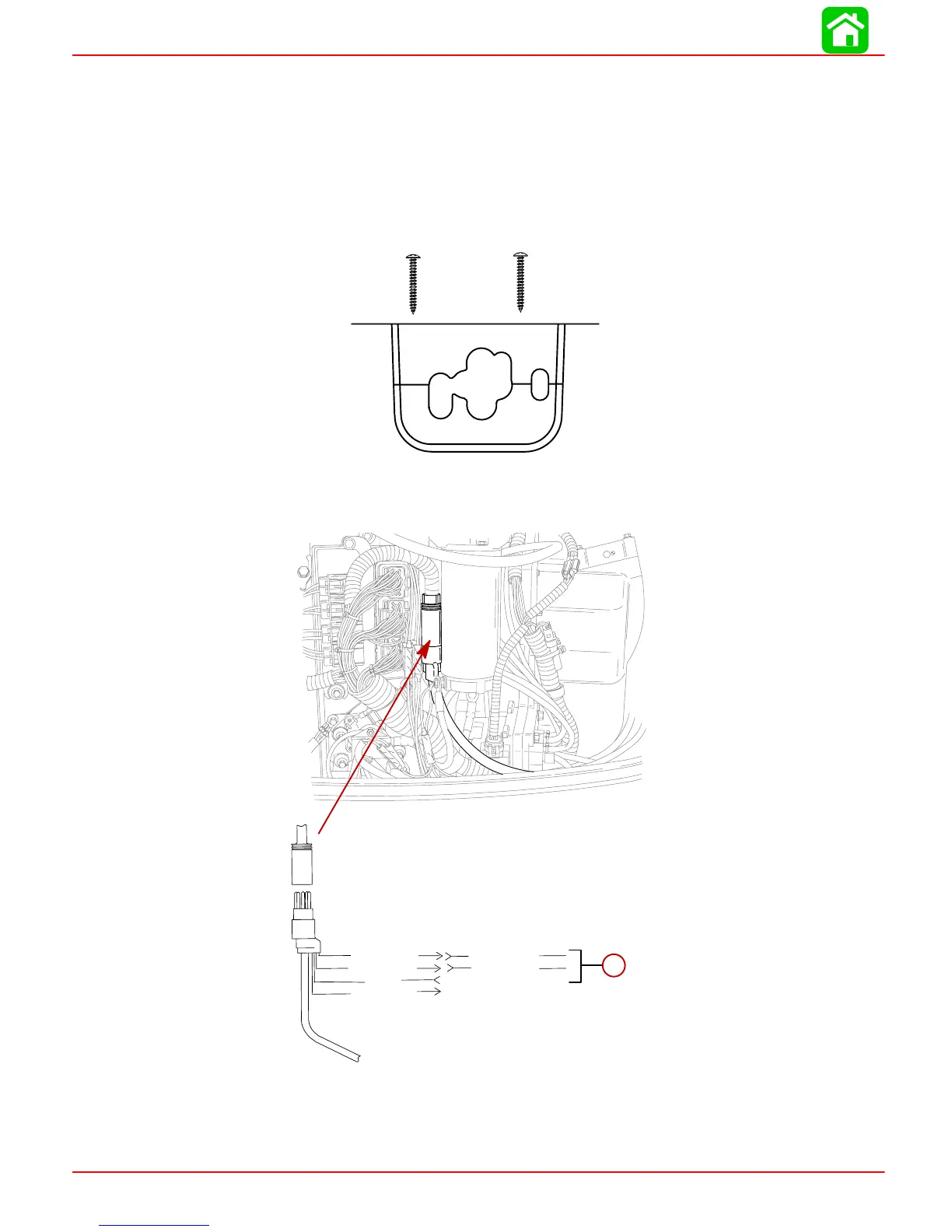

1. Connect wiring. Place harness into the holder.
GRN/WHT
BLU/WHT
BRN/WHT
TAN
BLU/WHT
GRN/WHT
a
a-Power Trim Connections
