Mercury Optimax 150 User Manual

CHARGING & STARTING SYSTEM
Page 2B-12 90-855347R1 JANUARY 1999

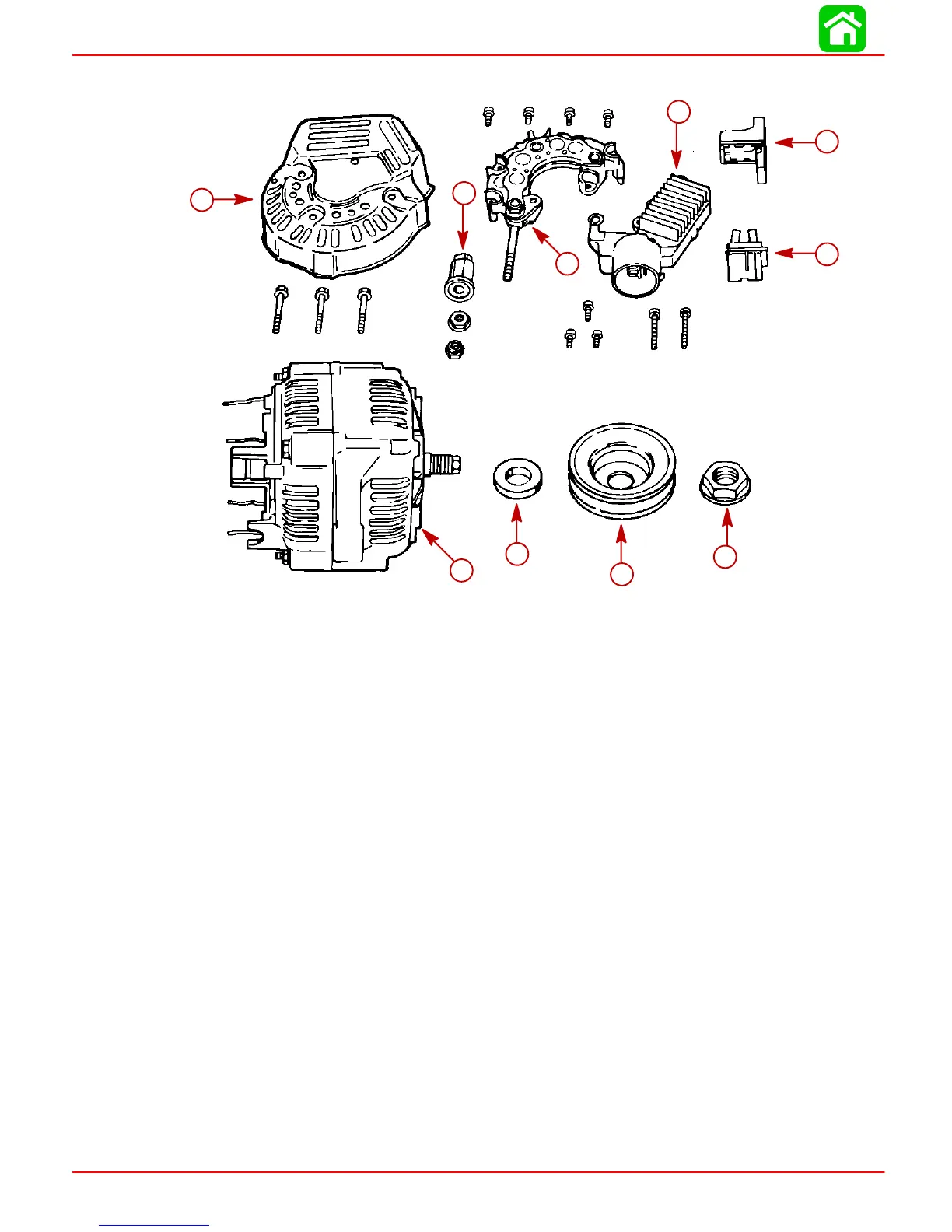

Alternator Assembly
51683
j
i
g
f
e
h
a
b
c
d
a
b
c
d
e
f
g
h
i
j
a-Pulley Nut
b-Pulley
c-Spacer
d-Frame and Rotor Assembly
e-Brush Holder
f-Brush Cover
g-Regulator
h-Rectifier (Diode Assembly)
i-Insulator
j-End Cover

Mercury Optimax 150 Specifications

General

Horsepower	150 HP
Engine Type	V6
Alternator Output	60 amp / 756 watt
Starting	Electric
Steering	Remote
Displacement	2.5 L
Fuel Induction System	2-Stage Direct Fuel Injection (DFI)
Shaft Length	20", 25"
Dry Weight	431 lbs (20 in), 439 lbs (25 in)
