Mercury Optimax 150 User Manual

POWERHEAD
90-855347R1 JANUARY 1999 Page 4A-15

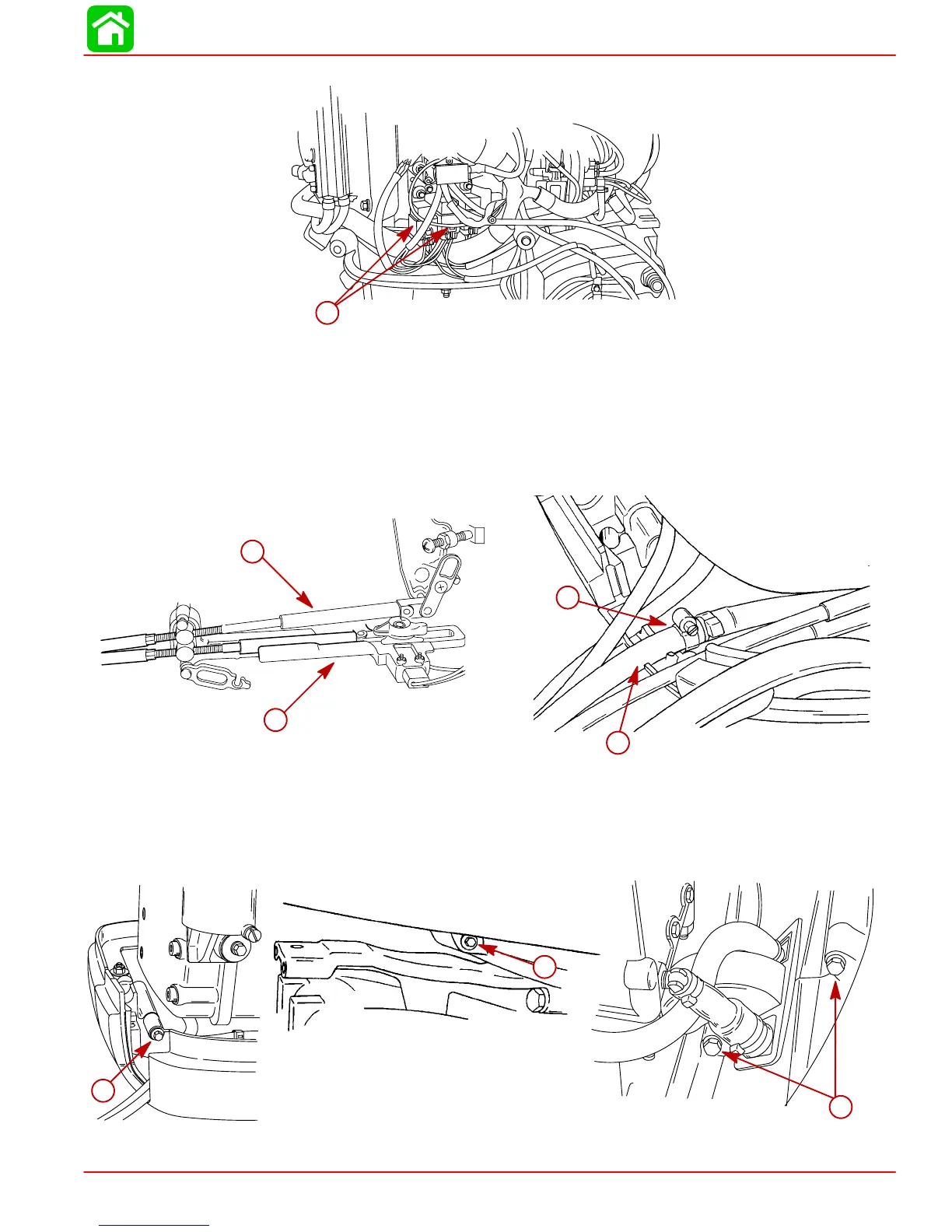

9. Remove BLUE and GREEN trim harness leads from trim solenoids.
a
a-Trim Solenoids
10. Slide outboard shift lever into neutral position.
11. Remove throttle cable.
12. Remove locknut that secures shift cable latch assembly and remove latch, flat wash-
er, nylon wear plate, spring and shift cable from control cable anchor bracket.
13. Disconnect input fuel line.
c
a
b
d
a-Throttle Cable
b-Shift Cable
c-Hose Clamp
d-Fuel Line
14. Remove 4 bolts securing bottom cowl halves and remove bottom cowling.
55970
52352
55932
a
a
a
a-Bolt

Mercury Optimax 150 Specifications

General

Horsepower	150 HP
Engine Type	V6
Alternator Output	60 amp / 756 watt
Starting	Electric
Steering	Remote
Displacement	2.5 L
Fuel Induction System	2-Stage Direct Fuel Injection (DFI)
Shaft Length	20", 25"
Dry Weight	431 lbs (20 in), 439 lbs (25 in)
