POWERHEAD
Page 4A-18 90-855347R1 JANUARY 1999

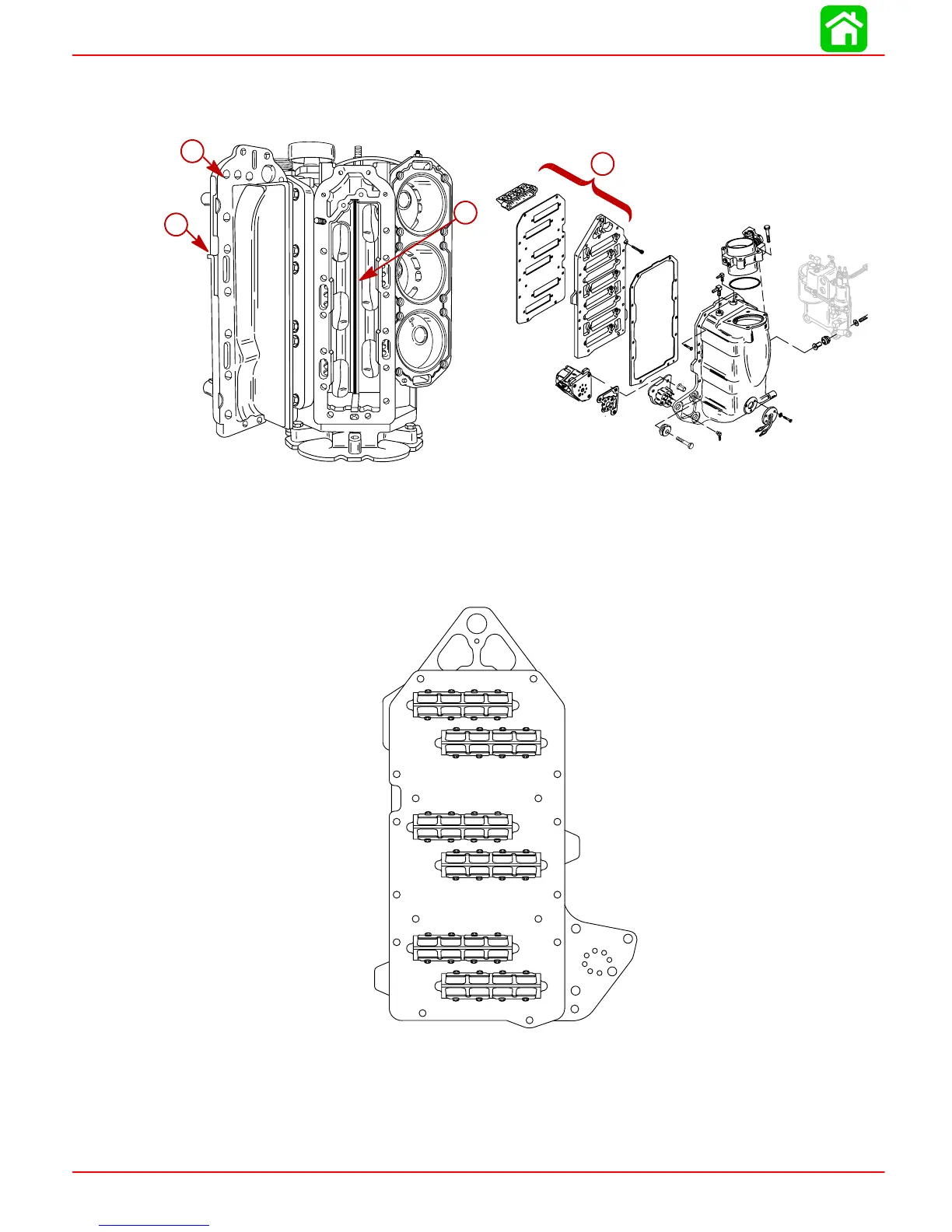

4. Remove exhaust manifold cover and seal.
5. Referring to Section 3B, remove air plenum/reed block/adaptor plate assembly from
cylinder block.
d
56166
a
c
b
a-Exhaust Manifold Cover
b-Seal
c-Gasket
d-Reed Block/Adaptor Plate Assembly
6. Inspect reeds as outlined in “Cleaning and Inspection”.
56169
7. Remove bolts from end caps.

Mercury Optimax 150 Specifications

General

Horsepower	150 HP
Engine Type	V6
Alternator Output	60 amp / 756 watt
Starting	Electric
Steering	Remote
Displacement	2.5 L
Fuel Induction System	2-Stage Direct Fuel Injection (DFI)
Shaft Length	20", 25"
Dry Weight	431 lbs (20 in), 439 lbs (25 in)
