90-855347R1 JANUARY 1999 Page 4A-57
15. Reconnect warning gauge harness.
1
2
3
4
5
6
a
c
b
d
a
c
b
d
f
e
a-TAN/BLACK
b-TAN/WHITE
c-PINK/LT. BLUE to PINK/LT. BLUE
d-ORANGE
e-Sta-Straps
f-Connect PURPLE to 12 Volt Source or Adjacent Gauge
IMPORTANT: Sufficient slack must exist in engine wiring harness, battery cables,
fuel hose, and oil hoses routed between clamp and engine attachment point, to re-
lieve stress and prevent hoses from being kinked or pinched.

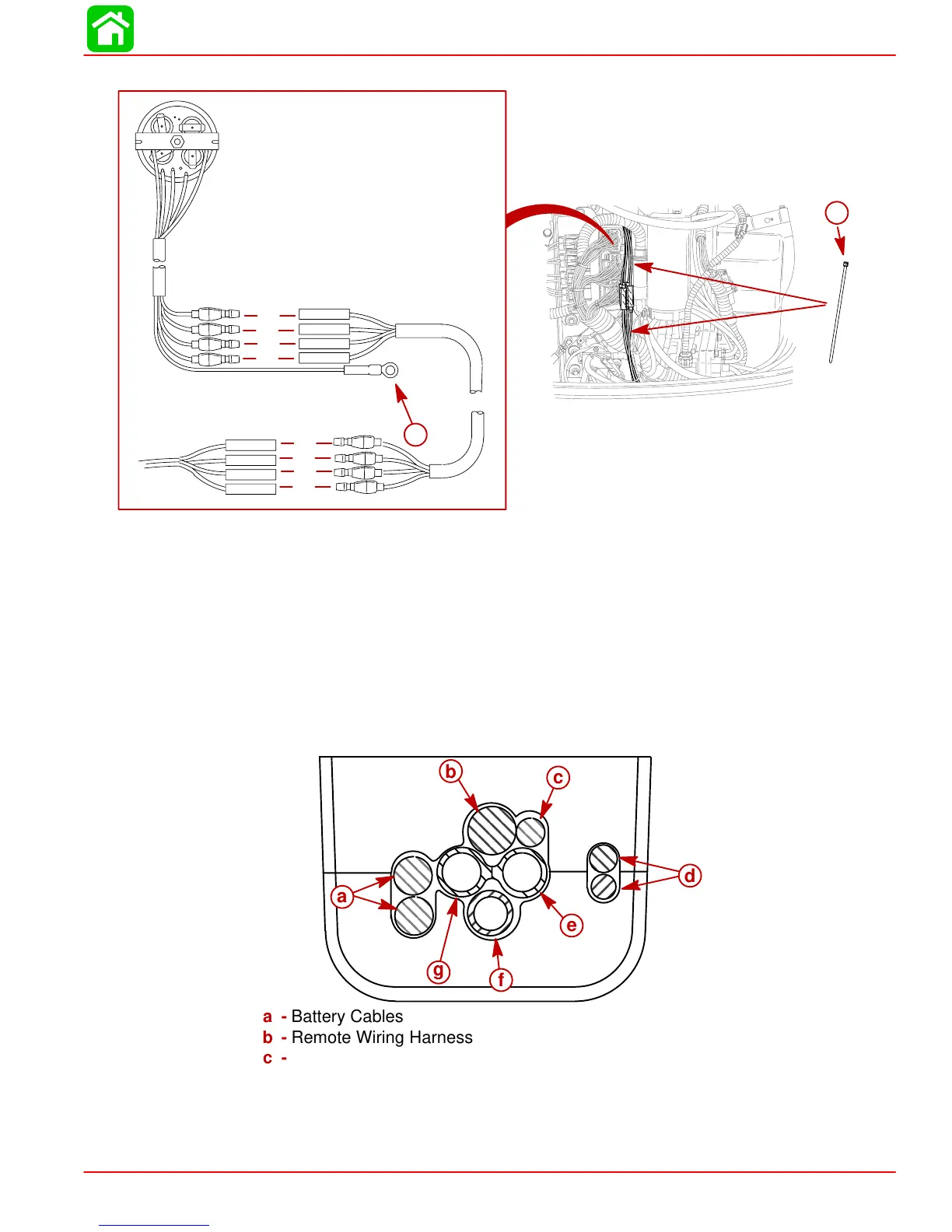

1. Place the clamp over the wiring, hoses, and control cables as shown.
ÇÇÇ
ÇÇÇ
ÇÇÇ
ÉÉÉ
ÉÉÉ
ÉÉÉ
ÇÇÇ
ÇÇÇ
ÇÇÇ
ÇÇÇ
ÇÇÇ
ÇÇÇ
ÇÇ
ÇÇ
ÉÉ
ÉÉ
ÇÇ
ÇÇ
a
b
c
d
e
f
g
a-Battery Cables
b-Remote Wiring Harness
c-Warning Gauge Wiring Harness
d-Control Cables
e-Oil Hose with Blue Stripe
f-Fuel Hose
g-Oil Hose
