POWER TRIM
90-855347R1 JANUARY 1999 Page 5B-33

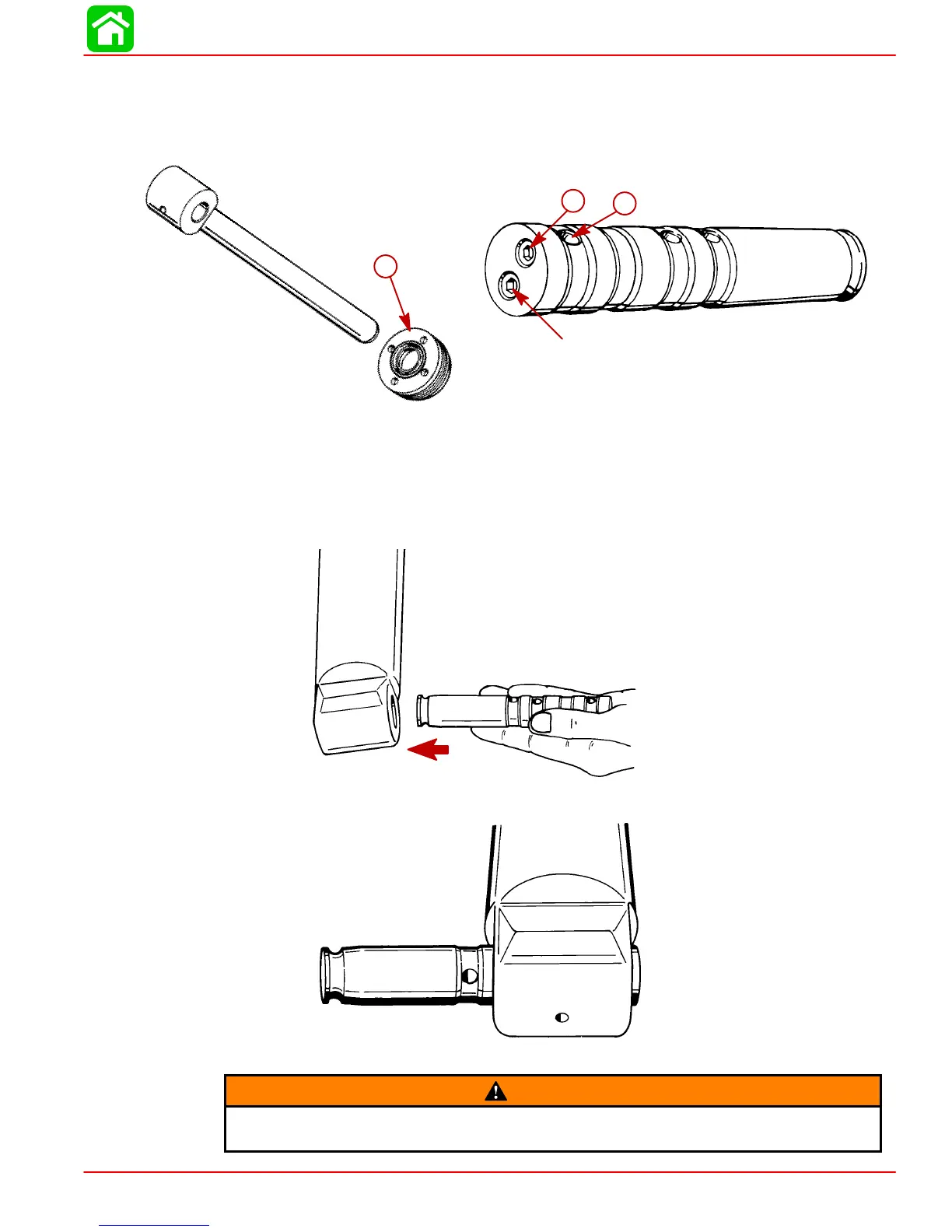

4. Remove end cap from tilt rod.
5. Remove allen plug.
IMPORTANT: Remove plug from same side as holes in shaft.
51361
DO NOT REMOVE
51376
a
b
c
a-End Cap
b-Allen Plug
c-Hole In Shaft
6. Lubricate shaft with Quicksilver Power Trim and Steering Fluid. Insert shaft into
cylinder.
51342
7. Tap shaft into cylinder until shaft is positioned as shown.
51365
WARNING
Memory Piston Cup may be expelled at a high velocity when air pressure is
applied. Failure to place cylinder as shown below could result in personal injury.

Mercury Optimax 150 Specifications

General

Horsepower	150 HP
Engine Type	V6
Alternator Output	60 amp / 756 watt
Starting	Electric
Steering	Remote
Displacement	2.5 L
Fuel Induction System	2-Stage Direct Fuel Injection (DFI)
Shaft Length	20", 25"
Dry Weight	431 lbs (20 in), 439 lbs (25 in)
