Mercusys ME10 User Manual

13
Chapter 3 Customize Your Network

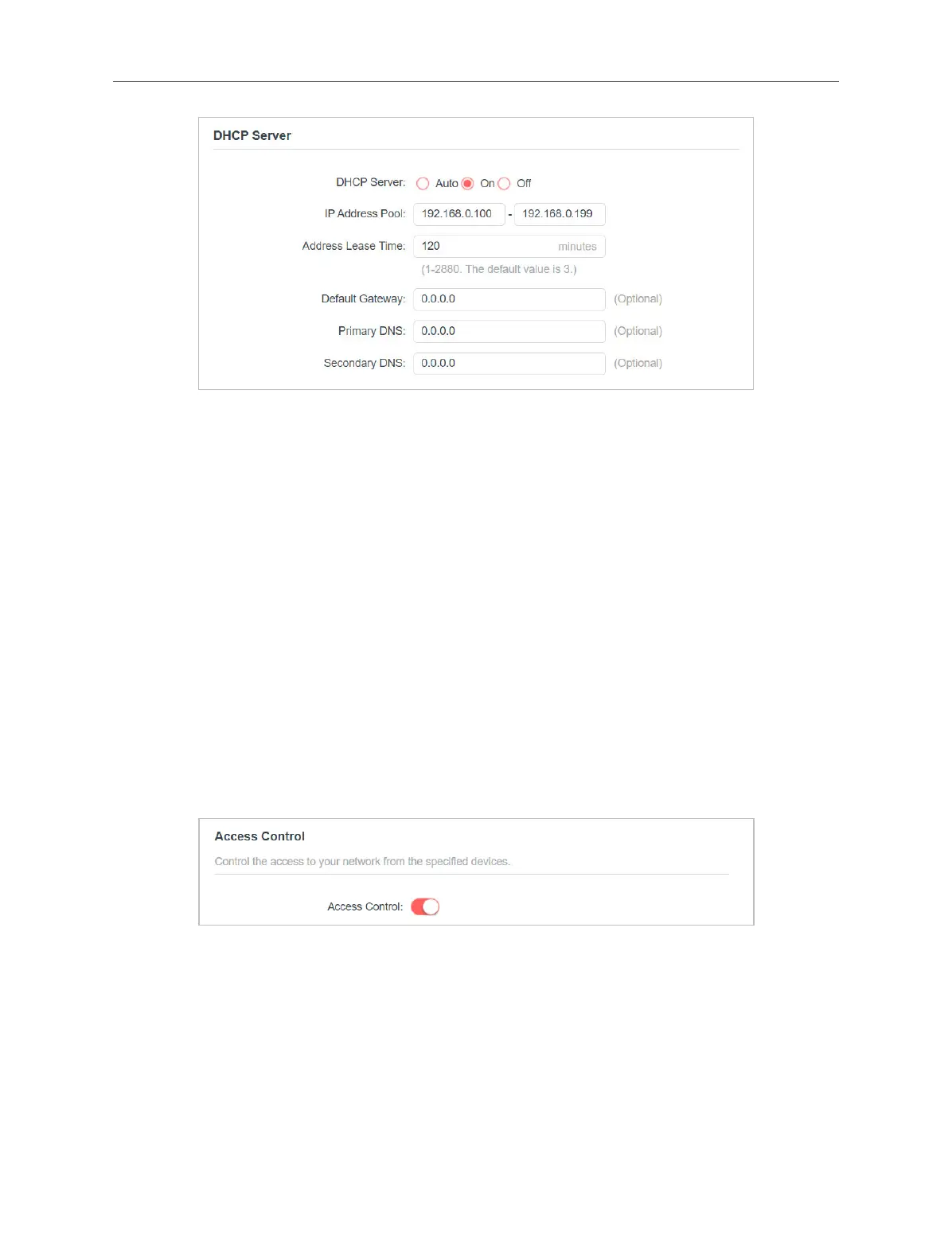

1. Select On to enable the DHCP Server of the extender.
2. Enter the starting and ending IP addresses in the IP Address Pool.
3. Enter other parameters if the ISP offers. The Default Gateway is automatically
lled in and is the same as the LAN IP address of the router.
4. Click SAVE.
3.5 Set Access Control
Access Control allows you to permit or block specic devices from accessing the
internet for a specic period.
1. Visit http://mwlogin.net and log in with the password you set for the extender.
2. Go to Settings > Advanced Settings > Access Control.
3. Enable Access Control.
• To block specic device(s):
Note:
Devices connected to the extender via an Ethernet cable cannot be blocked.
1. Select Blacklist and click Add.

Mercusys ME10 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports	1
Product color	White
Power consumption (typical)	3.2 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	36 mm
Width	60 mm
Height	101 mm
