Mercusys ME10 User Manual

24
Chapter 5 Manage the Extender

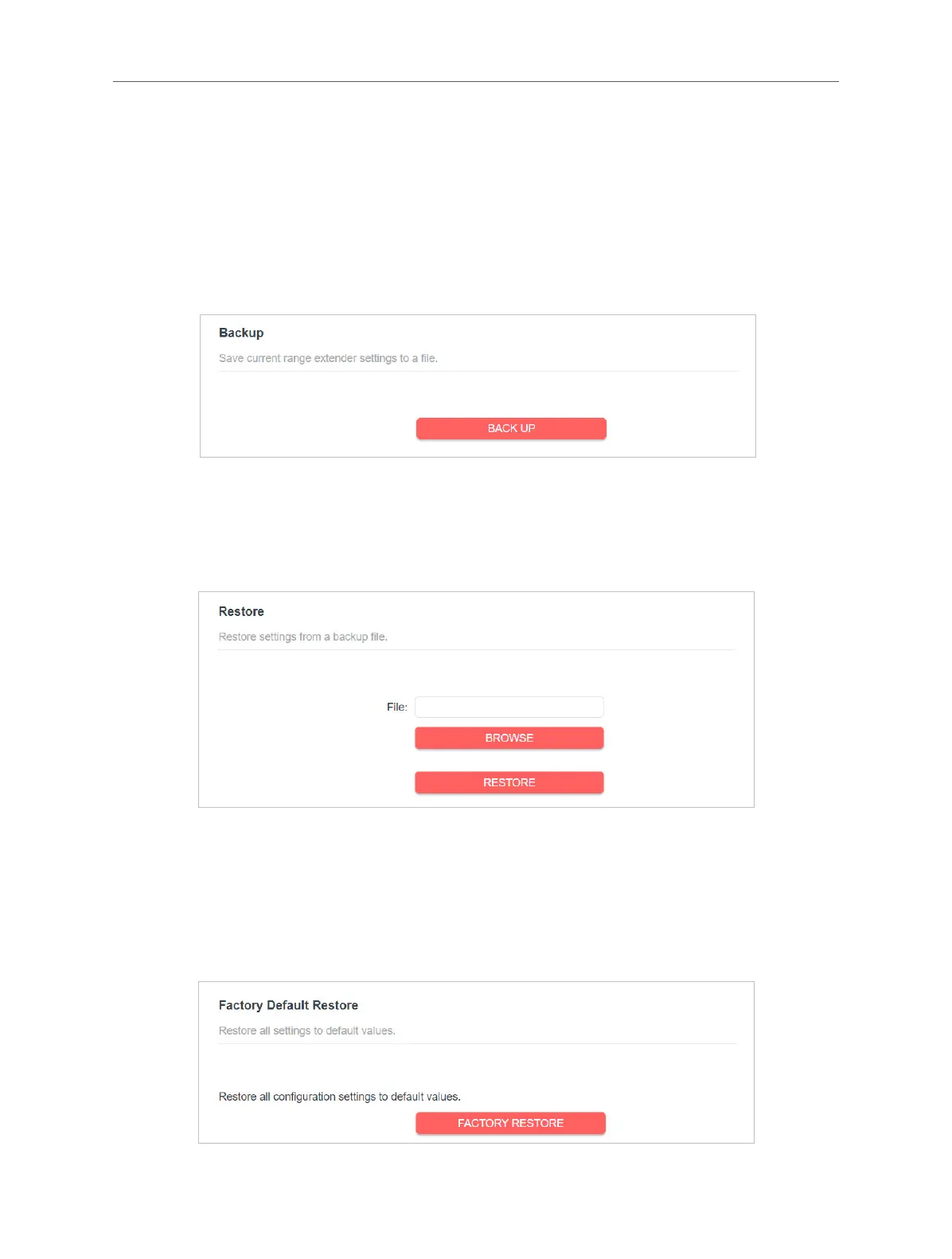

1. Visit http://mwlogin.net, and log in with the password you set for the extender.
2. Go to Settings > System Tools > Backup & Restore.
• To back up conguration settings:
Click BACK UP to save a copy of the current settings to your local computer. A ‘.bin’
le of the current settings will be stored on your computer.
• To restore previous settings from a saved le:
1. Click BROWSE to locate the backup configuration file stored on your computer,
and click RESTORE.
2. Wait a few minutes for the restore and reboot.
Note: During the restore process, do not power o or reset the extender.
• To reset the extender to factory default settings:
1. Click FACTORY RESTORE to reset the extender.

Mercusys ME10 Specifications

General

Type	Network repeater
WPS push button	Yes
Ethernet LAN data rates	10, 100 Mbit/s
Maximum transfer distance	- m
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Security algorithms	WPA-PSK, WPA2-PSK
Ethernet LAN (RJ-45) ports	1
Product color	White
Power consumption (typical)	3.2 W
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	36 mm
Width	60 mm
Height	101 mm
