Mercusys MW300RE User Manual

Manage the Extender17

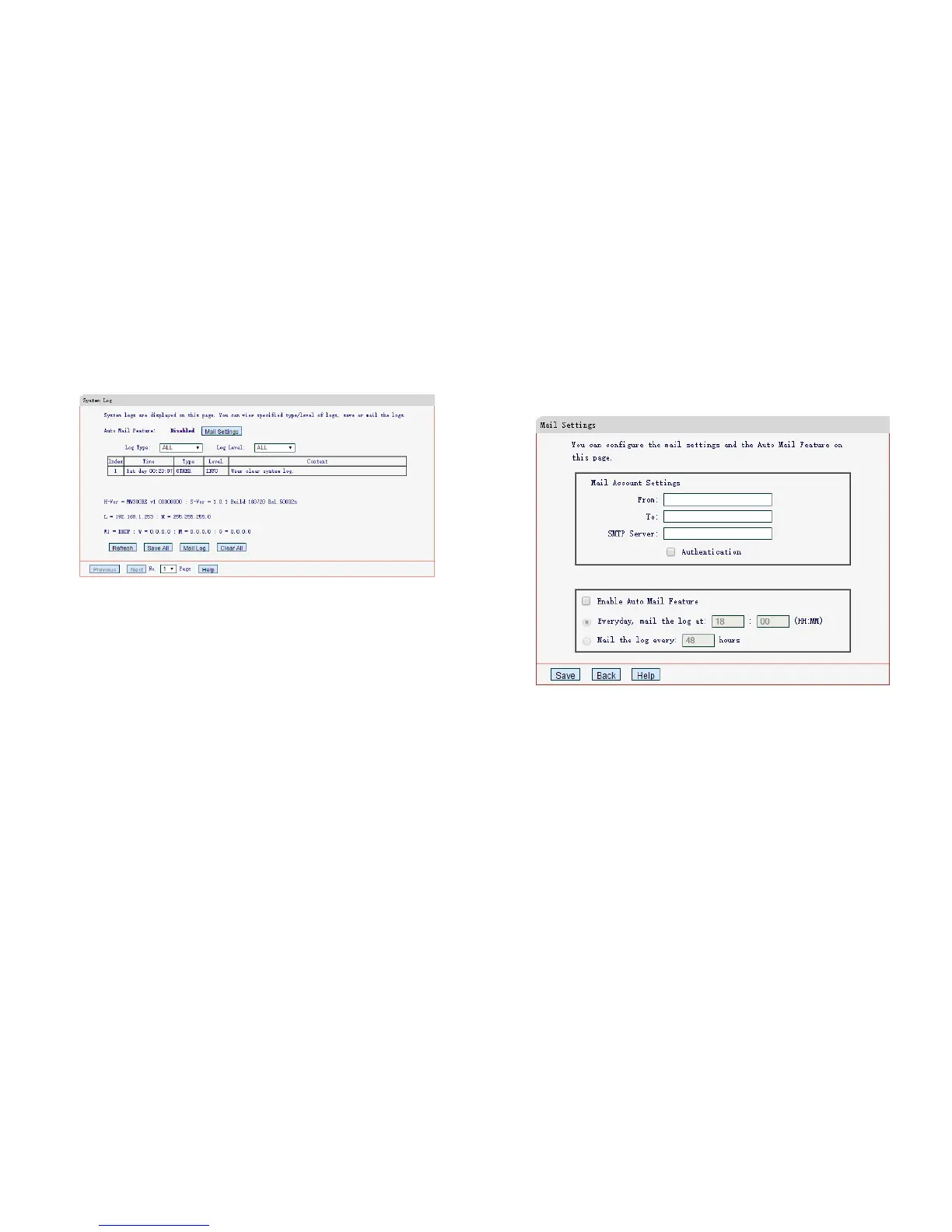

 Refresh - Click to update the system log.
 Save All - Click to save the system log as a .txt file on your
computer.
 Mail Log - Click to send an email of current logs manually according
to your Mail settings.
 Clear All - Click to permanently remove all logs.
Click Mail Settings to set the parameters for Auto Mail Feature.
 From - Your mail box address. The extender would connect it to send
logs.
 To - Recipient’s address. The destination mailbox where the logs
would be received.
 SM TP Se rver - Your smtp server. It corresponds with the mailbox filled
in the From field. You can log on the relevant mail website for Help if
you are not clear with the address.
 Authentication - Most SMTP Server requires Authentication. It is

Mercusys MW300RE Specifications

General

Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Certification	CE
Product color	White
LED indicators	Yes
Sustainability certificates	RoHS
Antenna type	External
Antennas quantity	3
Wi-Fi band	Single-band (2.4 GHz)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	WPA, WPA-PSK, WPA2, WPA2-PSK
Wi-Fi data rate (max)	300 Mbit/s
Power consumption (max)	4.3 W
Power consumption (typical)	3 W
Type	Network repeater
Maximum transfer distance	- m
Package depth	121.5 mm
Package width	150.5 mm
Package weight	250 g
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	74.8 mm
Width	101 mm
Height	75.8 mm
