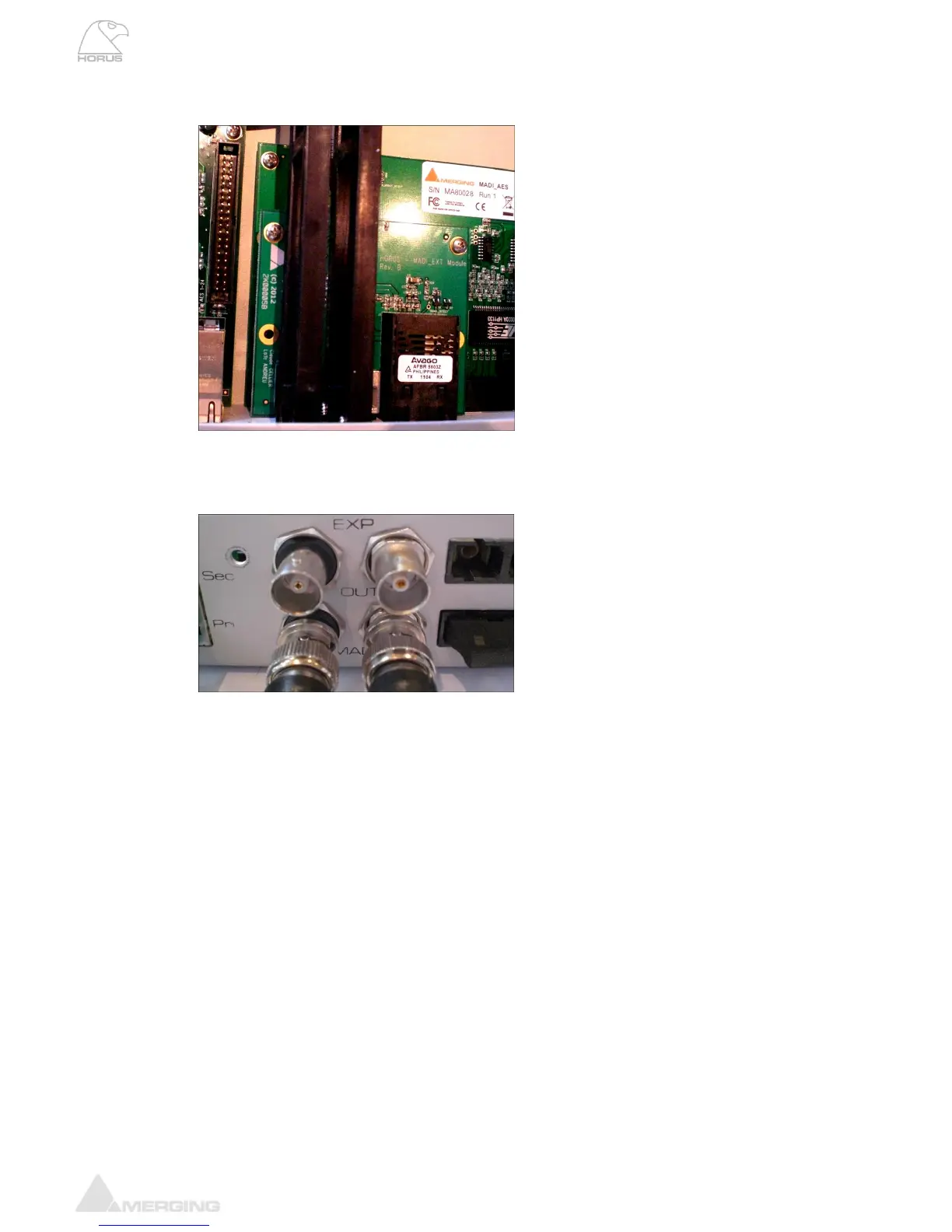

7. Secure the MADI extension using the 2 screws provided
8. Re-connect the Ribbon cable
9. Screw the 2 nuts onto the I/O BNC connectors at the back of the Horus MADI Extension card
10. Replace any modules that were removed earlier to provide access
11. Close the Horus top panel cover and replace the fixing screws
12. Power the HORUS back on and the MADI 2 module will be recognized
