Establishments with standard (Type ‘B’) circuit breakers are
sensitive to ‘surges’ which occur on switching on freezers,
refrigerators and other catering equipment, including
microwave ovens. Because of this, we strongly recommend
that a separate Type ‘C’ circuit breaker (designed specically
for this type of equipment) must be tted. An individual,
suitably rated circuit breaker should be tted for each oven
installed.

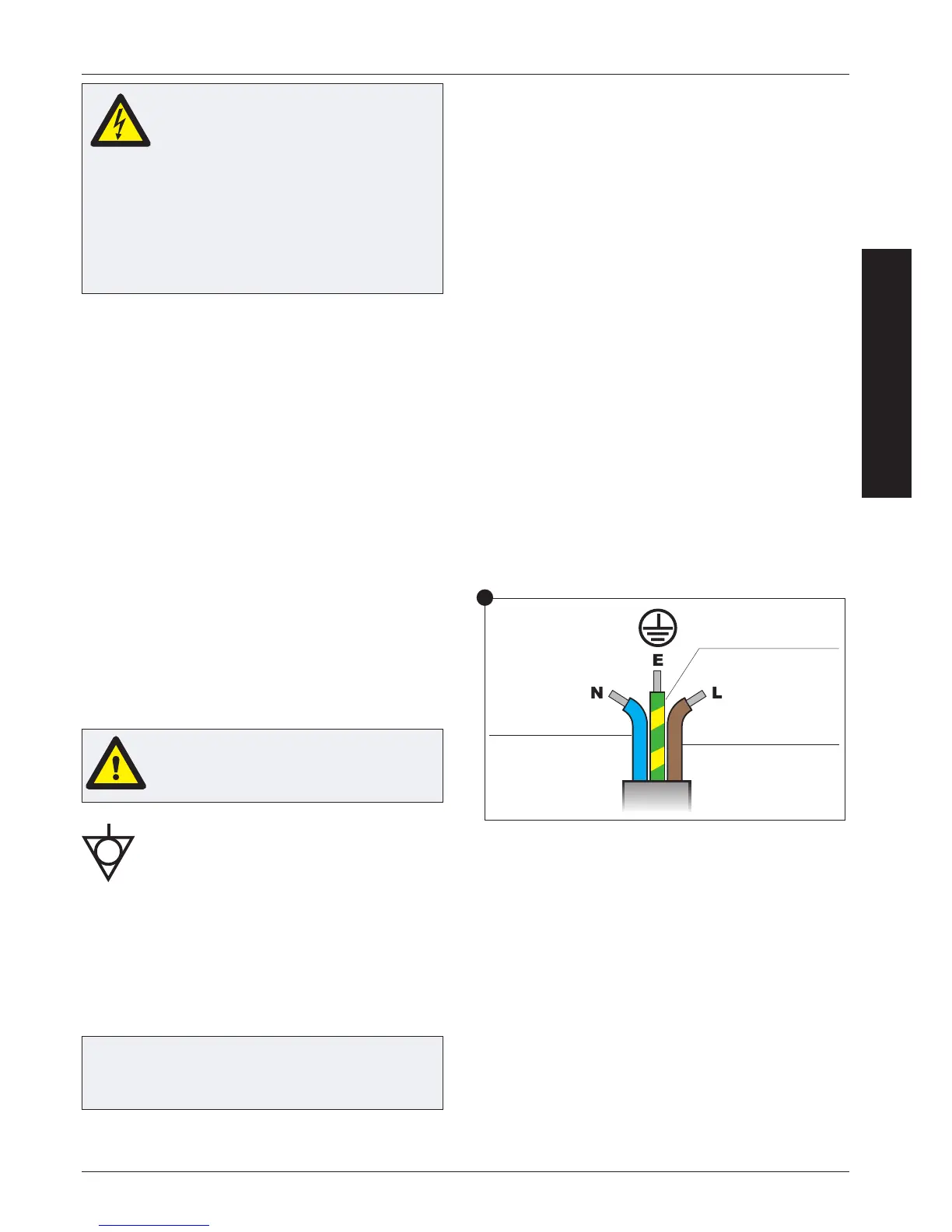

ELECTRICAL INSTALLATION
DANGER!
THIS APPLIANCE MUST BE EARTHED.
FAILURE TO DO SO MAY RESULT IN ELECTRIC
SHOCK AND DEATH.
The oven must be connected to a separate electrical
supply installed by a qualied and approved
electrician.
A suitably rated isolating switch with a 3mm contact
gap on all poles should be tted for each oven
installed.
NOTICE
IF YOU ARE IN ANY DOUBT ABOUT YOUR
ELECTRICAL SUPPLY, SEEK THE ADVICE OF A
QUALIFIED ELECTRICIAN.
WARNING
HIGH LEAKAGE CURRENT -- EARTH
CONNECTION IS ESSENTIAL.
SINGLE PHASE
BLUE (NEUTRAL)
GREEN & YELLOW
(EARTH)
BROWN (LIVE)
This equipment complies with EN61000-3-11, however,
when connecting sensitive equipment to the same supply
as the oven, the user should determine in consultation with
the supply authority, if necessary, that a low impedance
supply is used.
SINGLE PHASE (1)
UK models are tted with a UK 3 Pin 13 amp Plug to IEC
60309 (EN 60309)
The Circuit Breaker should be rated at 25A for 20Amp rated
ovens (Type C).
The Circuit Breaker should be rated at 20A for 13/16Amp
rated ovens (Type C).
EQUIPOTENTIAL
An Equipotential Earth point is provided on
the rear panel of the oven for independent
Earth (GND) connection.
POWER SUPPLY: EARTH LEAKAGE CIRCUIT
BREAKERS
If the oven is connected to an Earth Leakage Circuit Breaker
device, this should allow a minimum of 30 milliamperes
earth current without interrupting the circuit.
