230V
16/32 Amps
230V
Brown
Blue
Earth
Yellow/Green
Grey
DANGER!
THIS APPLIANCE MUST BE EARTHED.
FAILURE TO DO SO MAY RESULT IN
ELECTRIC SHOCK AND DEATH.
The oven must be connected to a separate
electrical supply installed by a qualied and
approved electrician.
A suitably rated isolating switch with a 3mm
contact gap on all poles should be tted for each
oven installed.
WARNING
HIGH LEAKAGE CURRENT.
EQUIPOTENTIAL
An Equipotential Earth point is provided on
the rear panel of the oven for independent
Earth (GND) connection.
Phase Loading
Oven loading per phase is not equal therefore we
recommend that other electrical equipment is
connected to L3 + N.
Circuit Breakers
SINGLE PHASE
Circuit Breakers should be rated at 25A per phase for
20A rated ovens
Circuit Breakers should be rated at 20A per phase for
13/16A rated ovens
and be Time Delay, Motor Start Type (European Type C).
Earth Leakage Circuit:
If the oven is connected to an Earth Leakage Circuit
Breaker device, this should allow a minimum of 30
milliamps earth current without interrupting the circuit.
If you are in any doubt about your electrical supply,
seek the advice of a qualied electrician.

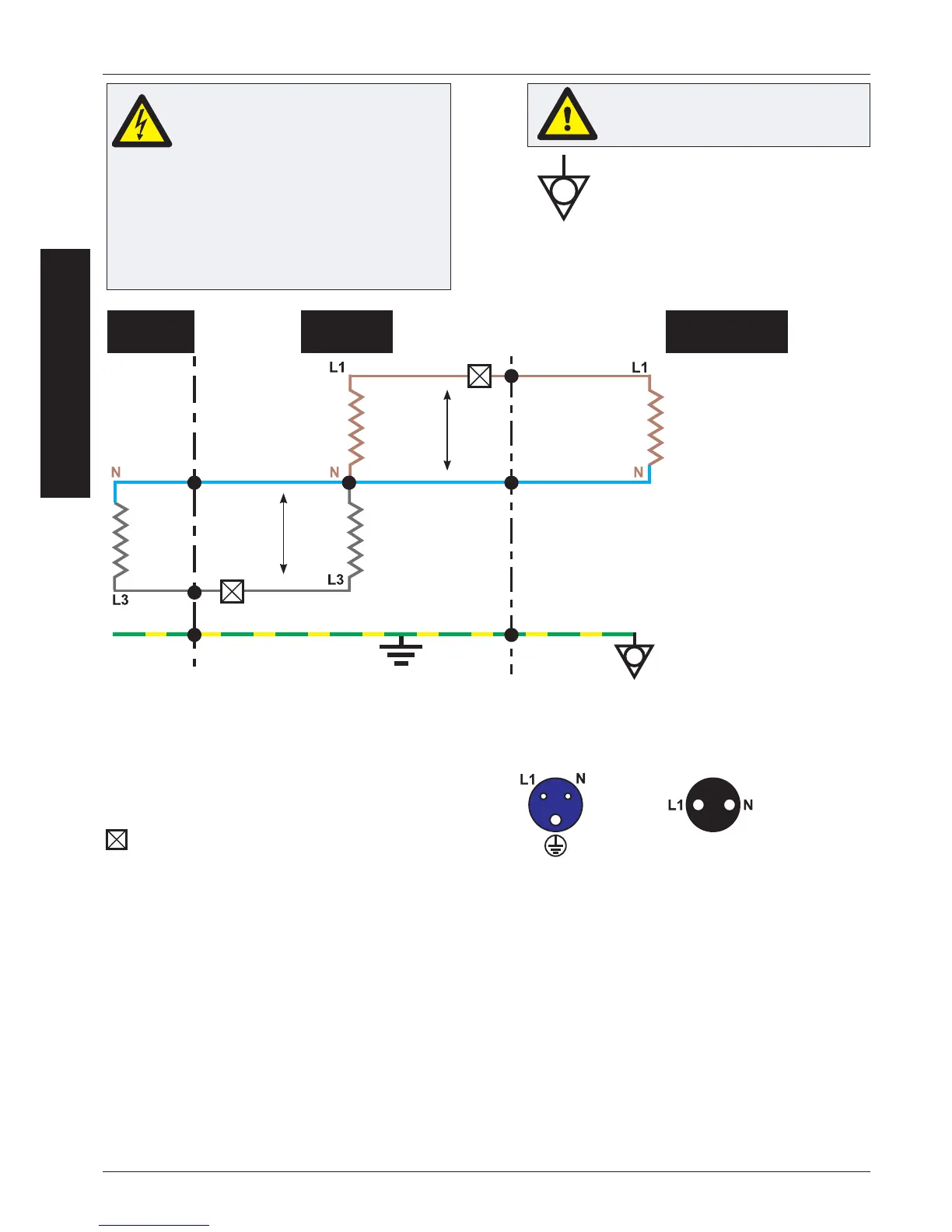

ELECTRICAL INSTALLATION GUIDE
OTHER
EQUIPMENT
ELECTRICAL
SUPPLY
SINGLE PHASE OVEN
LOADING
Earth connection is essential.
Phase Loading Diagram
BLUE
Rear view of plug
Plug Type:
Single Phase
32 Amp
IEC 60309
[EN 60309]
L1+N+E
40 Amp
BLACK
Rear view of plug
Plug Type:
Single Phase
16 Amp
IEC 60309
[EN 60309]
L1+N+E
16 Amp
