Adjusting the Pulse Count
This parameter is required in case that several pulses of the M=Light LED are necessary, e.g. for
PIV measuring.
 Highlight the M=Light LED for which the settings are to be made.
 Select the required number of pulses depending on the incoming trigger signal.
 Press Send.
 You have adjusted the Pulse Count.

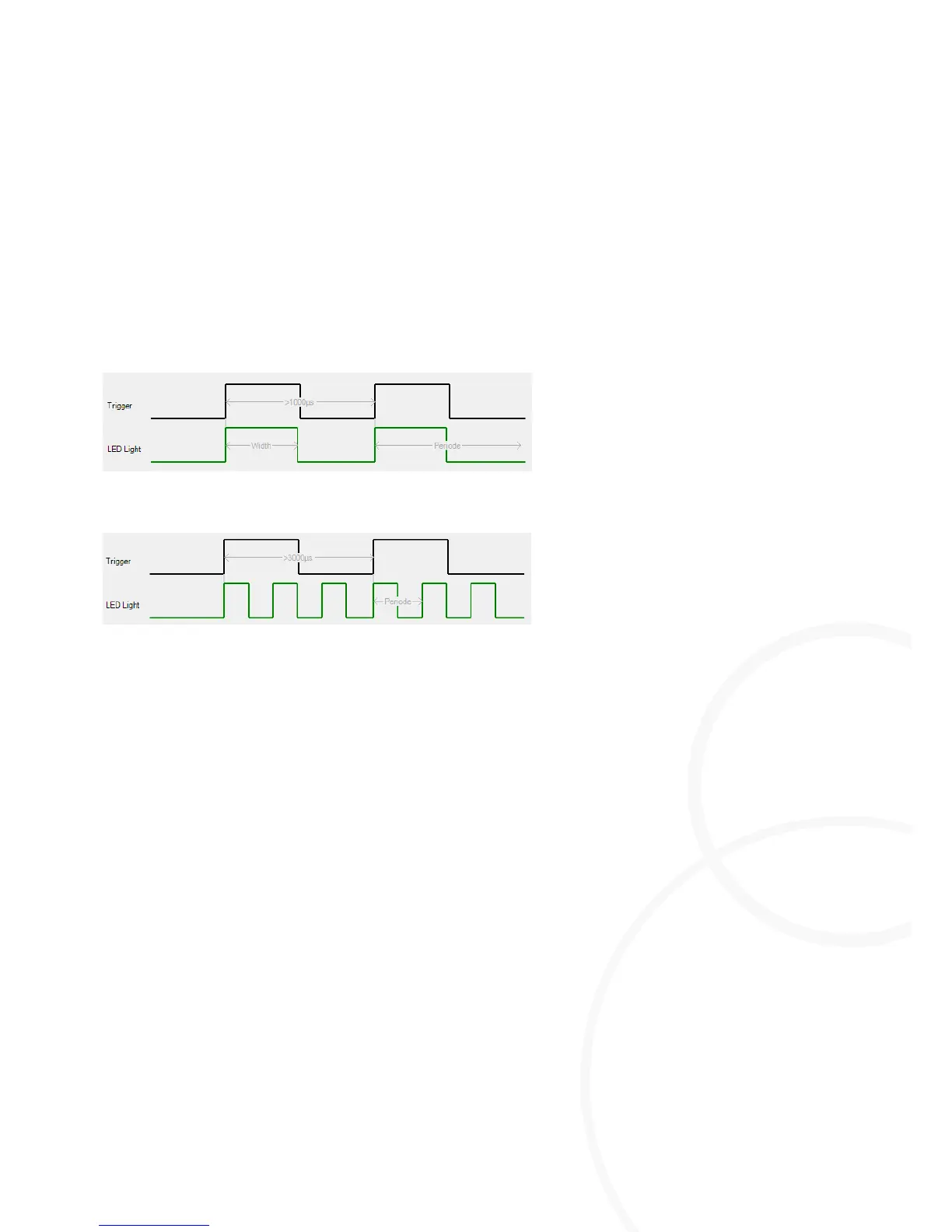

Figure 20: Example, 1 pulse per edge
Figure 21: Example, 3 pulses per edge
