Identification and Correction of Invalid Parameters
If invalid values have been set for a parameter, the corresponding slide control is marked red in the
display. The graphic illustrations for Trigger and LED Light are NOT displayed. The valid parameters
are provided below (Figure 27, page 38).

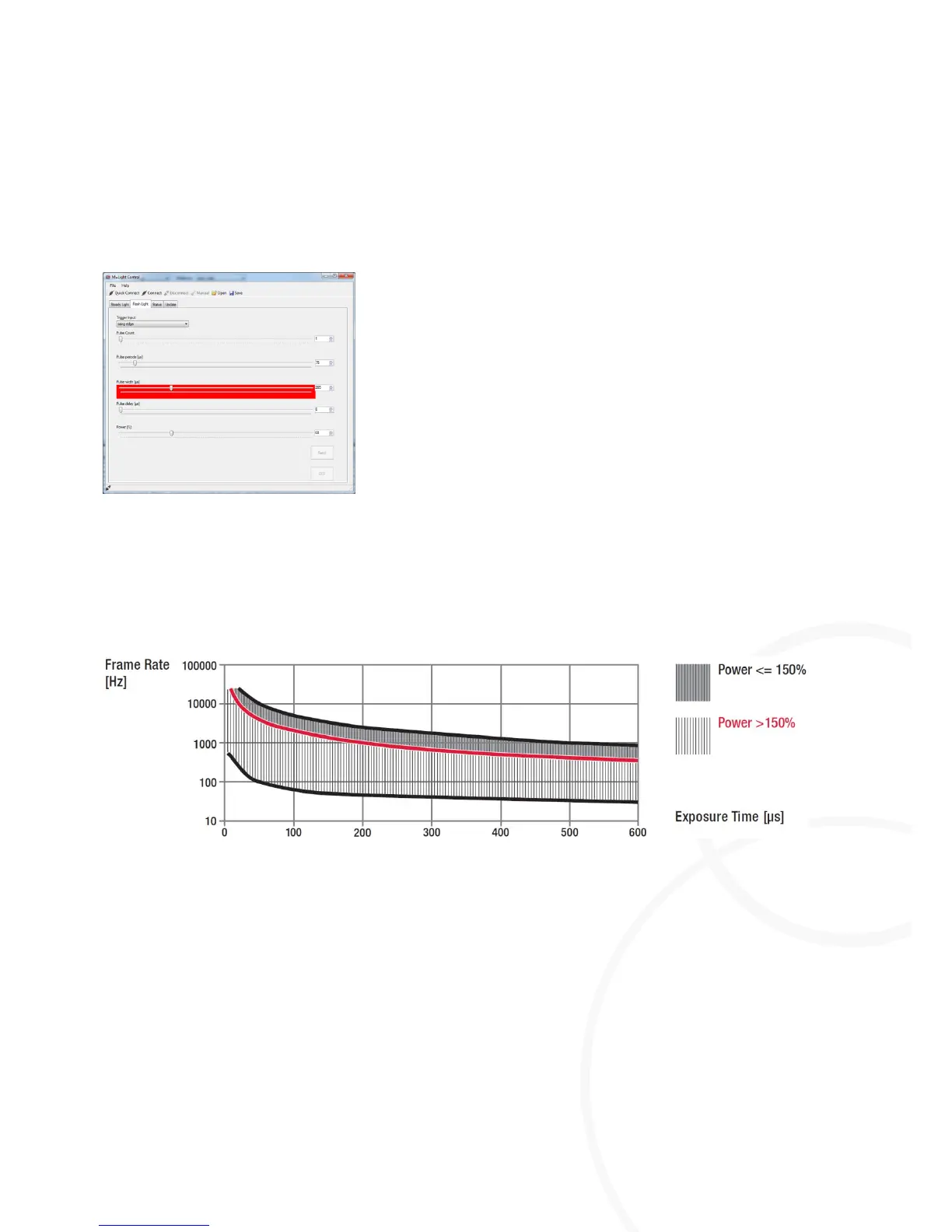

Figure 26: Illustration of invalid parameters
 Push the slide marked red back until the red marking disappears or adjust other parameters so
that the red marking disappears.
 You have successfully parameterized the M=Light.
Figure 27: Admissible parameters
