10
OPERATION MANUAL
3.3 CHECKING THE POWER SUPPLY
METALMASTER machines are supplied wired ready to run. Check the specication plate on the
machine to conrm the correct voltage of the power supply.
e machine must be connected by a qualied and licensed electrician. Warranty could be voided
if it is found that the connection was not carried out by a qualied electrician.
Check the rotation of the motor. e motor needs to rotate clockwise.
If the direction is incorrect, stop the pump, isolate the machine and make changes to the wiring

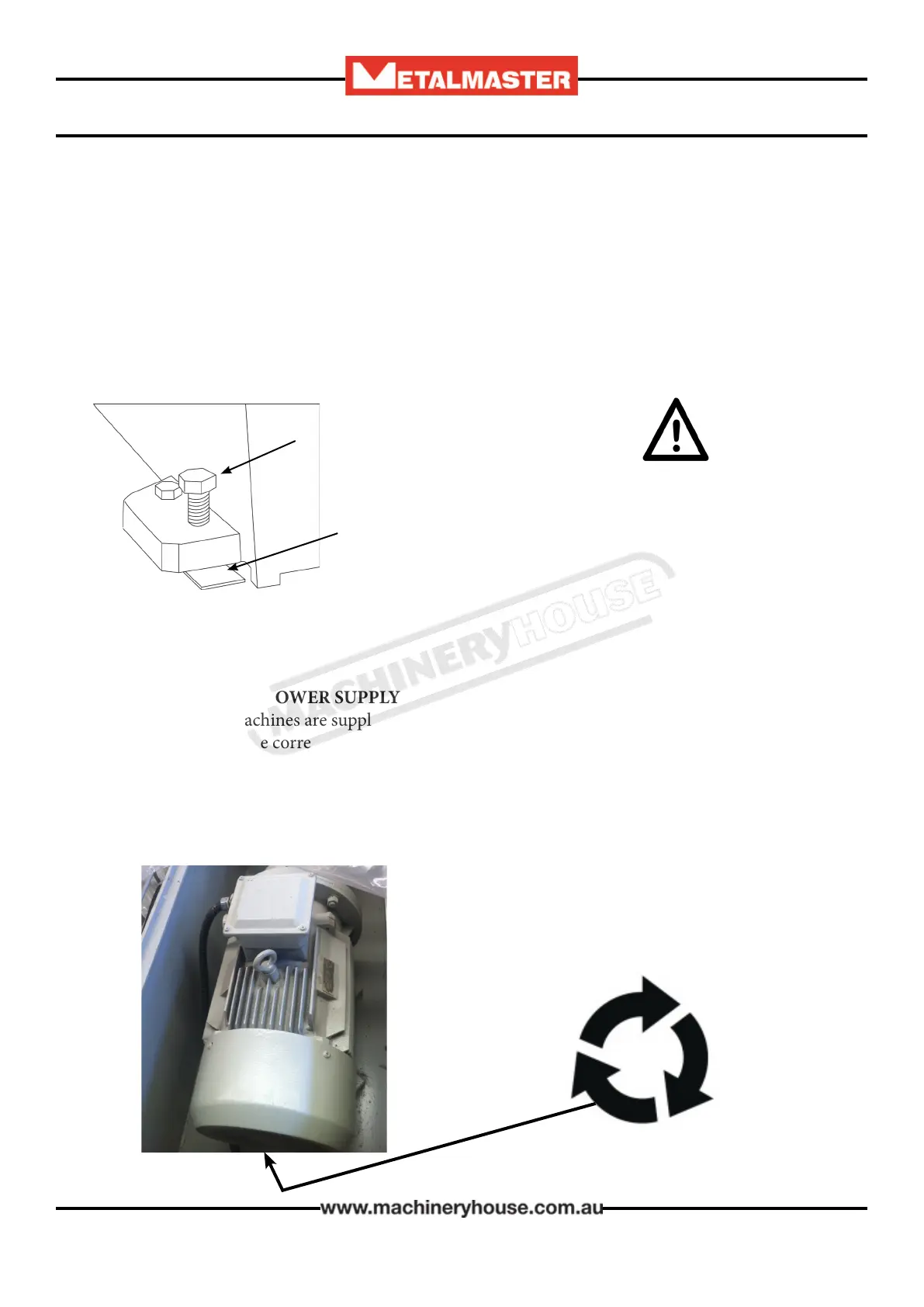

3.2 MACHINE LEVELING
To set your machine up so that it operates to optimum performance, apply the following procedure
Aer your panbrake has been anchored to a concrete slab oor, it then needs to be leveled. e
leveling is performed using each of the screws on each pad.(Fig. 3.1). Loosen the hold down bolts
and place a level on the surface of the working table. Tolerances: 1000:0.30mm, for both axis.
Metal plates need to be placed under each jacking screw to distribute the load. Once level then
tighten the hold down bolts.
Metal Plate
Jacking Screw
e machine must not rest on supports other
than those dened in Fig. 3.1
Fig. 3.1
Instructions Manual for PB-460 (S581B)
