23
OPERATION MANUAL

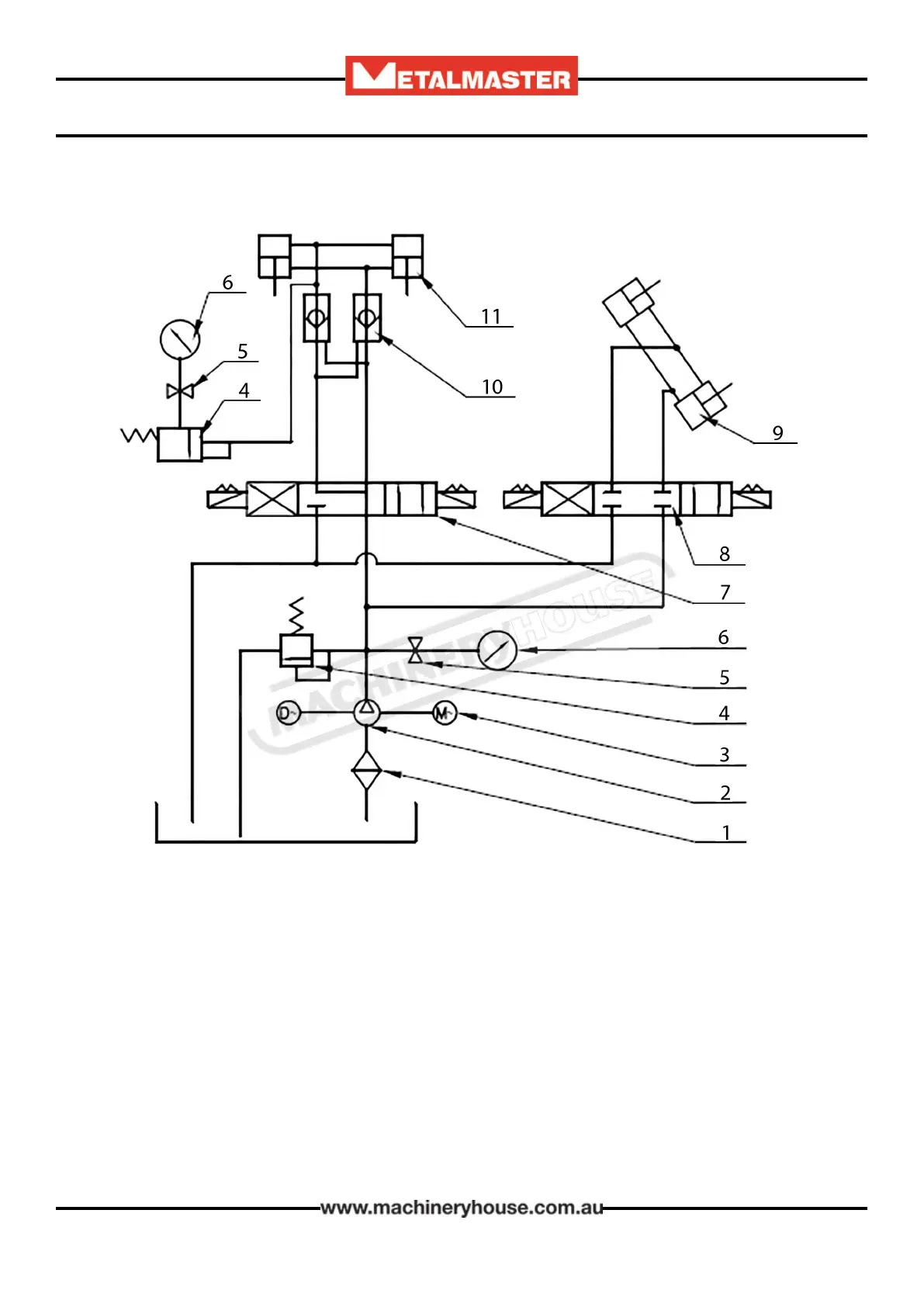

A. HYDRAULIC CIRCUIT DIAGRAM
1. Filter
2. Oil Pump
3. Motor
4. Pressure Regulator Control Valve
5. Shut O Valve
6. Pressure Gauge
7. Drectional Control Valve
8. Drectional Control Valve
9. Apron Cylinder
10. Position One Way Valve
11. Clamp Cylinder
07/11/2019
Instructions Manual for PB-460 (S581B)
23
