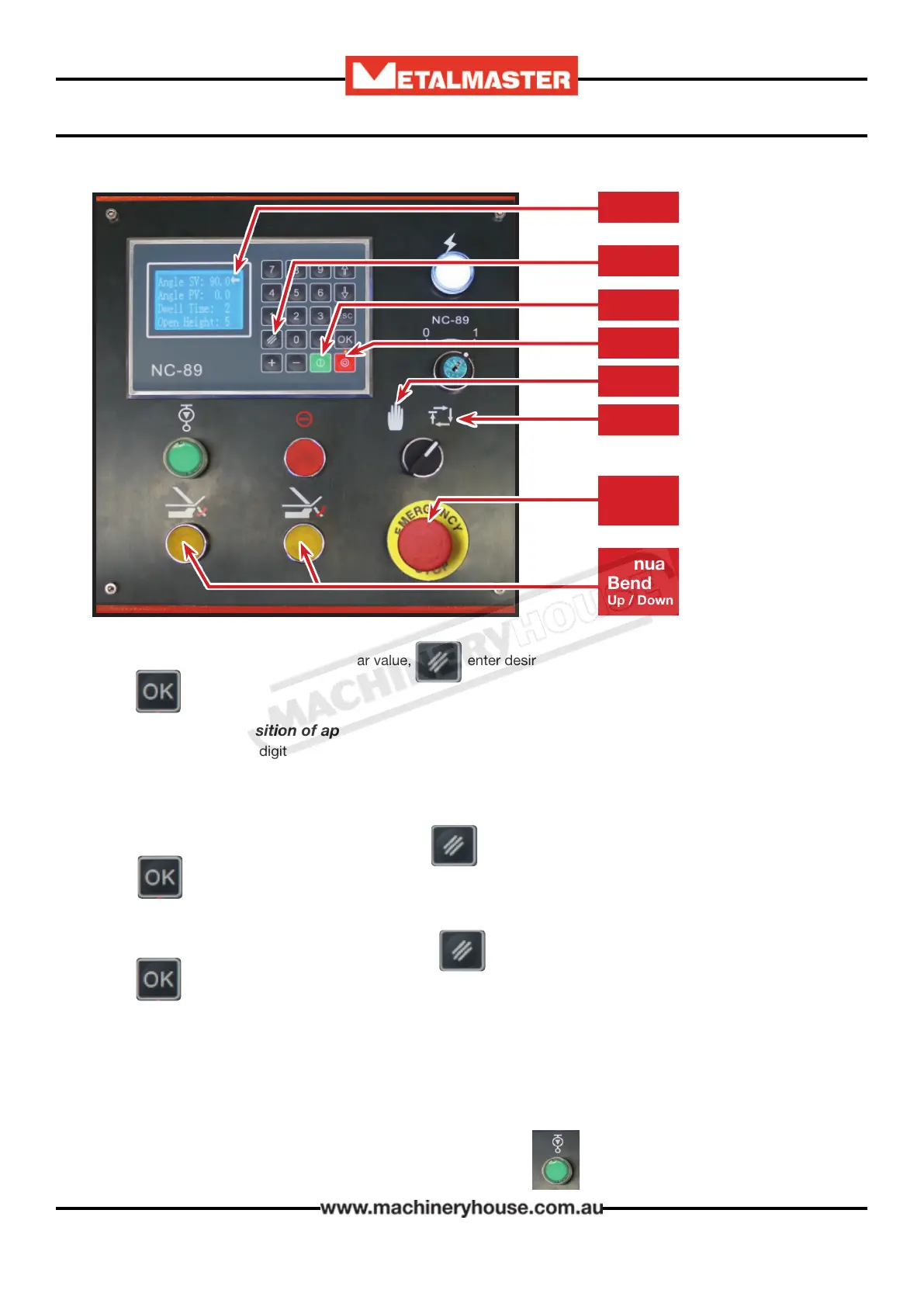

NC-89 Panbrake Controller Operation
Angle SV: Desired programmed angle.
Operation: Move Arrow to Angle SV, clear value, enter desired angle value. Example: 5 = 5º, and
press .
Angle PV: Actual position of apron.
Operation: Angle PV is a digital readout for the apron angle as the apron moves. This is visual only and can
not be modied.
Dwell Time: Desired time apron will dwell after it has reached Angle SV. Auto function only
Operation: Move Arrow to Dwell Time, clear value, enter desired value. Example: 2 = 2 seconds, and
press
.
Open Height: Desired height the clamp opens after apron returns to zero. Auto function only
Operation: Move Arrow to Open Height, clear value, enter desired value. Example: 3 = 3 seconds, and
press.
Manual Bend: Switch mode to manual. Example: Enter 90º in Angle SV. Clamp material and use the Up Manual
Button to bend material. Button can be released at any time and apron will stop. NC-89 with stop apron at 90º.
Release button and bend more/less or return back to 0º and unclamp with foot pedal
.
Auto Bend: Switch mode to Auto. Example: Enter 90º in Angle SV, Enter 2 sec in Dwell Time, Enter 3 sec in Open
Height. Clamp material and press green start button on NC-89. Apron will automatically bend up to 90º, dwell for 2
seconds, return to 0º and then clamp will open for 3 seconds. Job complete.
WARNING: The apron will automatically bend up once the start button is pressed.
Clear
Stop
Start
Manual
Auto
Arrow
Manual
Bend
Up / Down
Emergency
Stop
