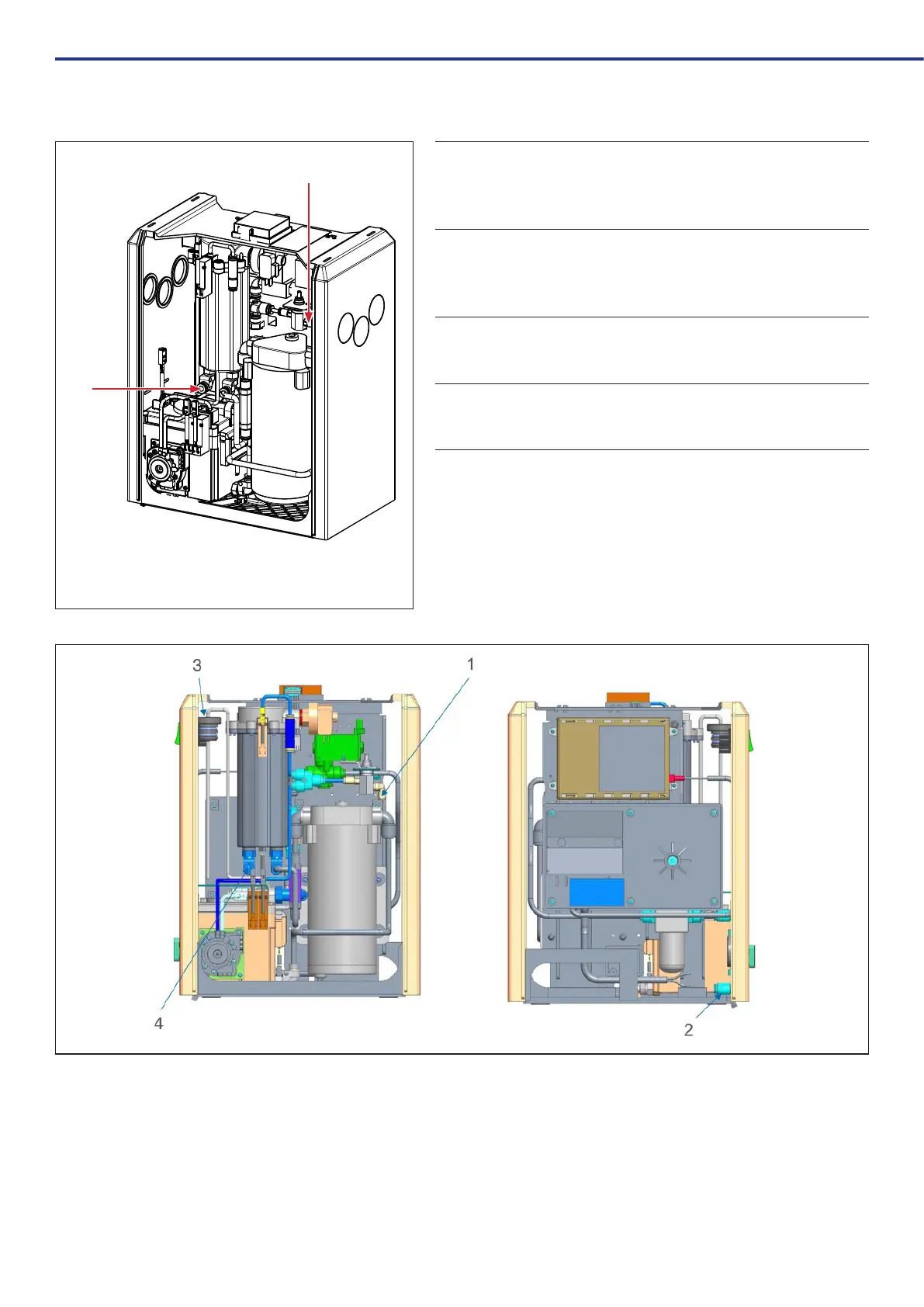

5.2.2. Pipe and hose connections
1
4
1
Compressed air connection
Permissible inlet pressure 3.5 - 8 bar
PUR hose
Inner diameter = 2.5 mm / outer diameter = 4 mm
2
Water connection (fresh water)
Permissible inlet pressure 1-6 bar
PE/PAhose(withKTWapproval)
Inner diameter = 4 mm / outer diameter = 6 mm
3
GREEN&CLEAN WK bottle connection
PVC hose
Inner diameter = 2 mm / outer diameter = 4 mm
4
Water outlet connection (to the consumers)
PUR hose
Inner diameter = 4 mm / outer diameter = 6 mm
5.2.3. Filter / pre-lter
Ifnotalreadyintegratedinthetreatmentunit,apre-lterwithamaximummeshsizeof80µmmustbettedupstreamofthewaterconnectionoftheWEK.
